Component Tests and General Diagnostics

INSPECTION

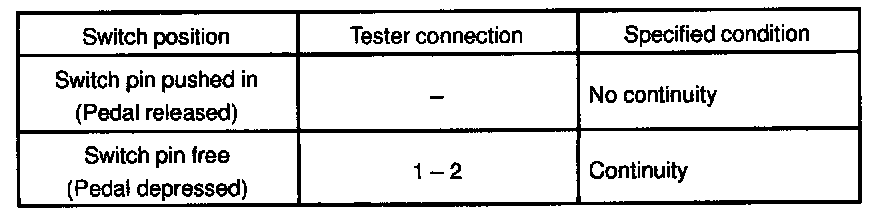

INSPECT STOP LIGHT SWITCH CONTINUITY

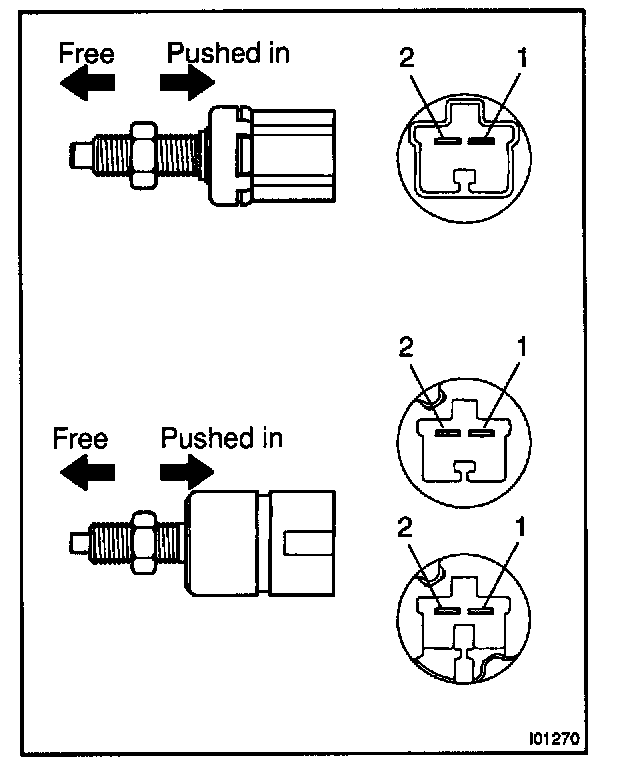

w/o cruise control system:
If continuity is not as specified, replace the switch.

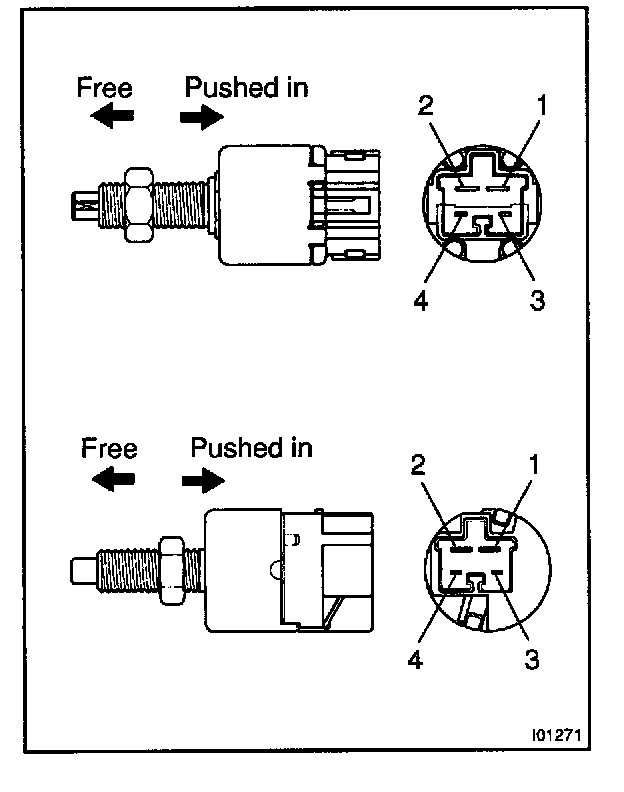

w/ cruise control system:
If continuity is not as specified, replace the switch.
