Headlamp Alignment Actuator: Testing and Inspection

INSPECT HEADLIGHT BEAM LEVEL CONTROL ACTUATOR OPERATION

NOTE: If a resister is not placed, switch may be damaged.

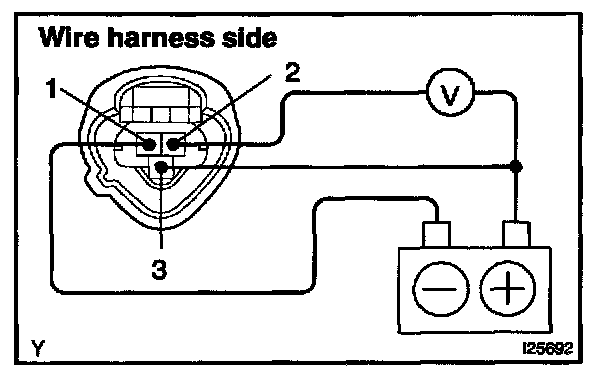

Disconnect the connector and inspect the connector on the wire harness as shown in the chart.
If current value is not as specified, replace the actuator.
