Engine Torque and Sequence

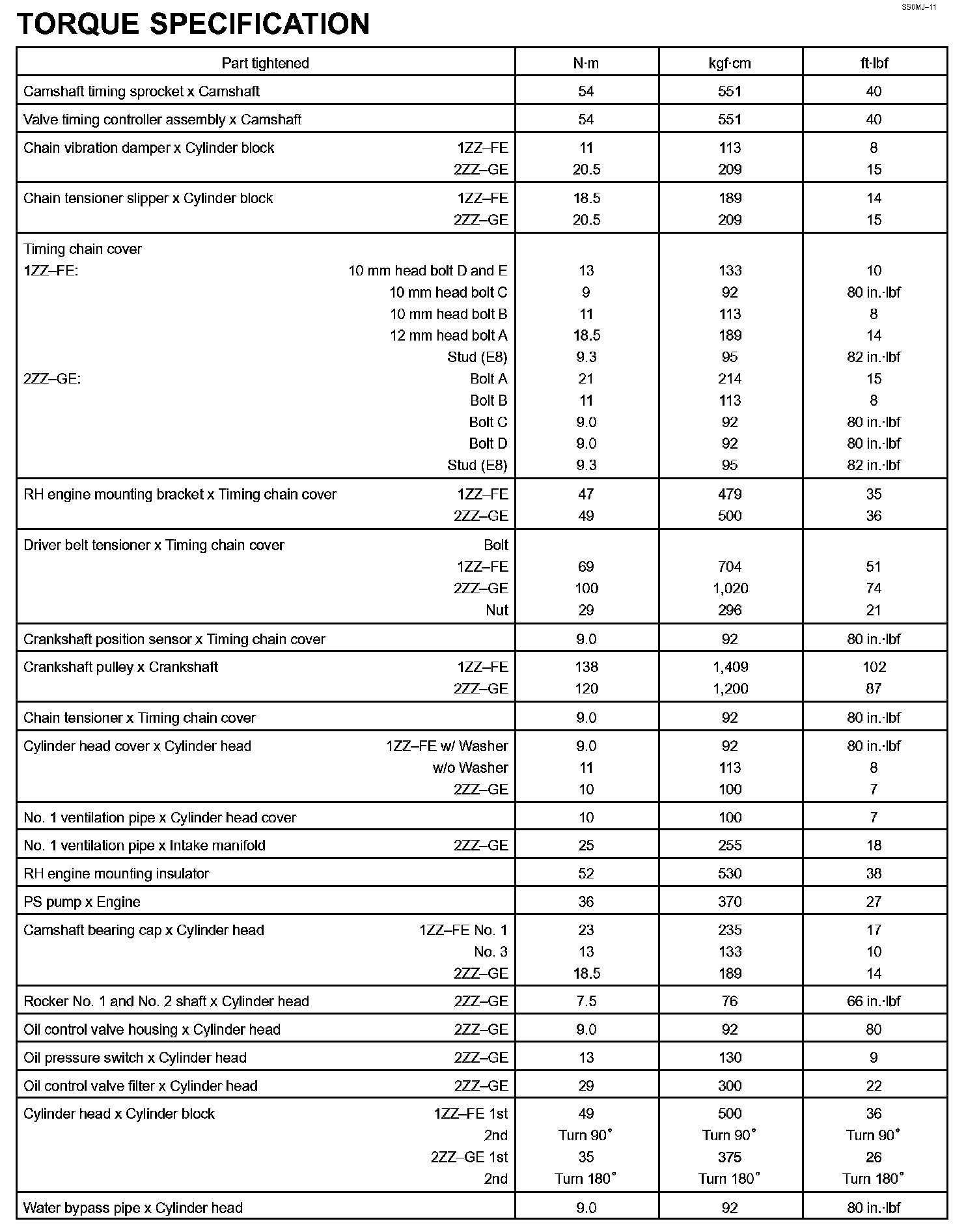

Engine Mechanical - Torque Specification:

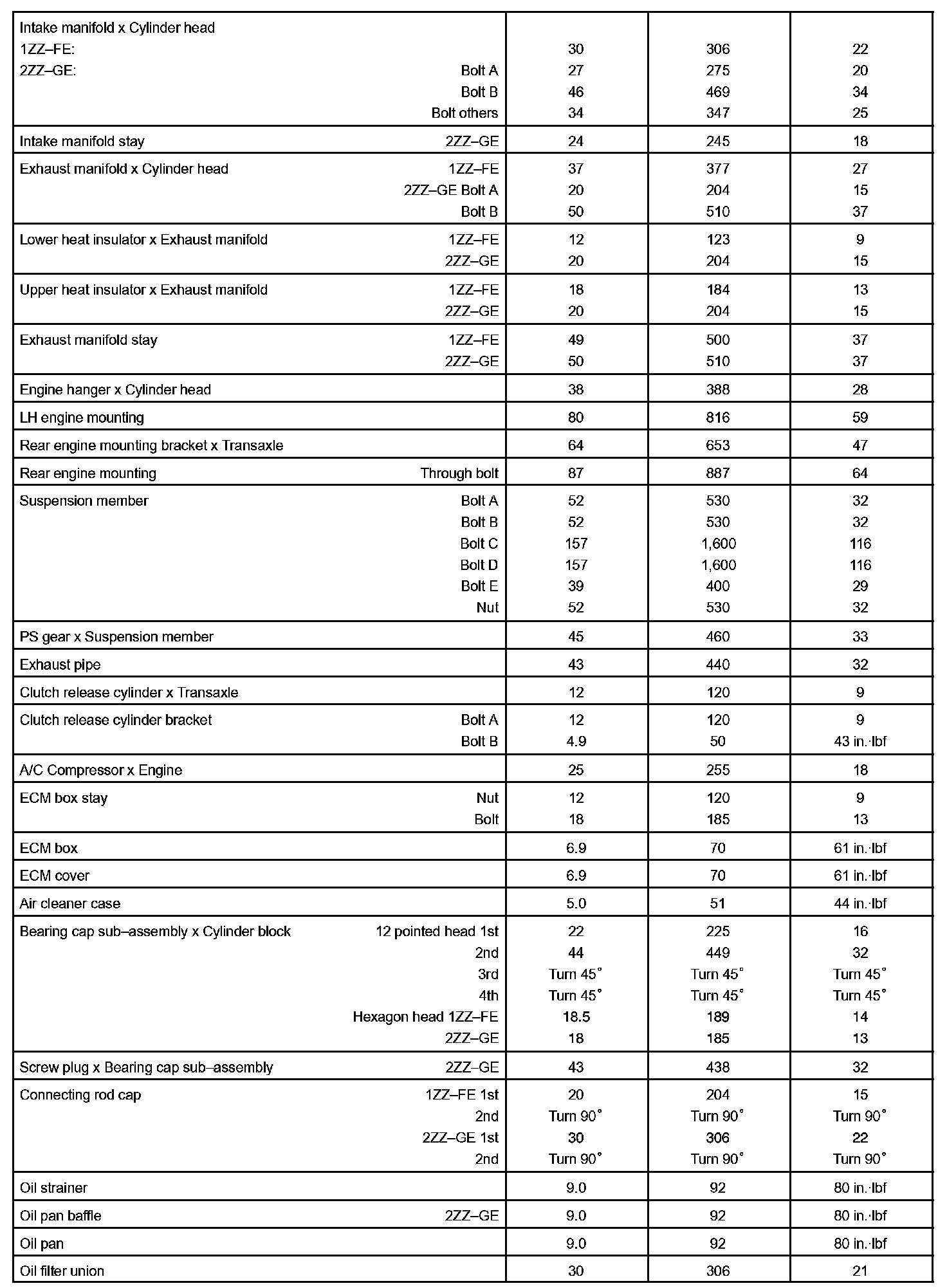

Engine Mechanical - Torque Specification Part 2:

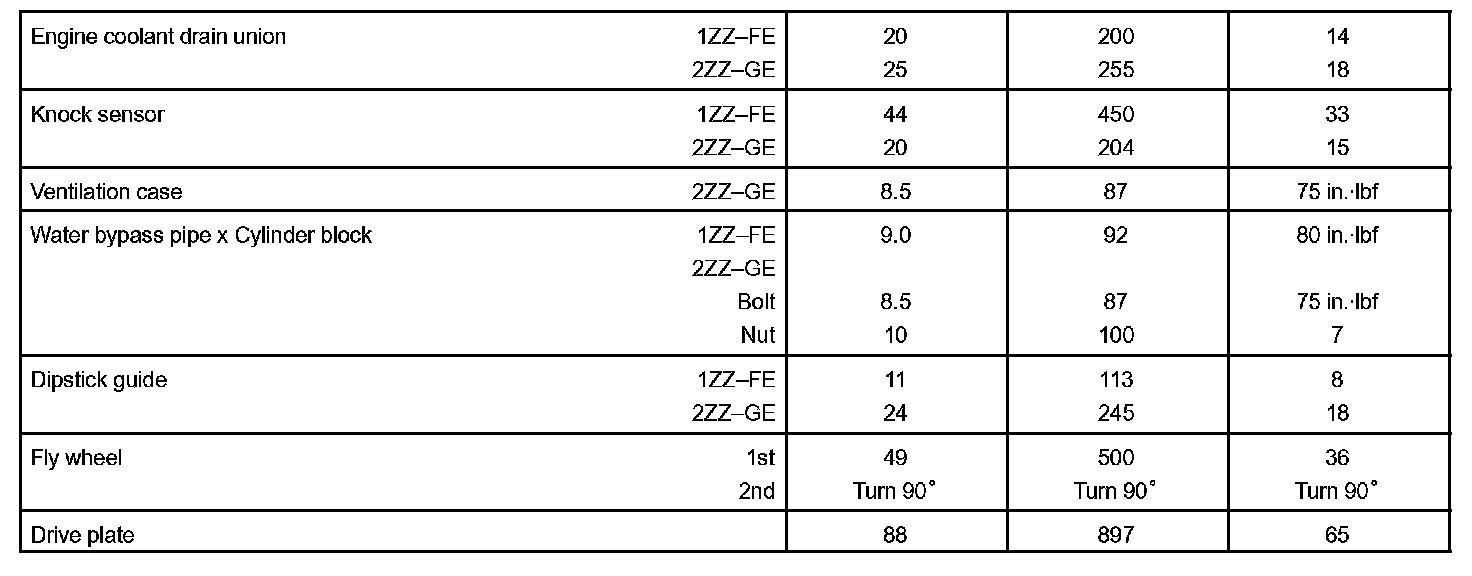

Engine Mechanical - Torque Specification Part 3:
