Removal and Installation

Starter (Part 1):

Starter (Part 2):

REMOVAL

1. REMOVE UPPER RADIATOR SUPPORT SEAL
2. REMOVE AIR CLEANER ASSEMBLY
3. REMOVE RH AND LH ENGINE UNDER COVER

4. REMOVE STARTER

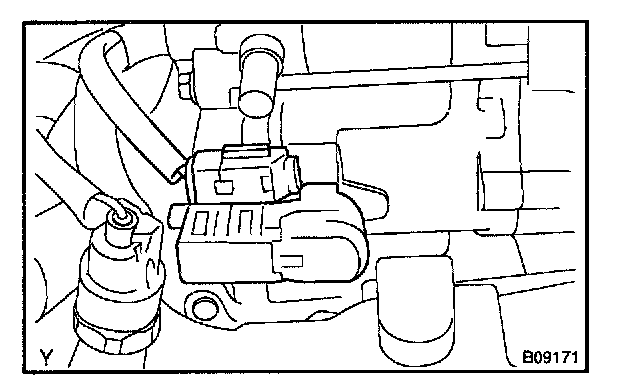

a. Disconnect the starter connector.
b. Remove the nut, and disconnect the starter wire.

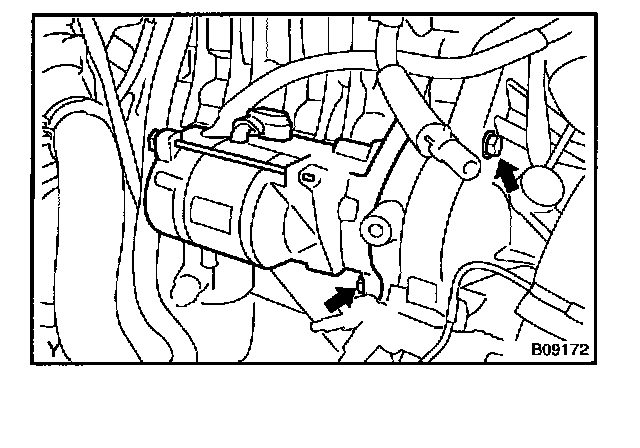

c. Remove the 2 bolts and starter.

INSTALLATION







1. INSTALL STARTER
a. Install the 2 bolts and starter.

HINT:
Each bolt length is indicated in the illustration.
Bolt length
A 64 mm (2.72 in.)
B 54 mm (2.13 in.)

b. Connect the starter wire, and install the nut.
c. Connect the starter connector.

2. INSTALL RH AND LH ENGINE UNDER COVER
3. INSTALL AIR CLEANER ASSEMBLY
4. INSTALL UPPER RADIATOR SUPPORT SEAL
