Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

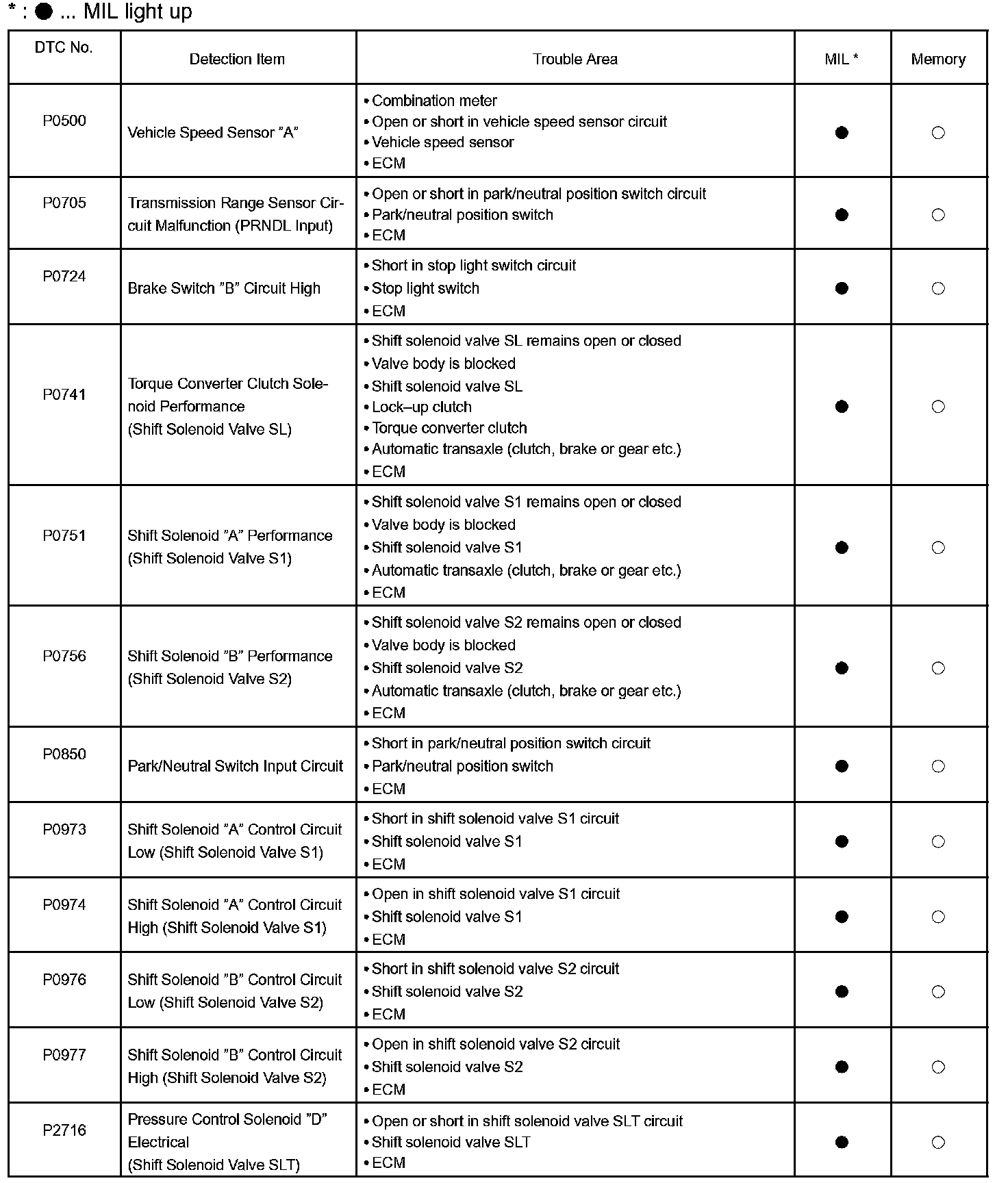

P0500 - P2716:

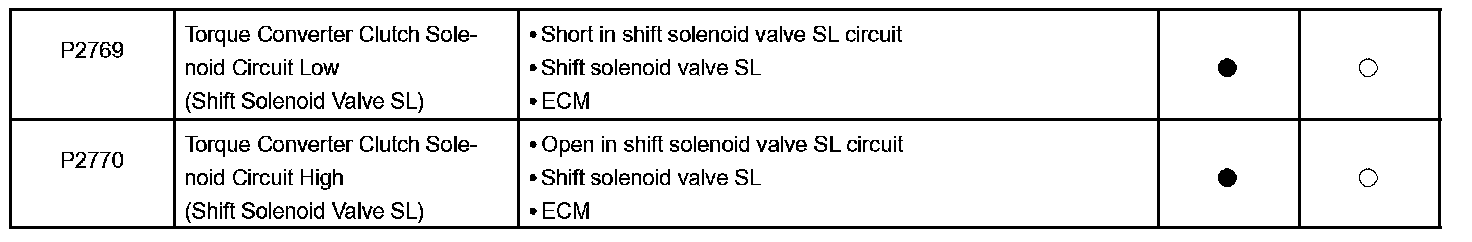

P2769 - P2770:

If a DTC is displayed during the DTC check, check the circuit listed in the table and proceed to the relevant troubleshooting.
