Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART

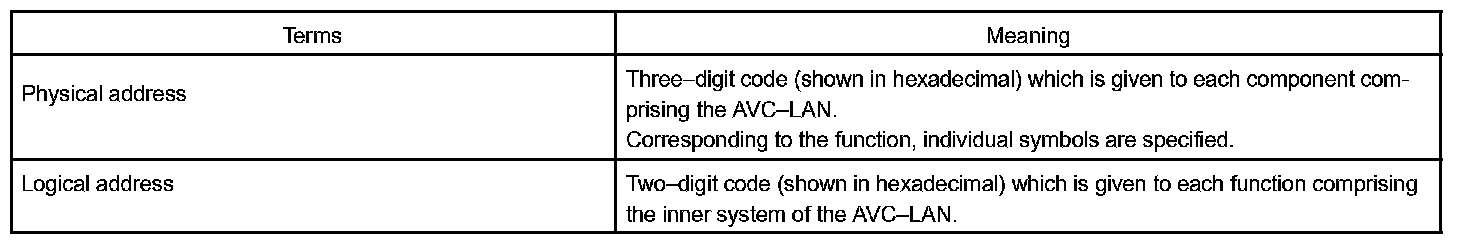

1. RADIO RECEIVER ASSY (Physical address: 190)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

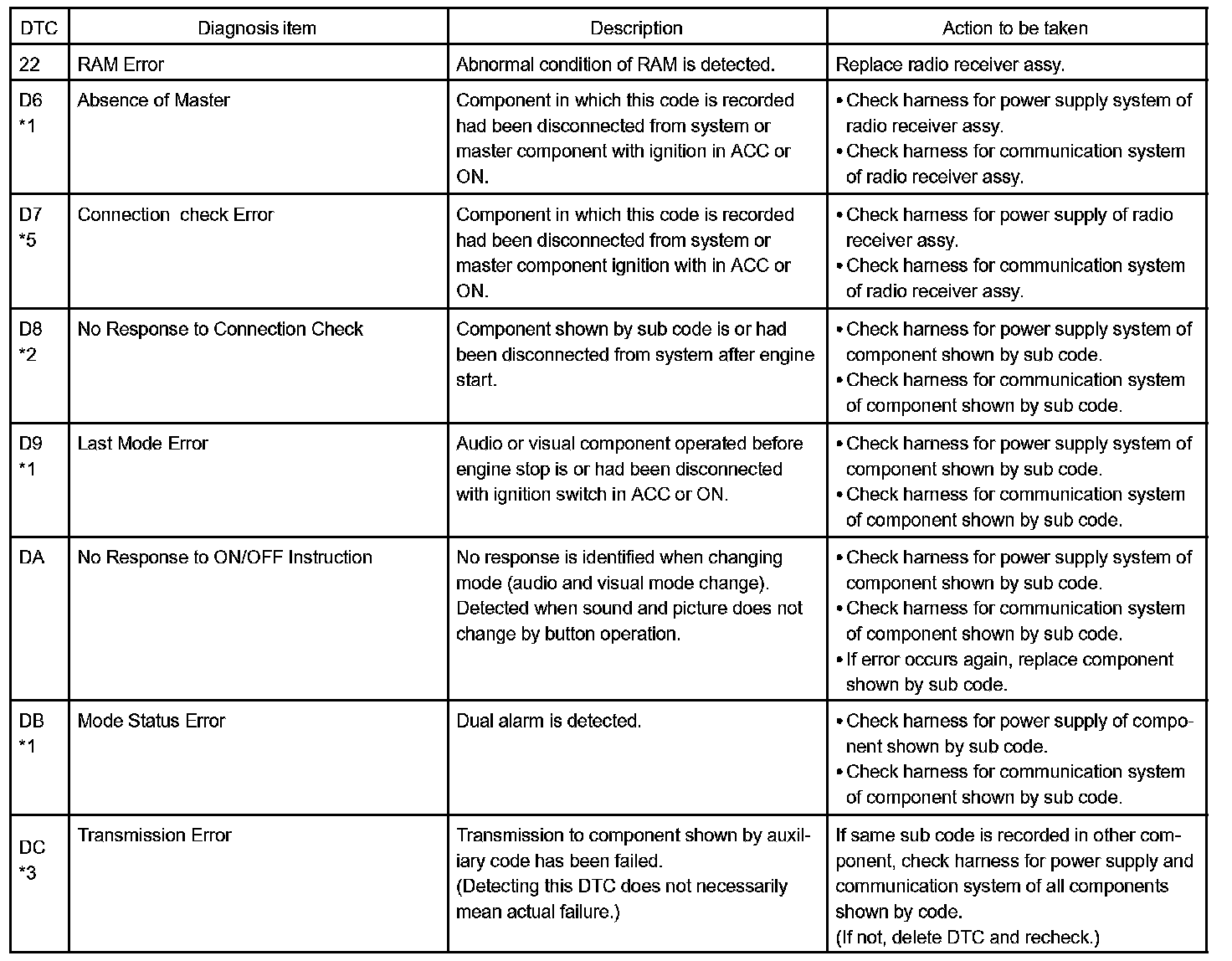

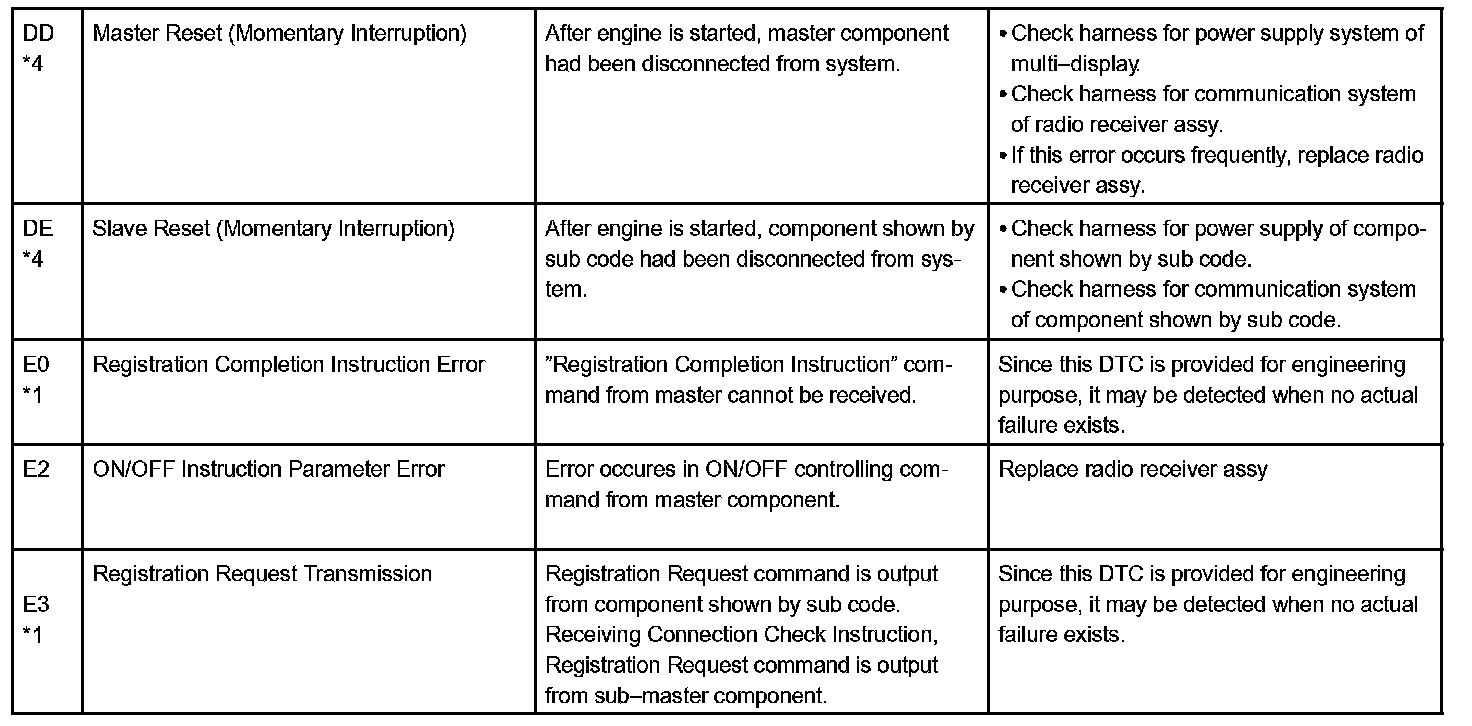

a. Logical address: 01 (Communication control)

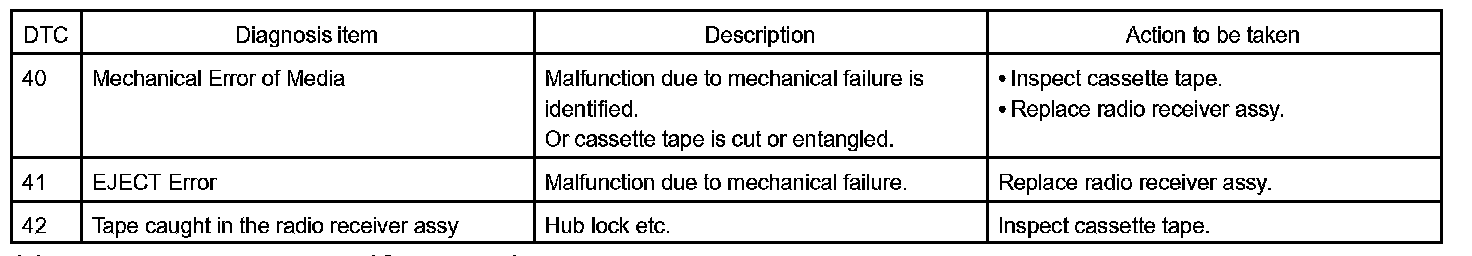

b. Logical address: 61 (Cassette switch)

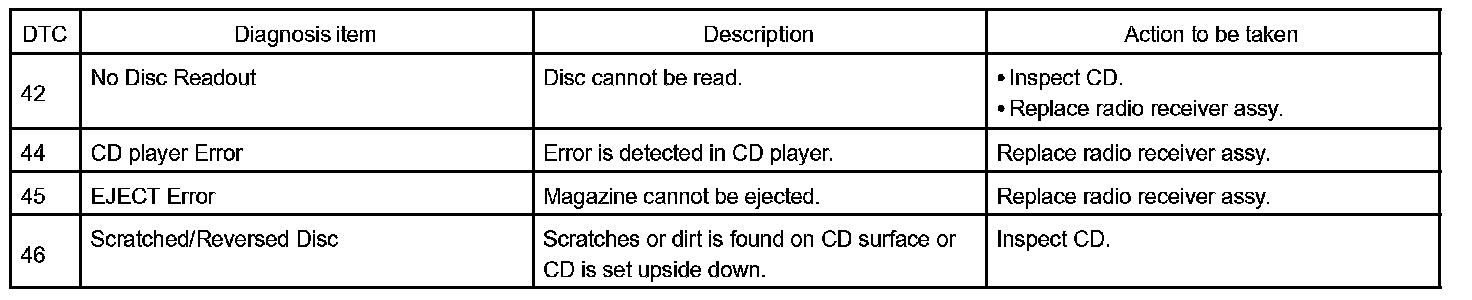

c. Logical address: 62 (CD player)
