DTC 18

DTC 18 OPEN IN D SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

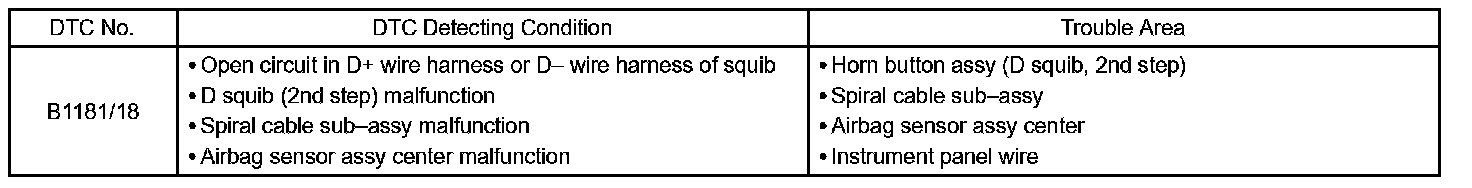

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy. It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1181/18 is recorded when an open is detected in the D squib circuit (2nd step).

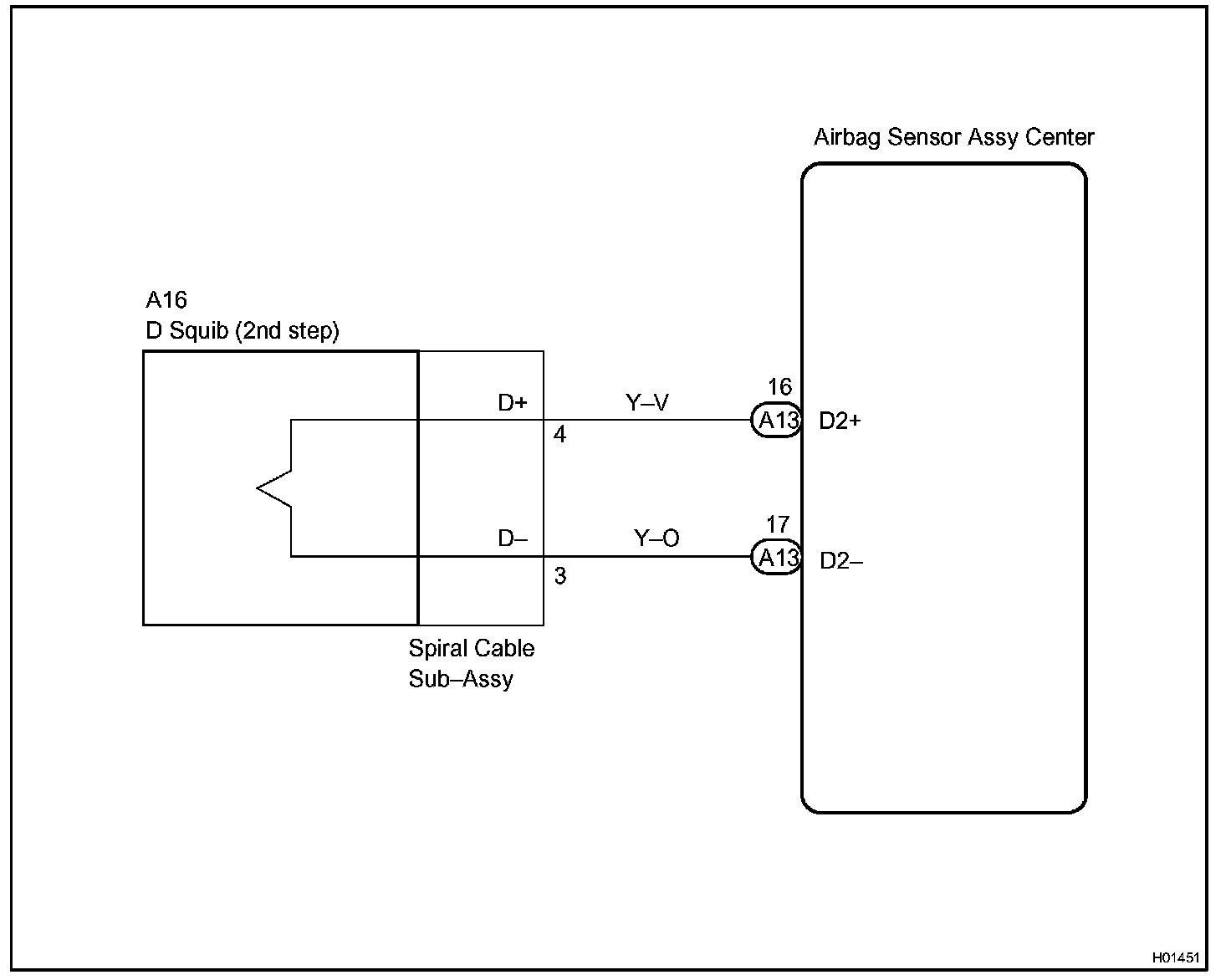

Wiring Diagram:

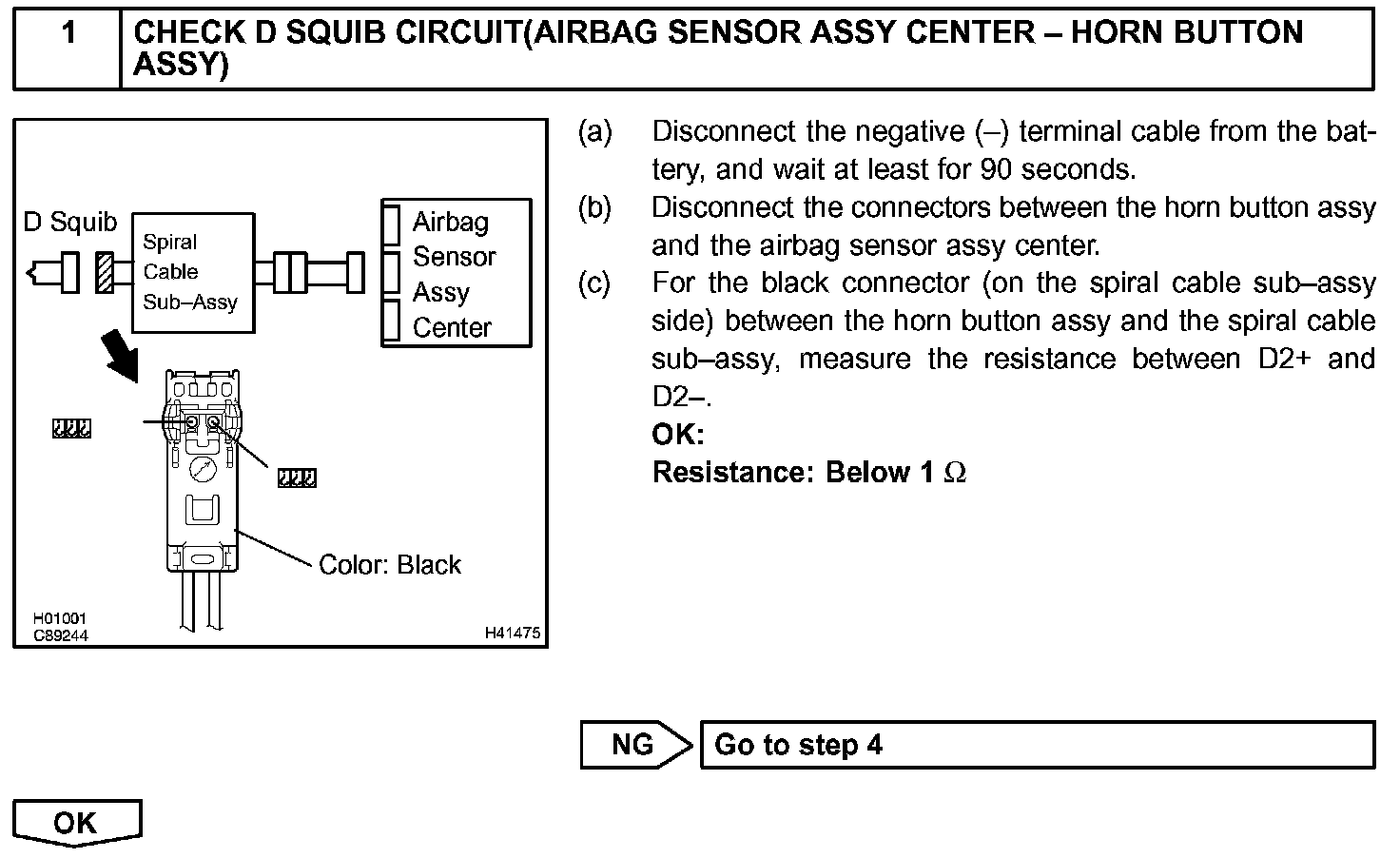

Step 1:

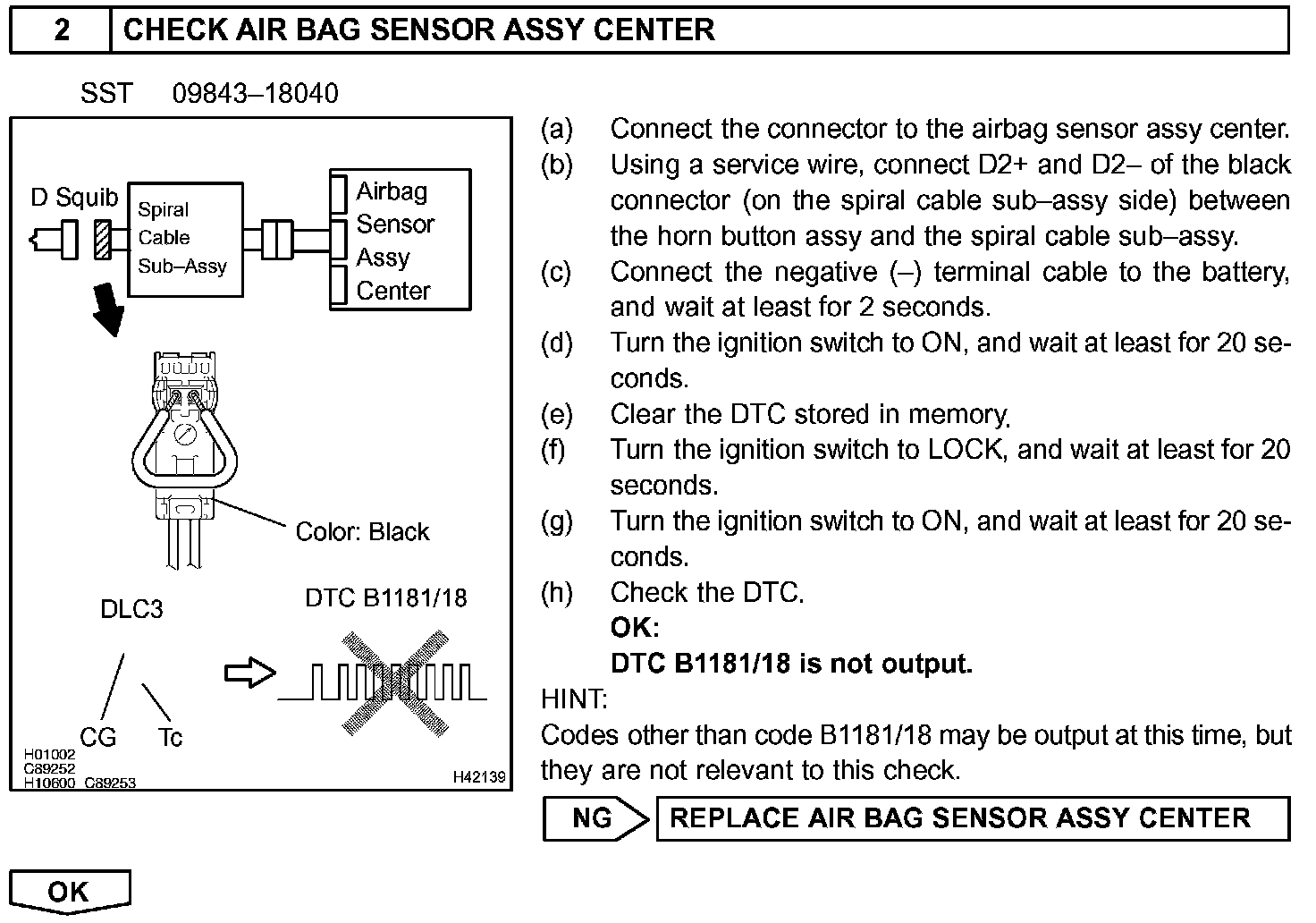

Step 2:

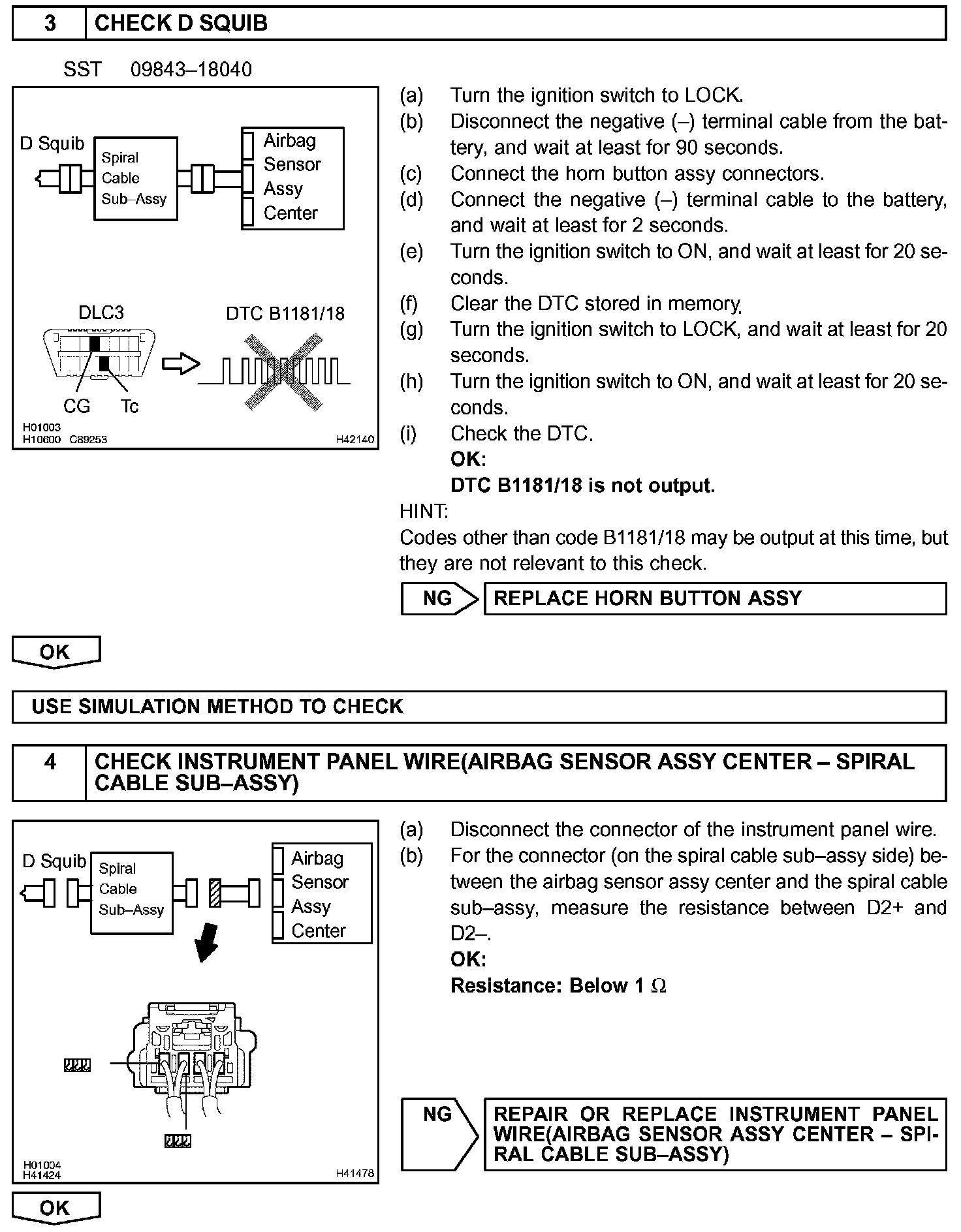

Step 3 - 4:

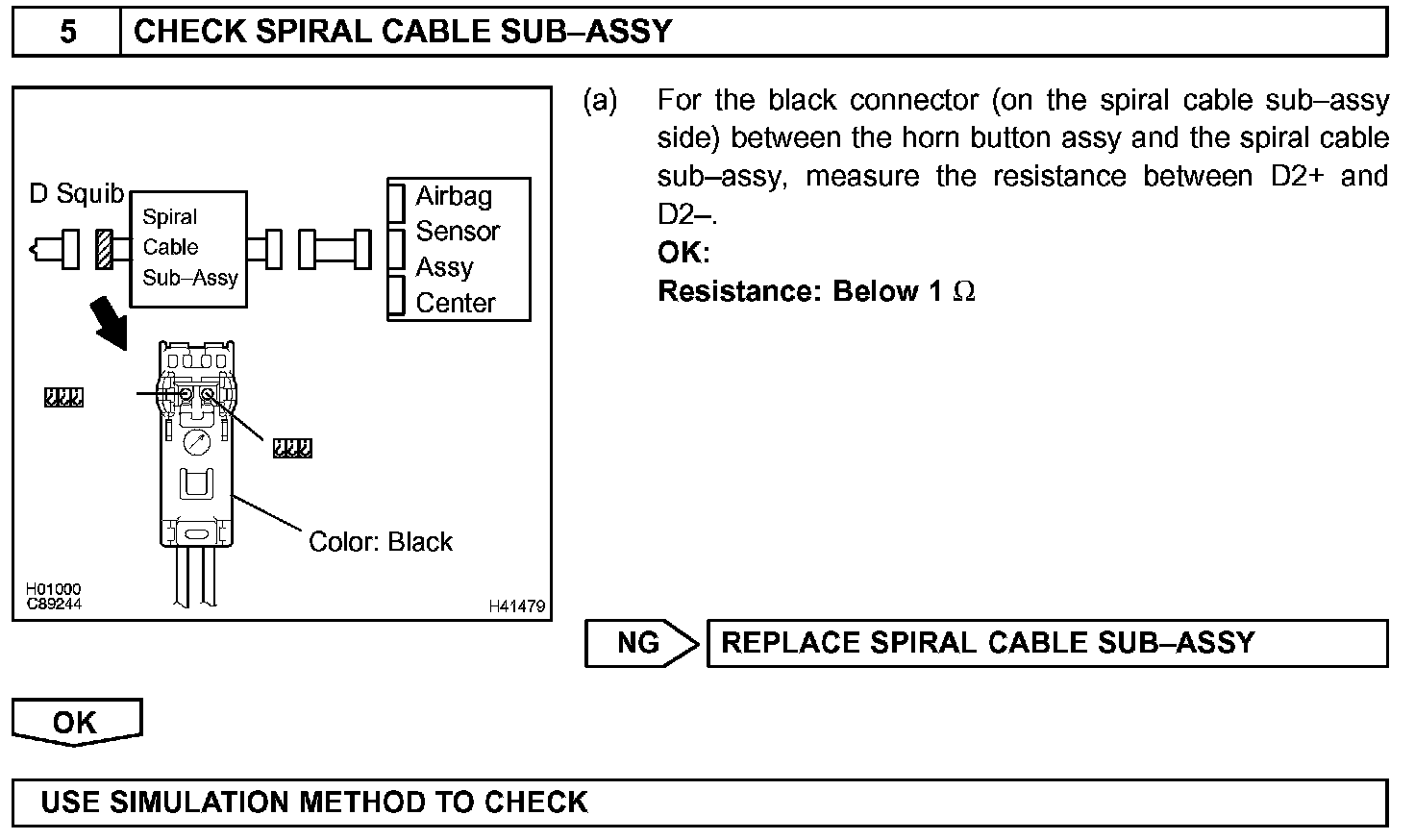

Step 5:

INSPECTION PROCEDURE
