ABS (Antilock Brake System)

DTC 41 LOW BATTERY POSITIVE VOLTAGE OR ABNORMALLY HIGH BATTERY POSITIVE VOLTAGE

CIRCUIT DESCRIPTION

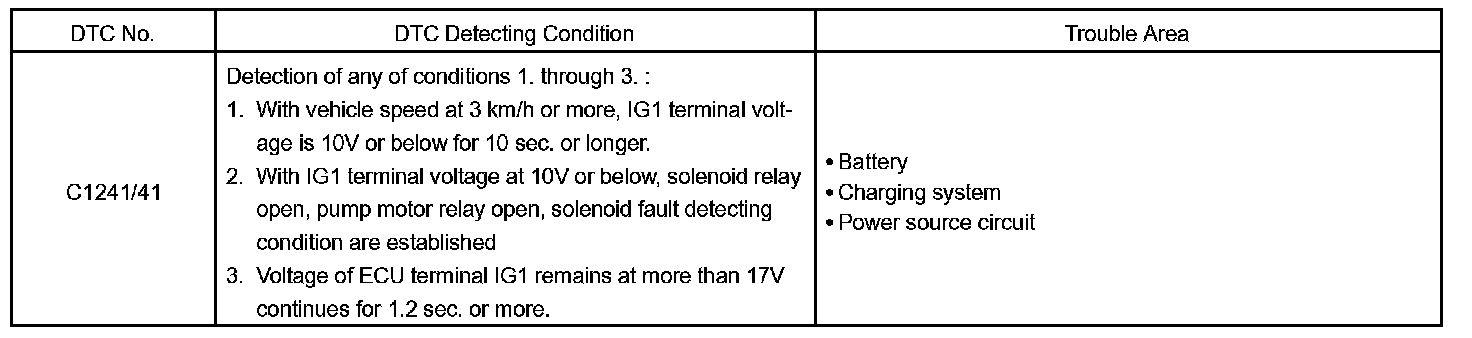

DTC Detecting Condition:

This is the power source of the ECU, hence the actuators.

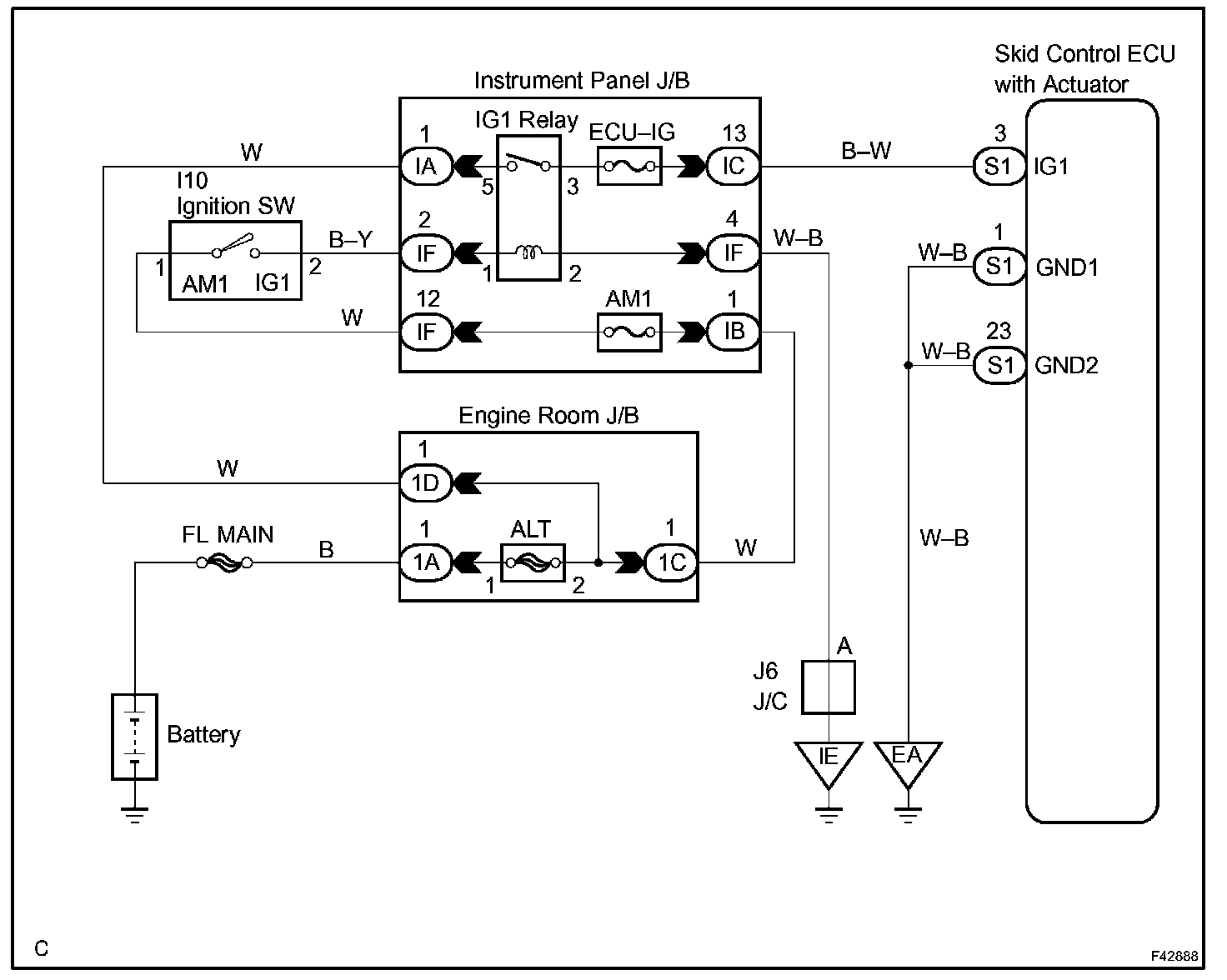

Wiring Diagram:

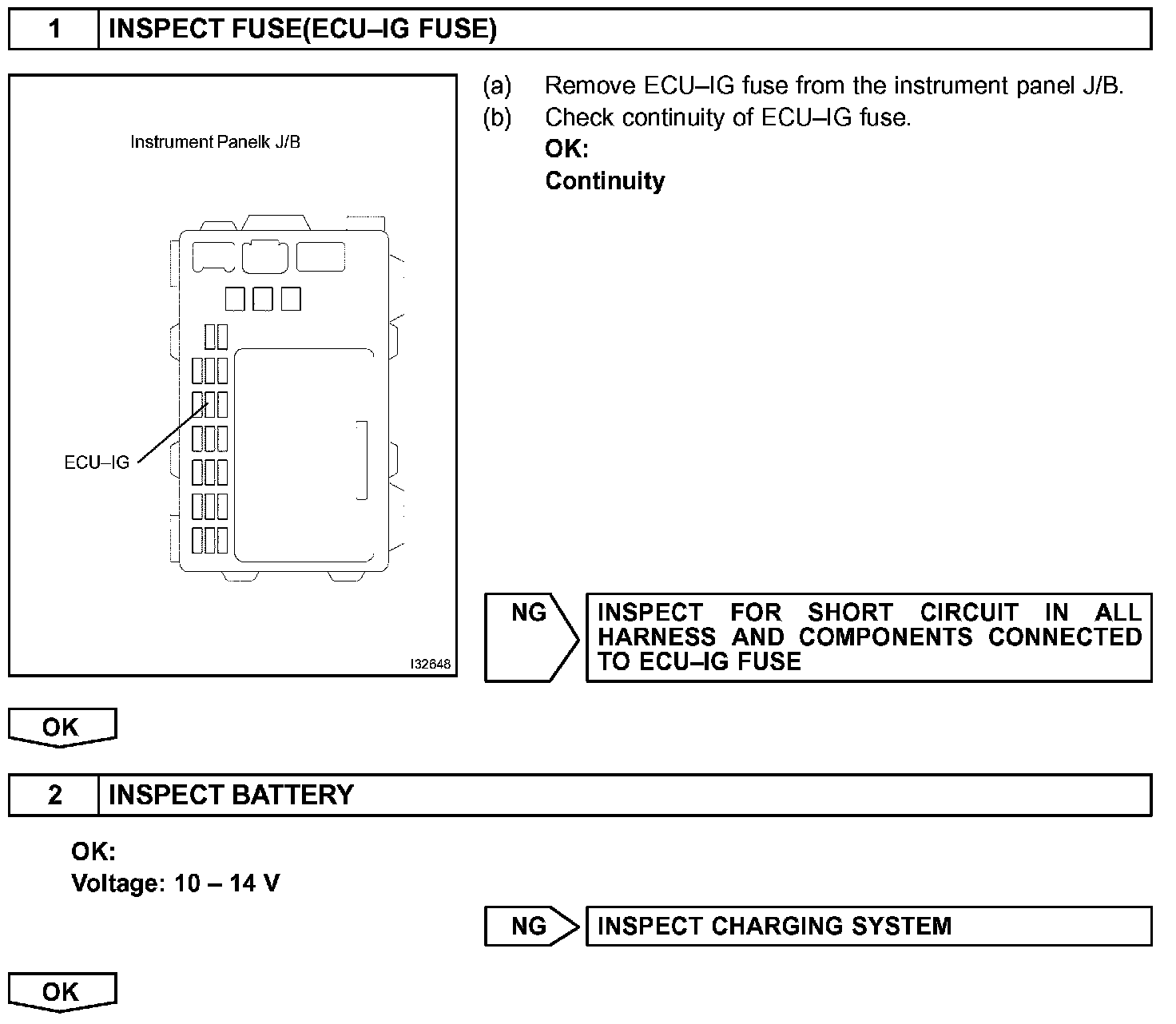

Step 1 - 2:

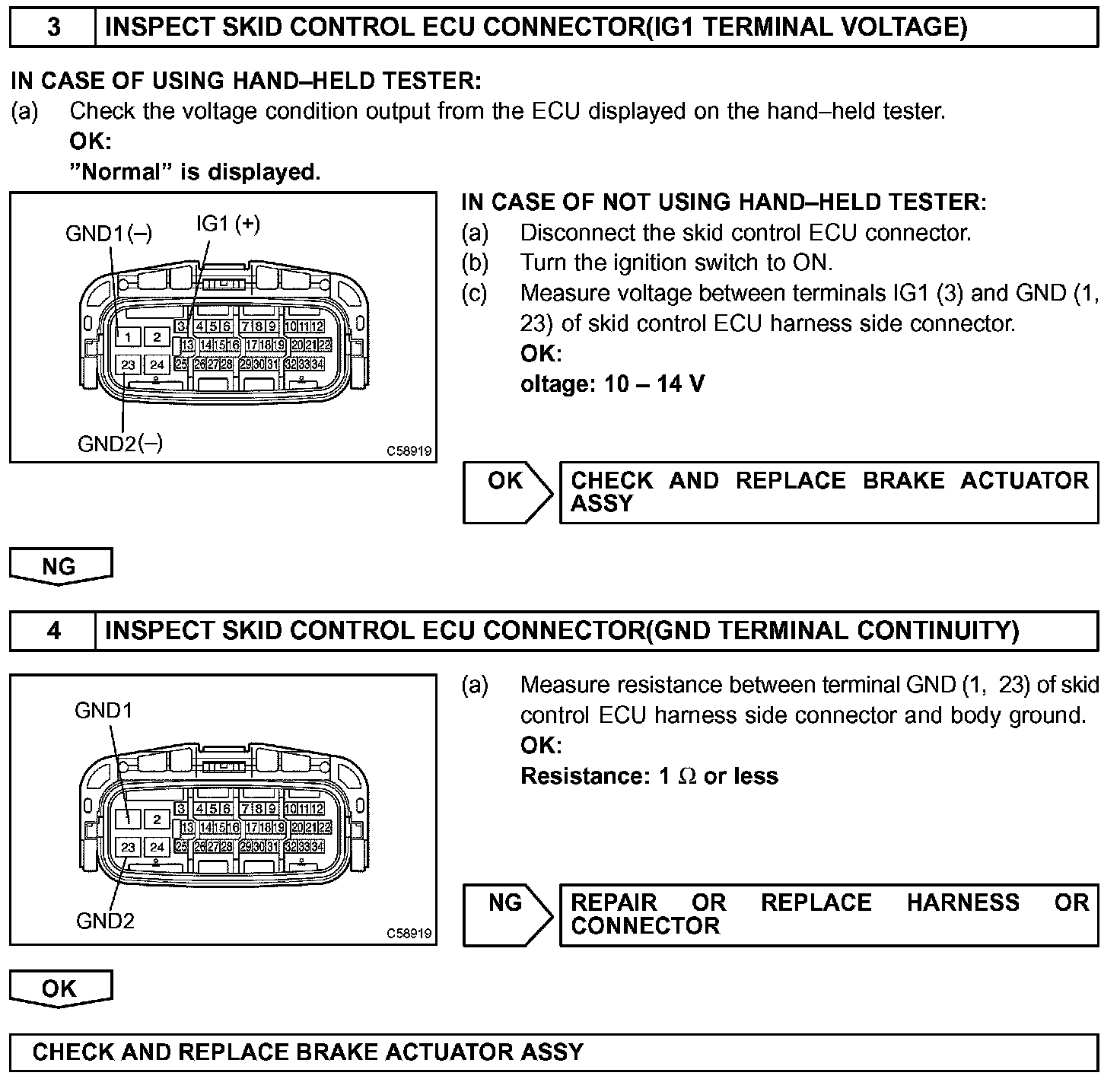

Step 3 - 4:

INSPECTION PROCEDURE
