ECU Power Source Circuit

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This circuit provides power to operate the TVIP ECU.

Wiring Diagram:

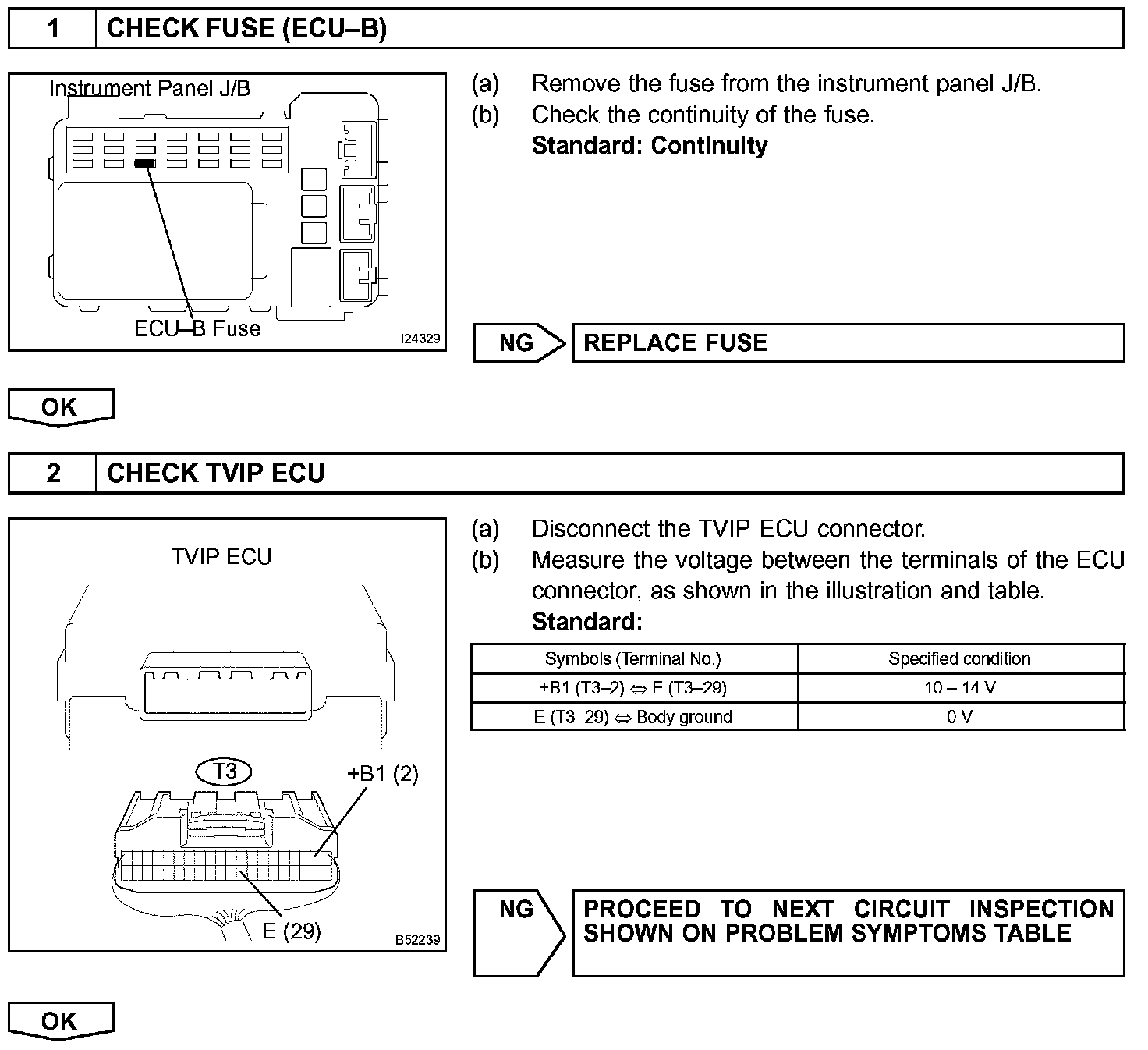

Step 1 - 2:

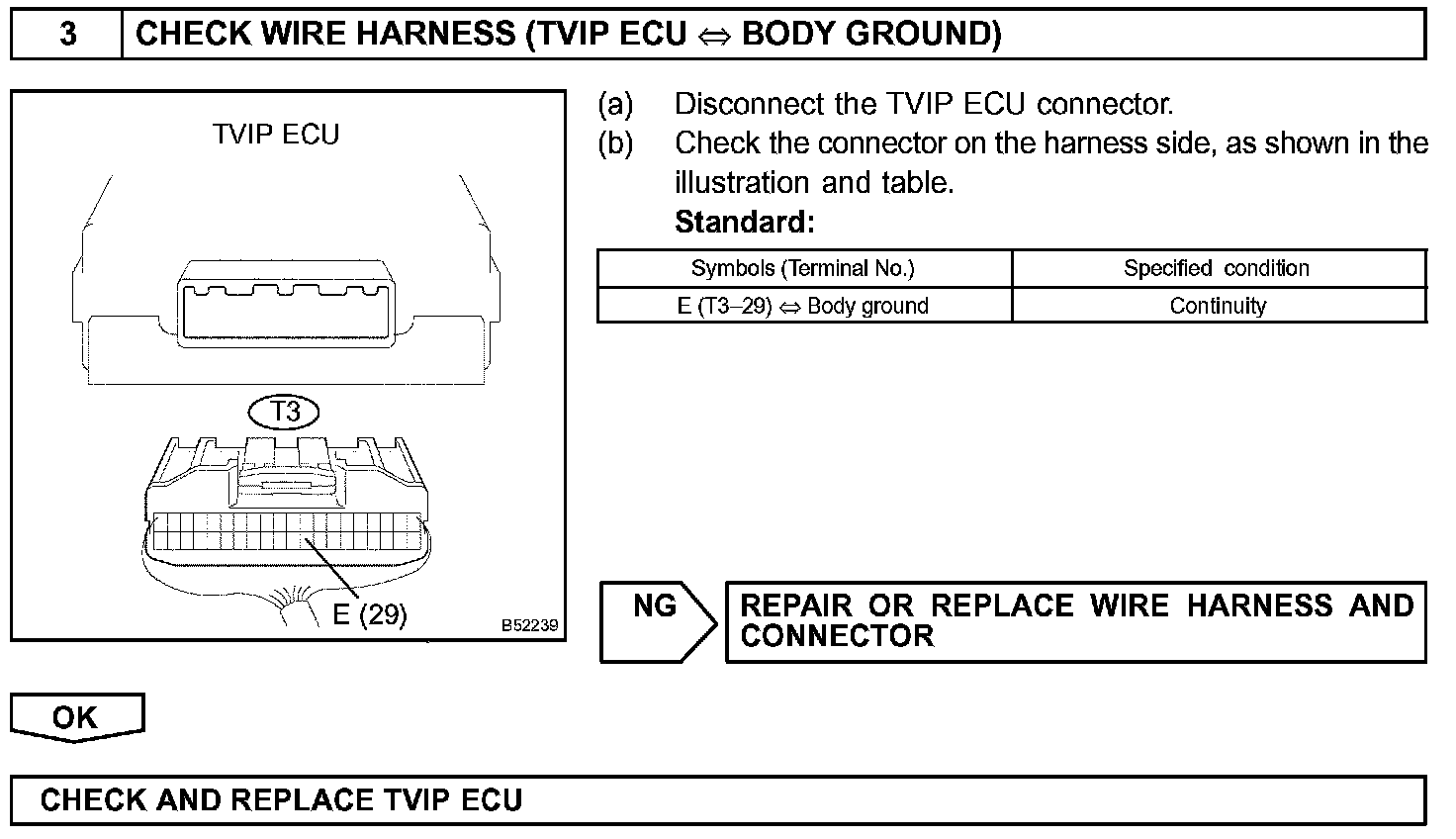

Step 3:




INSPECTION PROCEDURE
