Ignition Switch Circuit
IGNITION SWITCH CIRCUITCIRCUIT DESCRIPTION
If the ignition switch is turned to the ON position, battery positive voltage is applied to the switches, such as terminal IG of the ECU.

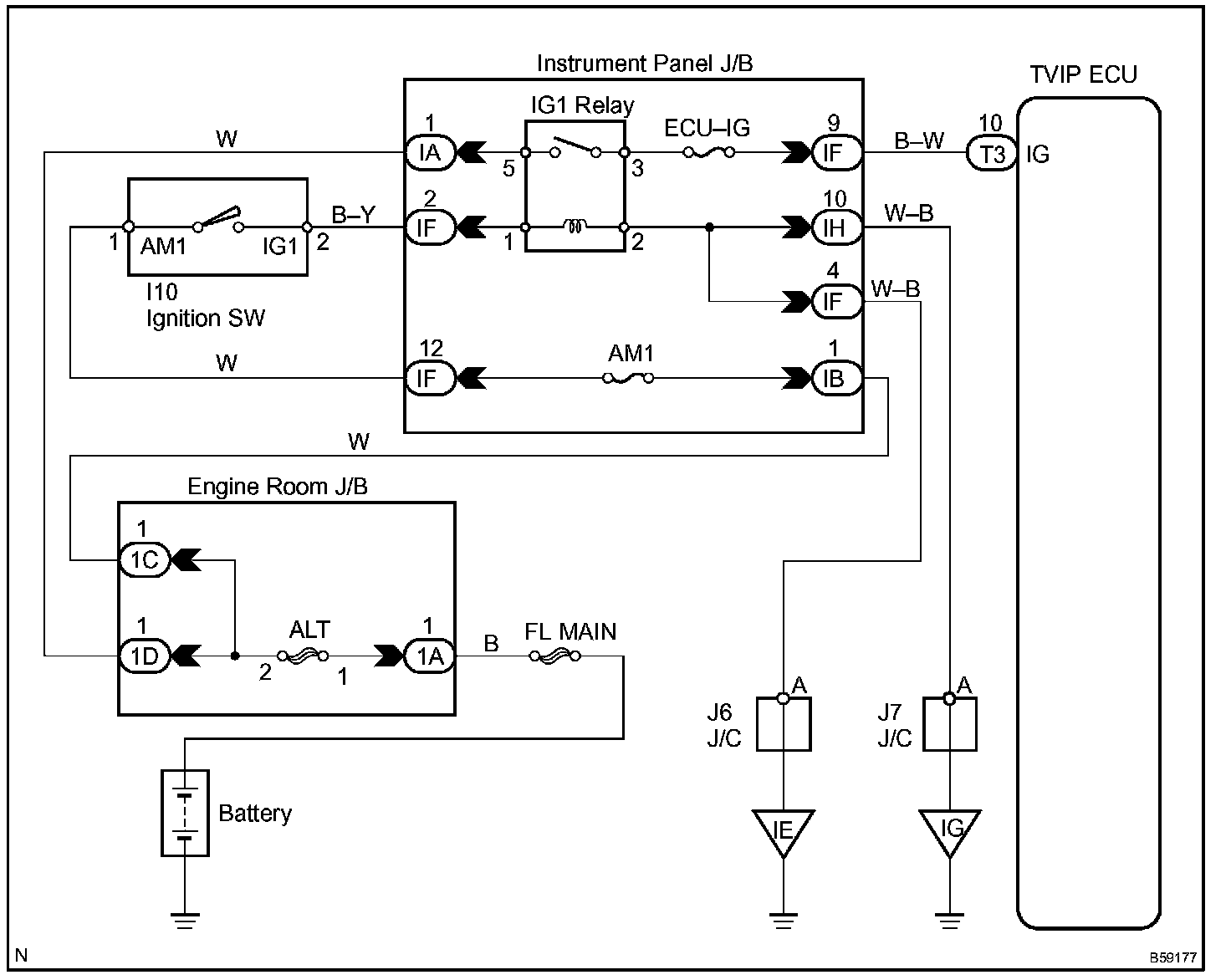

Wiring Diagram:

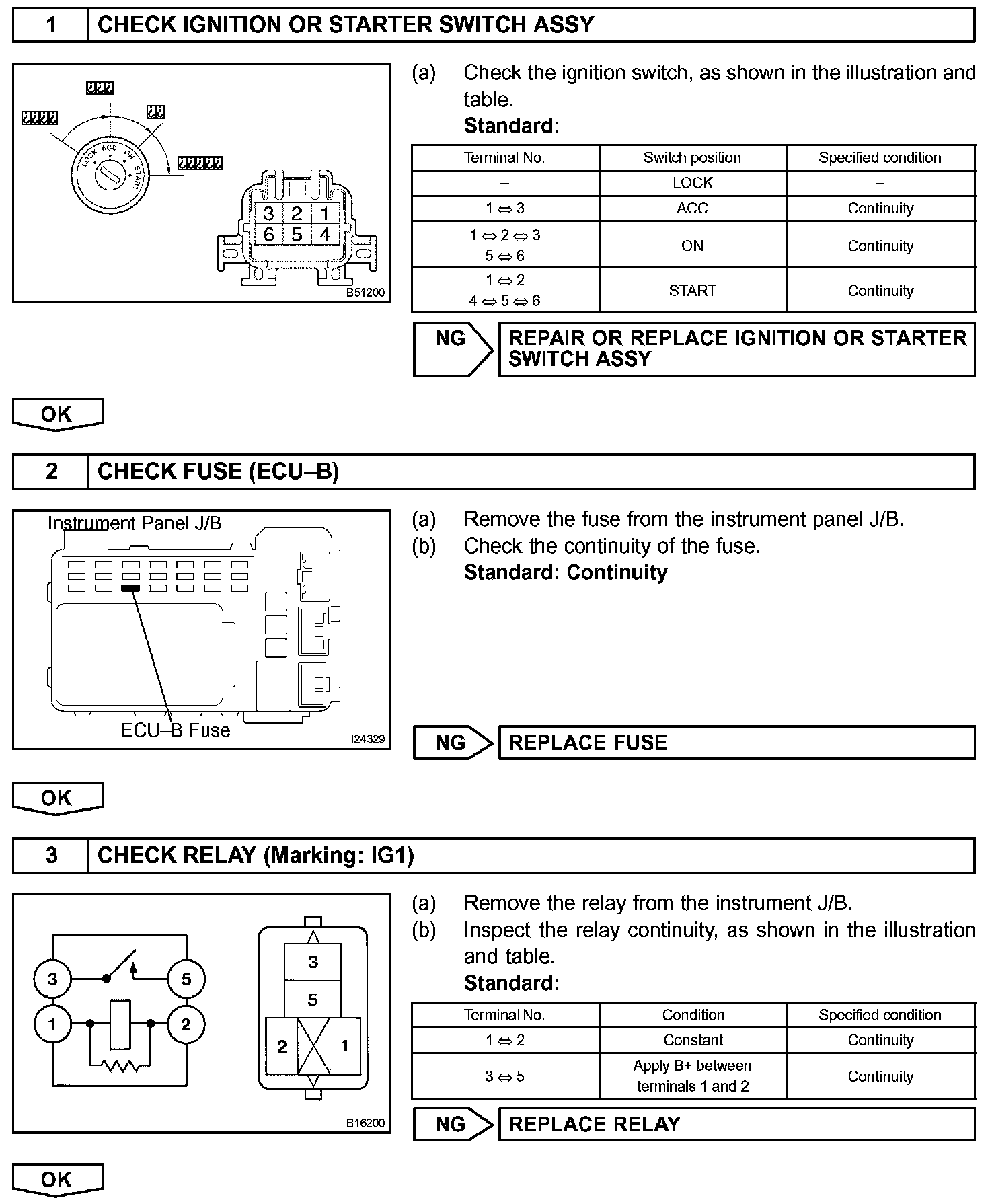

Step 1 - 3:

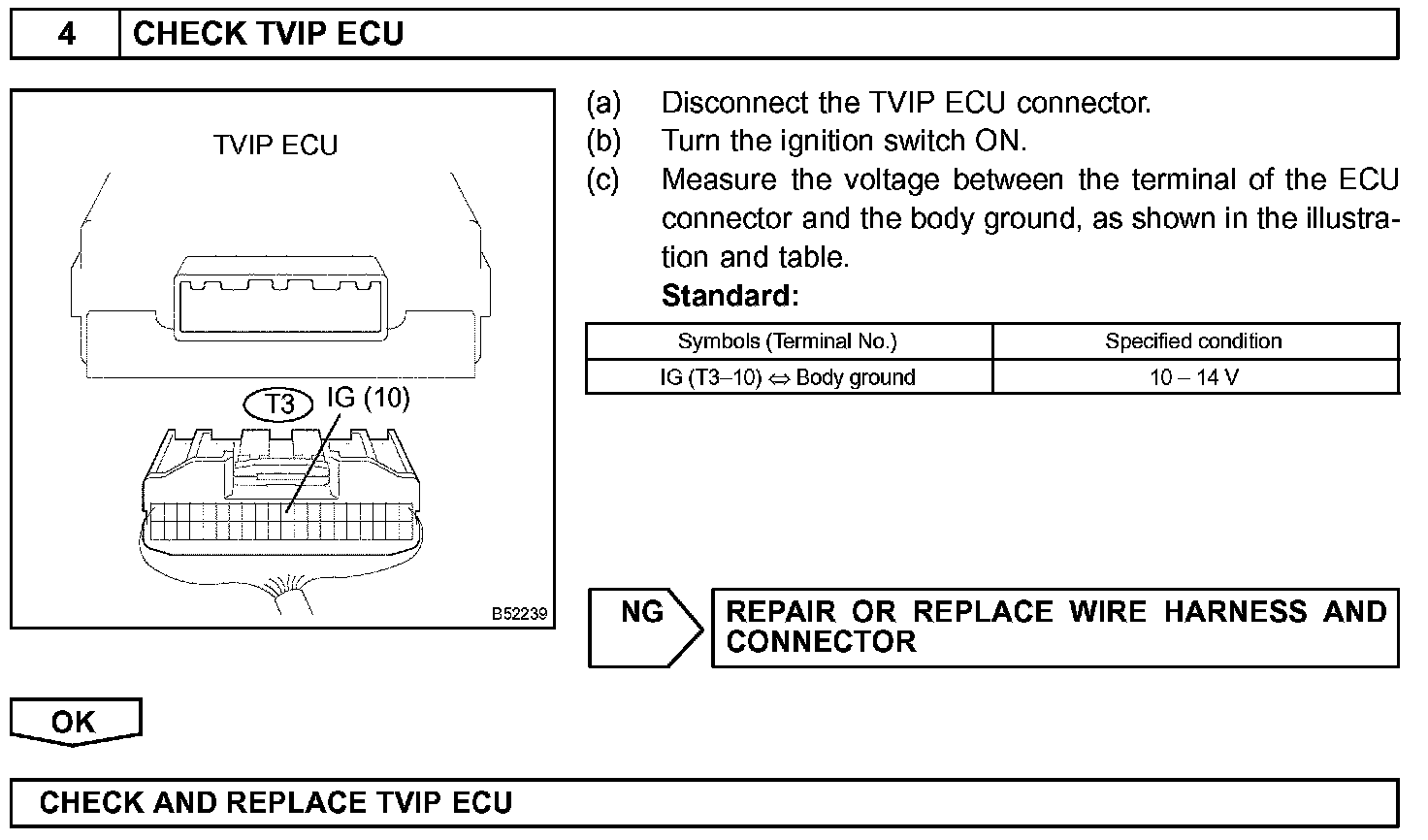

Step 4:
INSPECTION PROCEDURE
