Key Unlock Warning Switch Circuit

KEY UNLOCK WARNING SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The key unlock warning switch comes on when the ignition key is inserted in the key cylinder and goes off when the ignition key is removed.

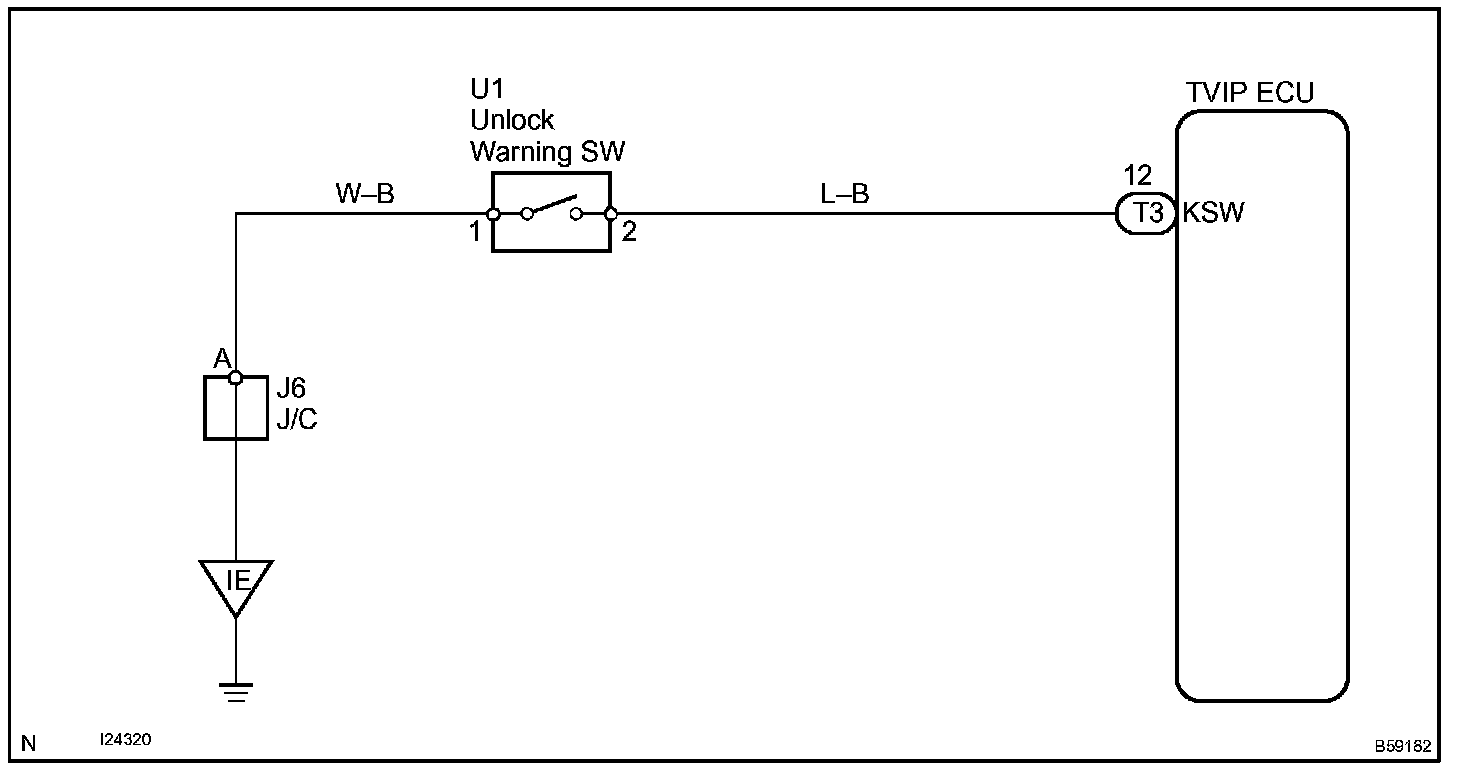

Wiring Diagram:

Step 1 - 2:

Step 3:

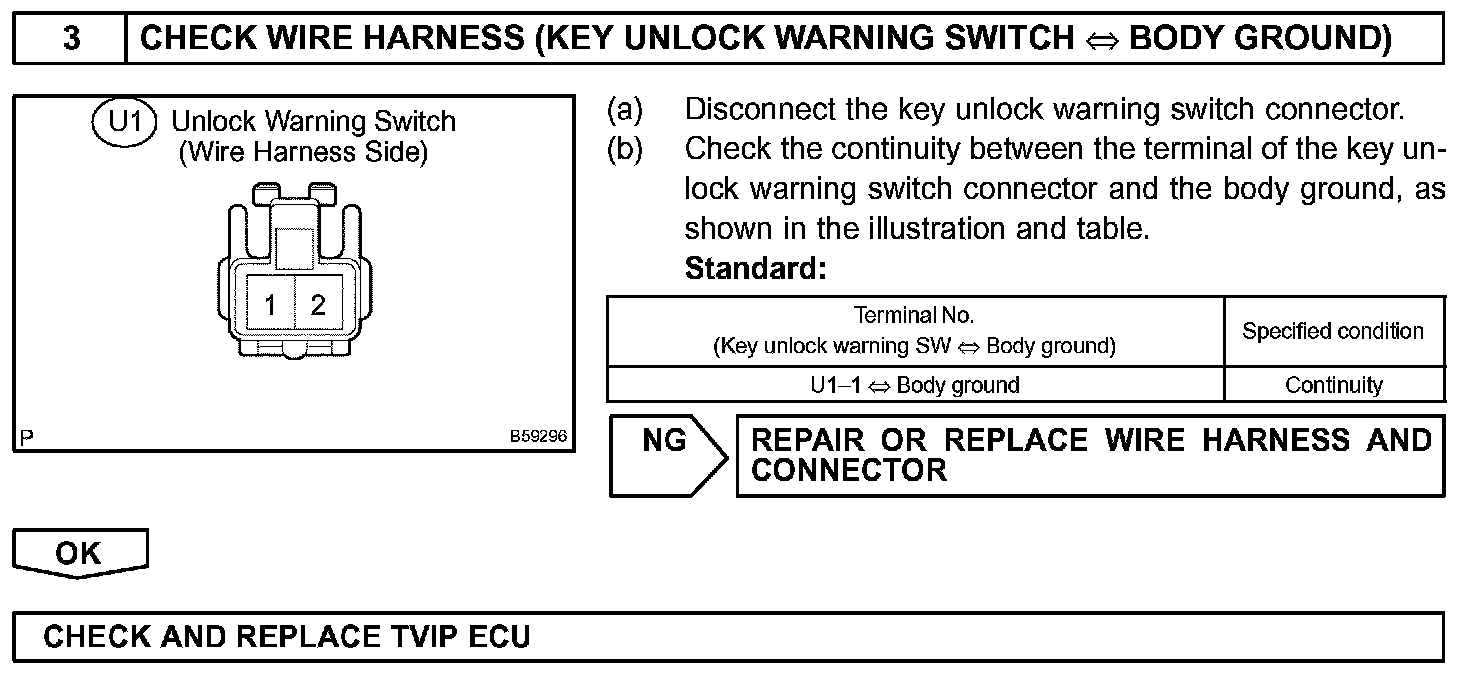

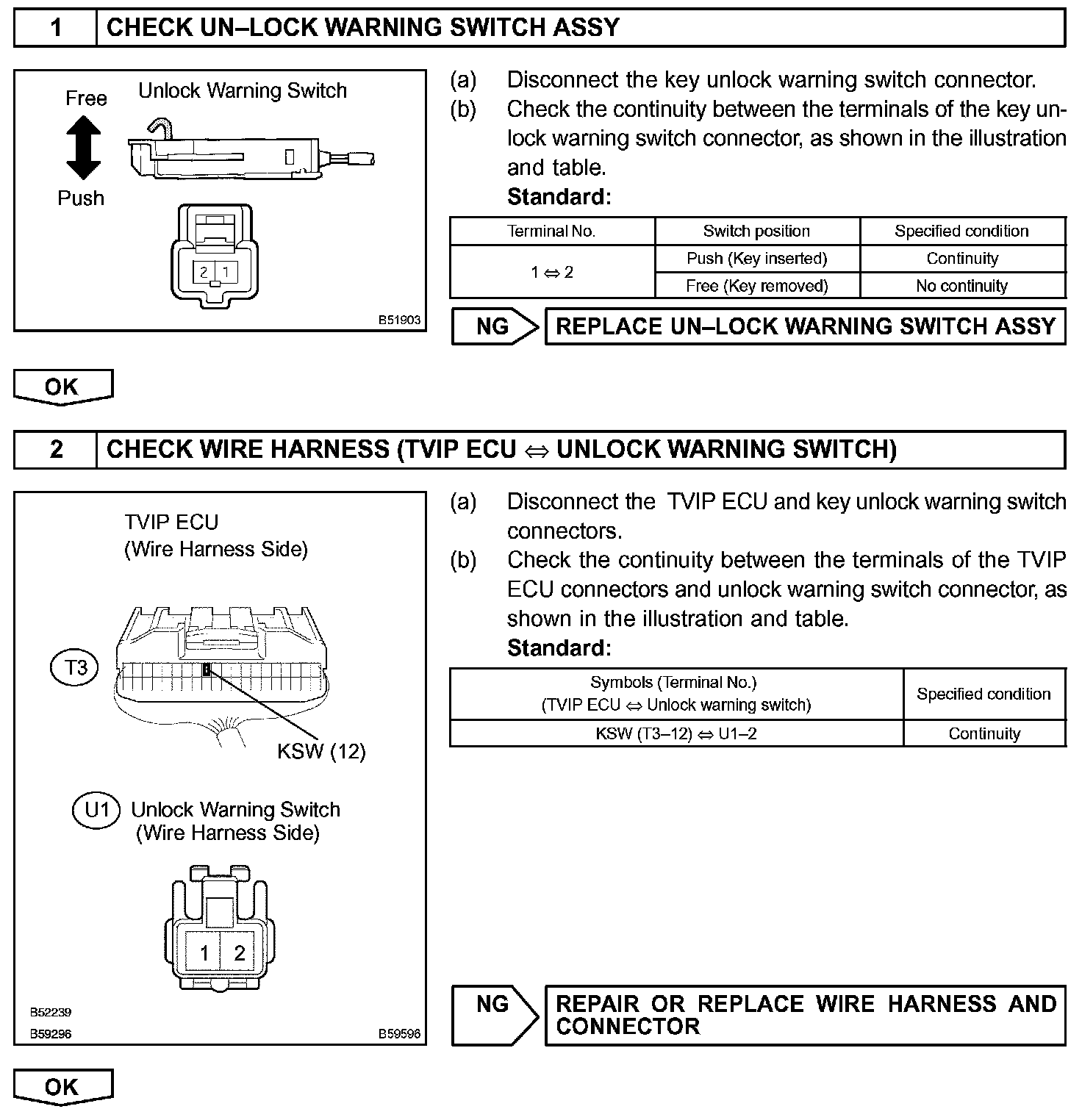

INSPECTION PROCEDURE
