Radio/Stereo: Service and Repair

Audio and Visual System Part 1:

Audio and Visual System Part 2:

RADIO RECEIVER ASSY

REPLACEMENT

1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE)
2. REMOVE CONSOLE PANEL UPPER
3. REMOVE HEATER CONTROL KNOB
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL




5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER

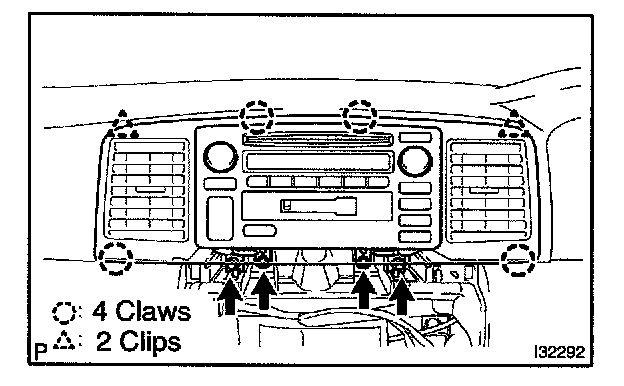

a. Remove the 4 screws.
b. Using a screwdriver, disengage the 2 clips and 4 claws, then remove the instrument cluster finish panel sub-assy center with radio receiver assy.

HINT: Tape the screwdriver tip before use.

c. Disconnect the connectors.




6. REMOVE RADIO RECEIVER ASSY

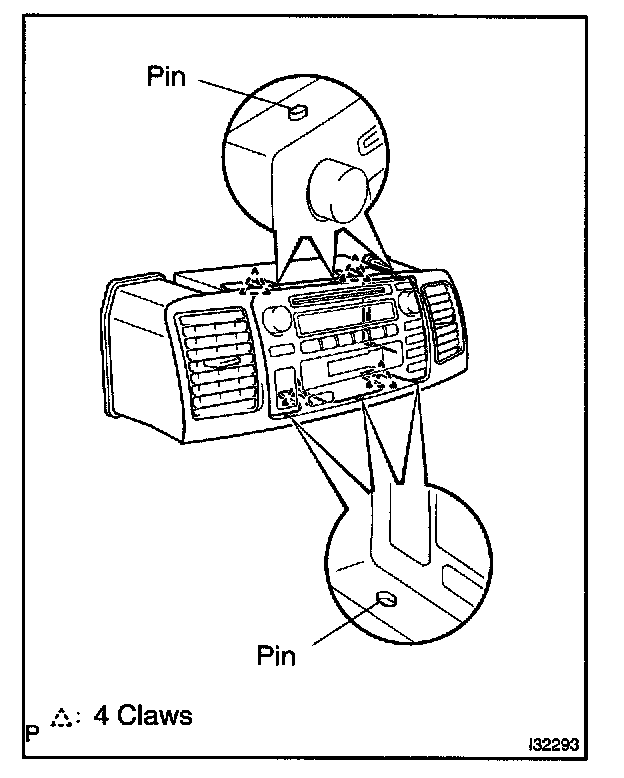

a. Disengage the 4 claws and 6 pins.
b. Remove the radio receiver assy from the instrument cluster finish panel sub-assy center.




7. REMOVE RADIO BRACKET NO.1

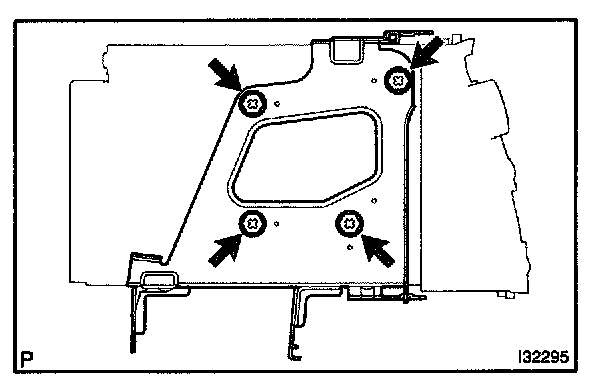

a. Remove the 4 screws and radio bracket No.1.




8. REMOVE RADIO BRACKET NO.2

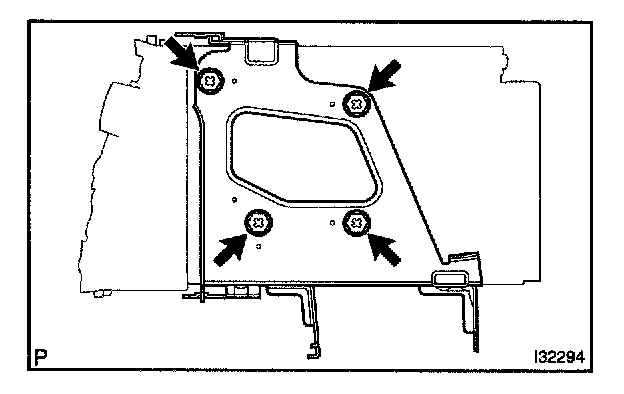

a. Remove the 4 screws and radio bracket No.2.

9. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER




a. Place the radio receiver assy temporarily on the instrument panel sub-assy upper. (*1)

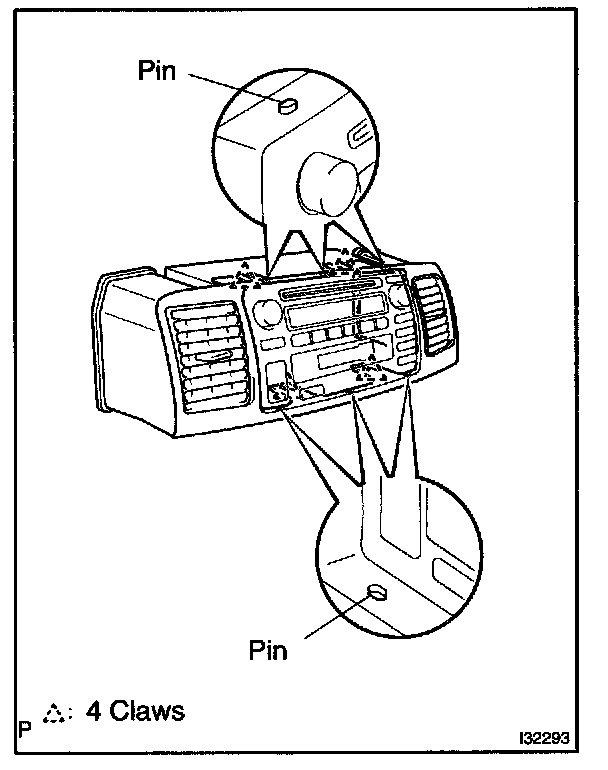

b. Under the condition of (*1) engage the 6 pins and 4 claws of the radio receiver assy with the instrument cluster finish panel sub-assy center. (*2)
c. Under the condition of (*2), slide the instrument cluster finish panel sub-assy center and the radio receiver assy forward of the vehicle.

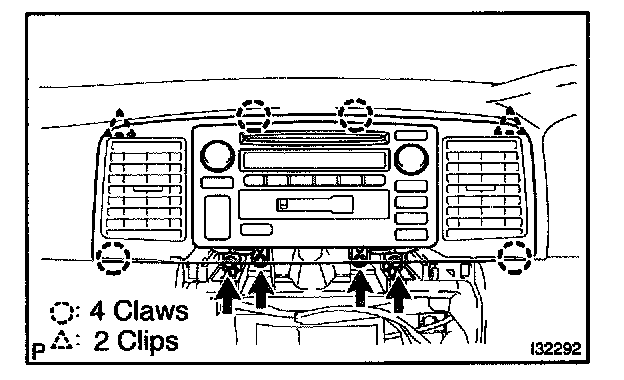

d. Connect the connectors and install the 2 clips and 4 claws.
e. Install the 4 screws and instrument cluster finish panel sub-assy center with radio receiver assy.
