Front No. 2 Speaker

FRONT NO.2 SPEAKER ASSY

REPLACEMENT

1. REMOVE FRONT ARMREST ASSY LH
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (W/ POWER WINDOW)
3. REMOVE FRONT ARMREST BASE PANEL UPPER LH (W/O POWER WINDOW)
4. REMOVE FRONT DOOR WINDOW REGULATOR HANDLE ASSY (W/O POWER WINDOW)
5. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH




7. REMOVE FRONT NO.2 SPEAKER ASSY

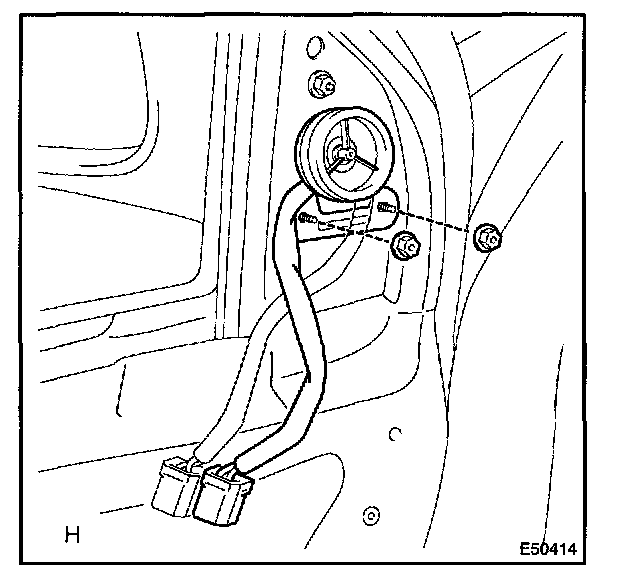

a. Open the part of service hole cover, then disconnect the connector.
b. Remove the 2 nuts and front No.2 speaker assy.

8. INSTALL FRONT DOOR WINDOW REGULATOR HANDLE ASSY (W/O POWER WINDOW)
