Rear Speaker

REAR SPEAKER ASSY

REPLACEMENT

1. REMOVE REAR DOOR OPENING TRIM RH
2. REMOVE REAR DOOR OPENING TRIM LH
3. REMOVE BENCH TYPE REAR SEAT CUSHION ASSY
4. REMOVE REAR SEAT BACK ASSY (FIXED TYPE REAR SEAT)
5. REMOVE REAR SEAT BACK ASSY (SEPARATED TYPE REAR SEAT)
6. REMOVE REAR SEAT SIDE GARNISH RH (FIXED TYPE REAR SEAT)
7. REMOVE REAR SEAT SIDE GARNISH LH (FIXED TYPE REAR SEAT)
8. REMOVE ROOM PARTITION BOARD LH (SEPARATED TYPE REAR SEAT)
9. REMOVE ROOM PARTITION BOARD RH (SEPARATED TYPE REAR SEAT)
10. REMOVE ROOF SIDE GARNISH INNER RH
11. REMOVE ROOF SIDE GARNISH INNER LH
12. REMOVE PACKAGE TRAY TRIM PANEL ASSY

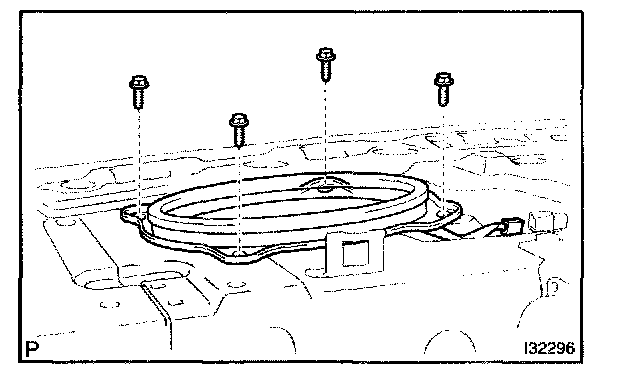

13. REMOVE REAR SPEAKER ASSY
a. Disconnect the connector.
b. Remove the 4 screws and rear speaker assy.

14. INSTALL REAR SEAT BACK ASSY (FIXED TYPE REAR SEAT).
15. INSTALL REAR SEAT BACK ASSY (SEPARATED TYPE REAR SEAT)
16. INSTALL BENCH TYPE REAR SEAT CUSHION ASSY
