Although System Is Powered, CD Cannot Be Played

ALTHOUGH SYSTEM IS POWERED,CD CANNOT BE PLAYED

Wiring Diagram:

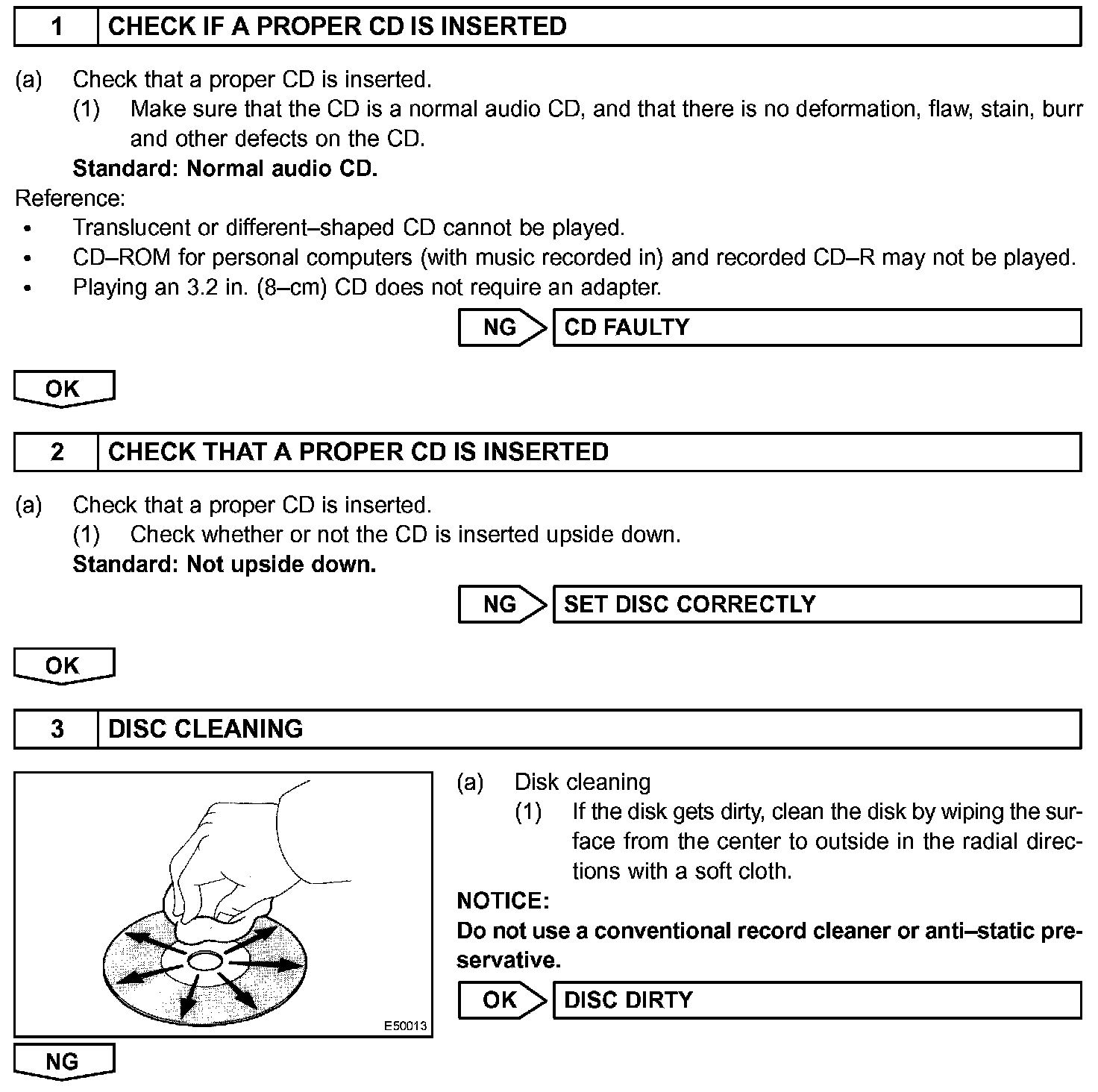

Step 1 - 3:

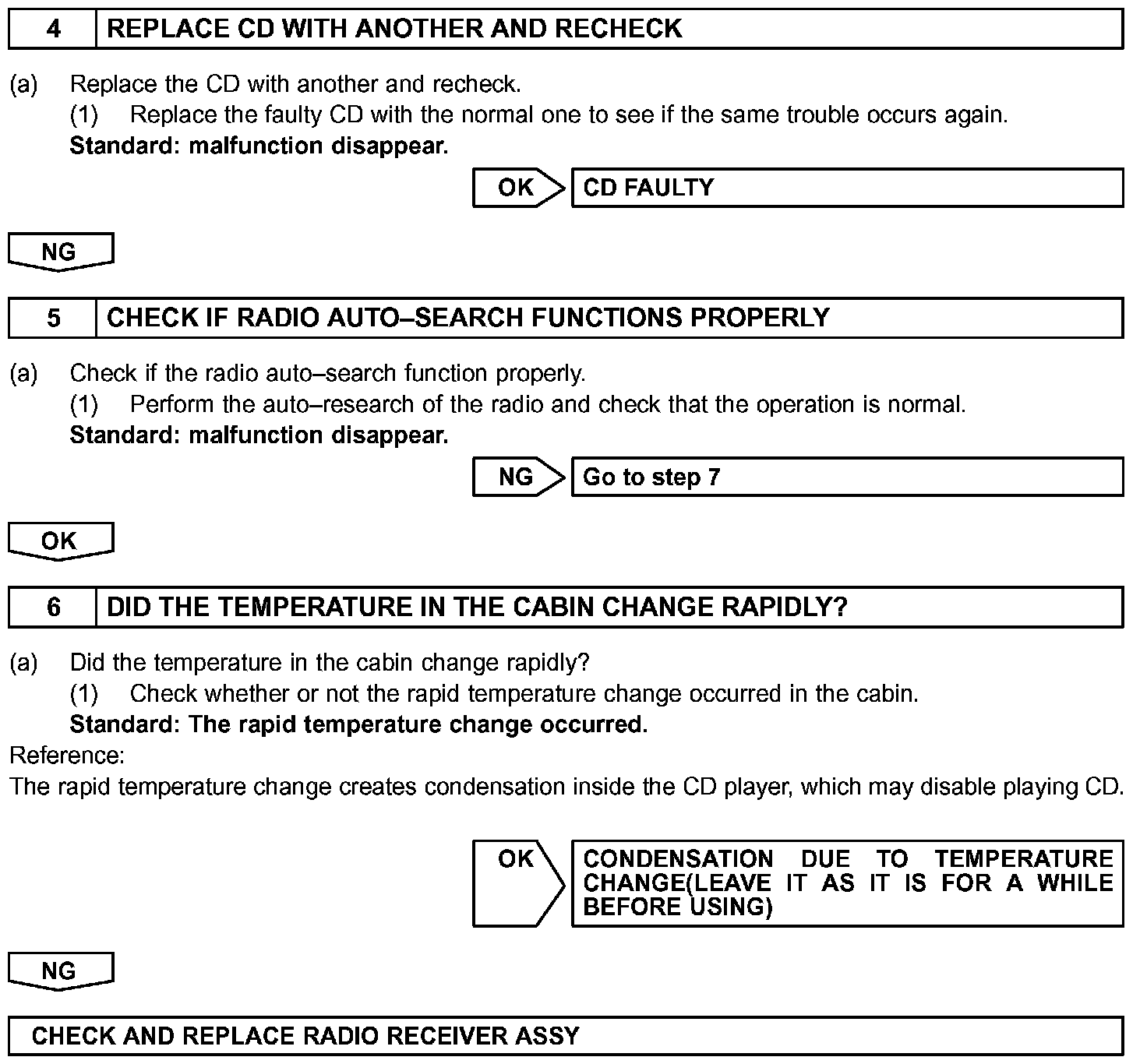

Step 4 - 6:

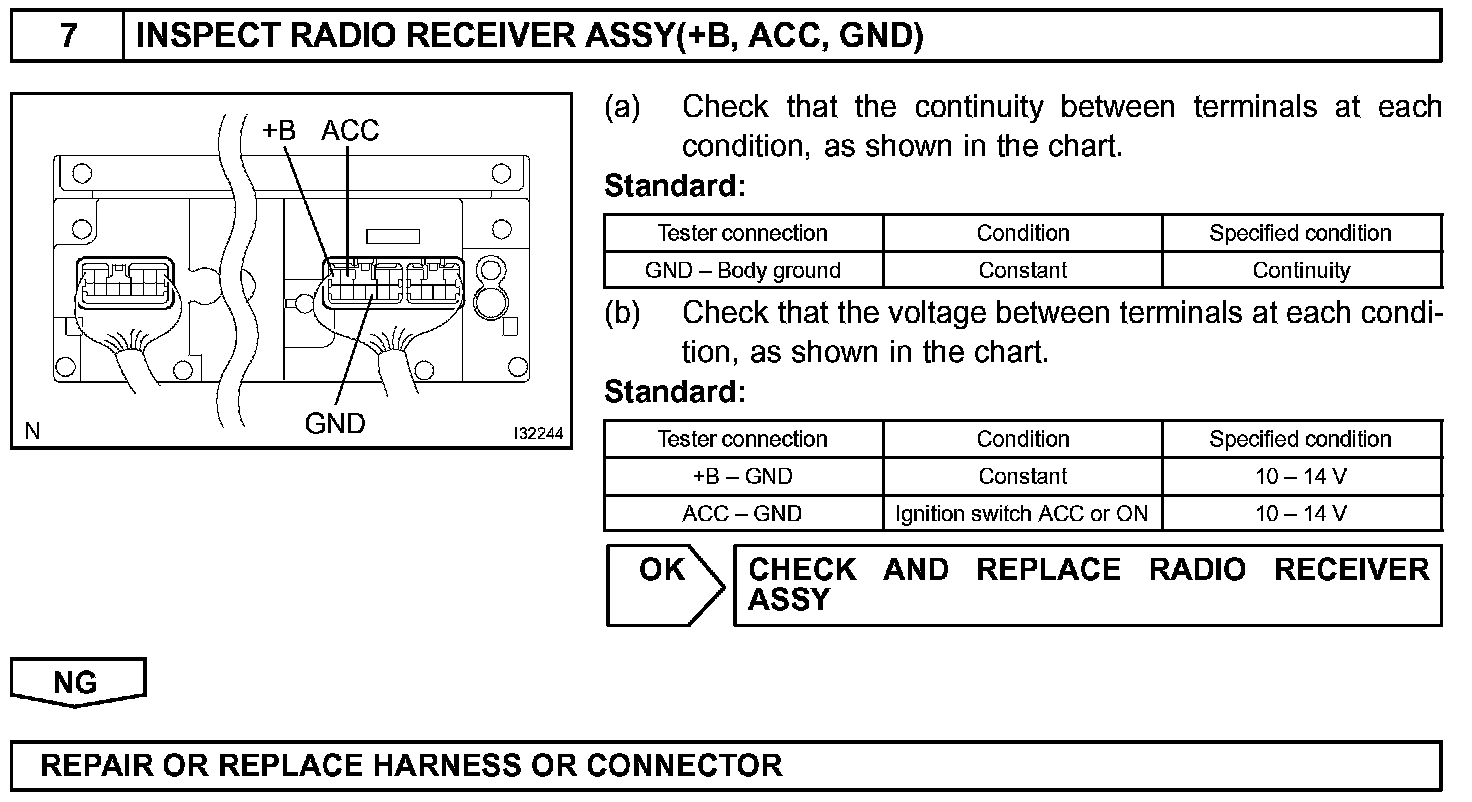

Step 7:

INSPECTION PROCEDURE
