CD Cannot Be Taken Out

CD CANNOT BE TAKEN OUT

Wiring Diagram:

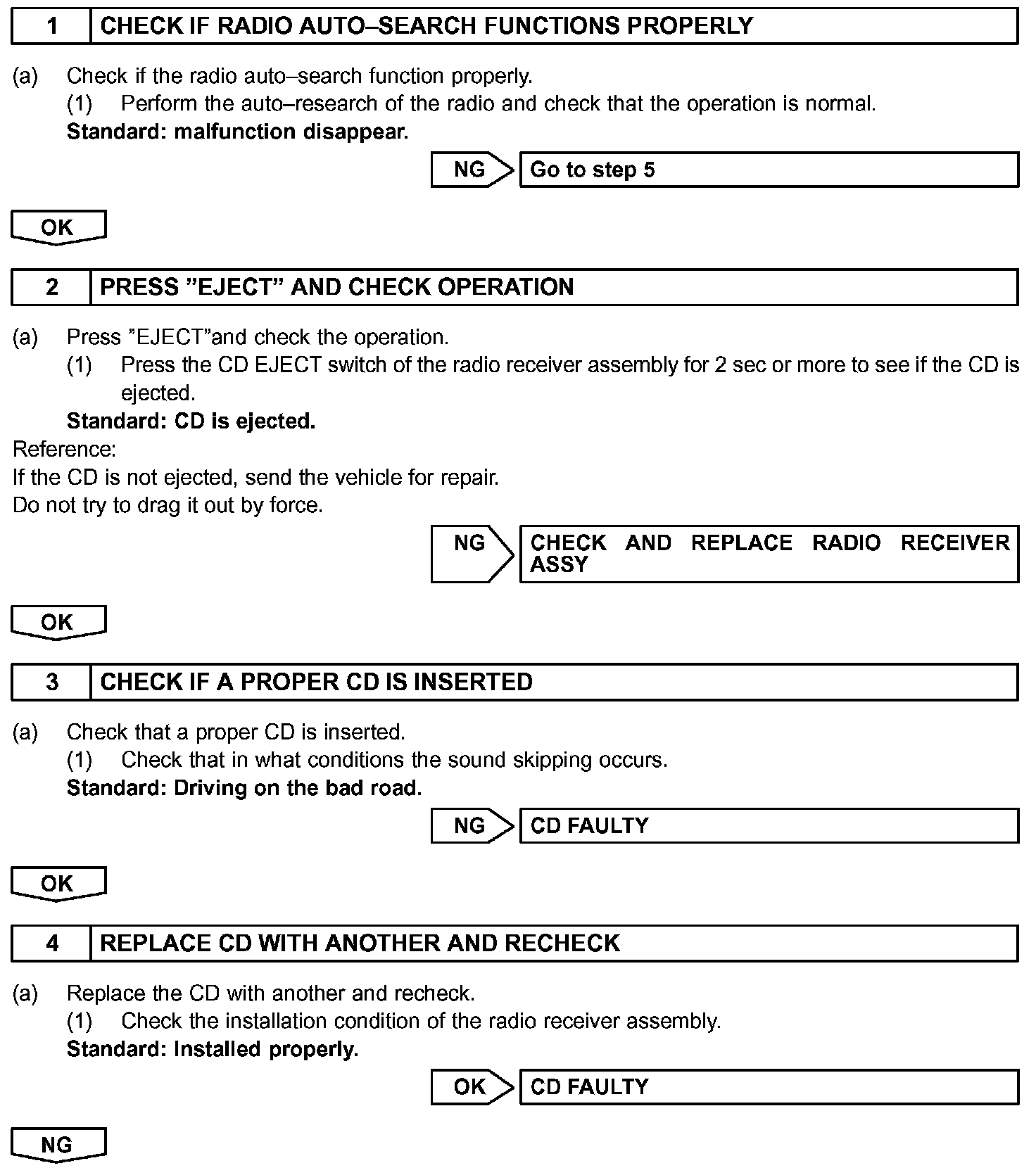

Step 1 - 4:

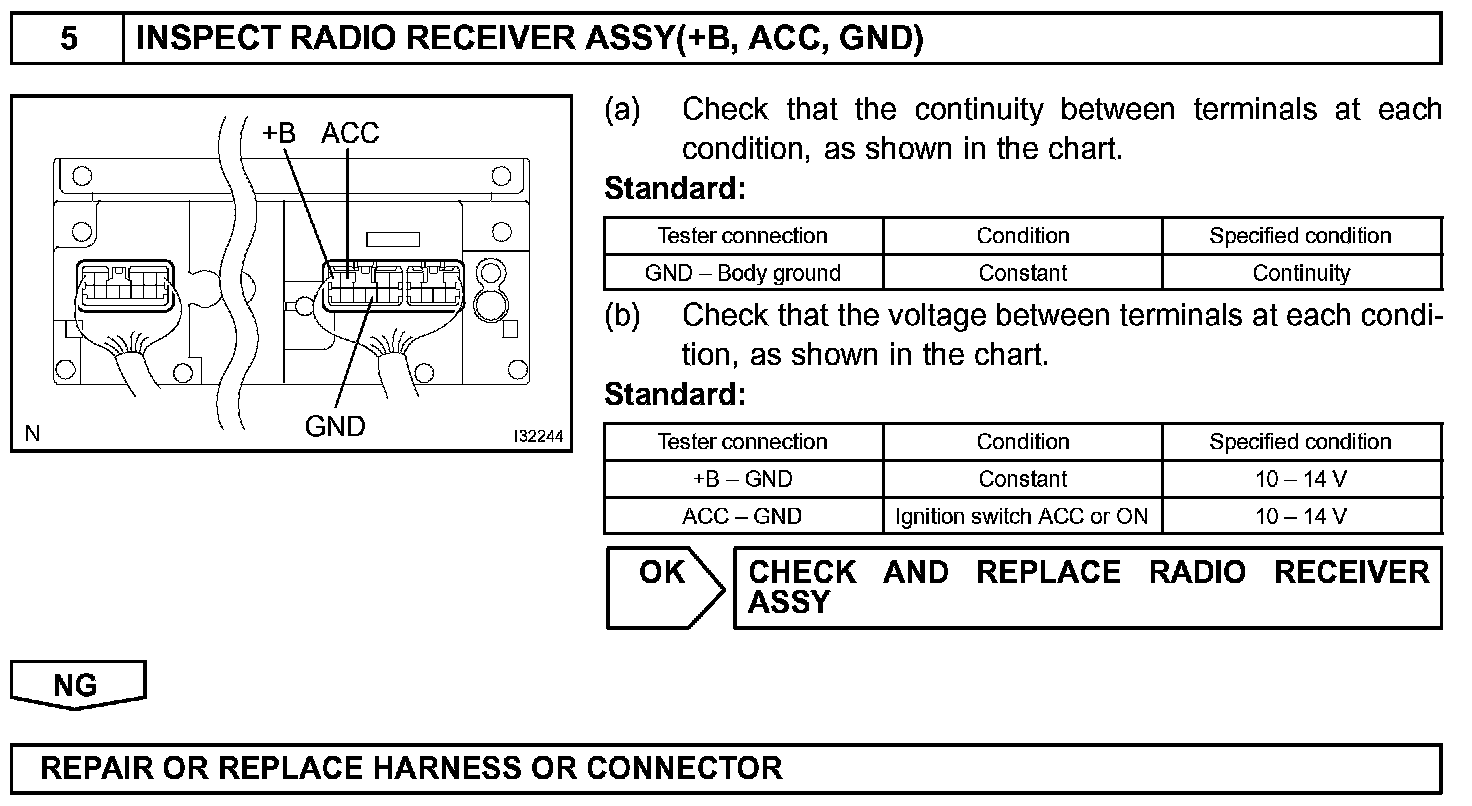

Step 5:

INSPECTION PROCEDURE
