Home >> Toyota >> 2004 >> Corolla L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Cassette Tape Cannot Be Ejected

Cassette Tape Cannot Be Ejected

CASSETTE TAPE CANNOT BE EJECTED




Wiring Diagram:

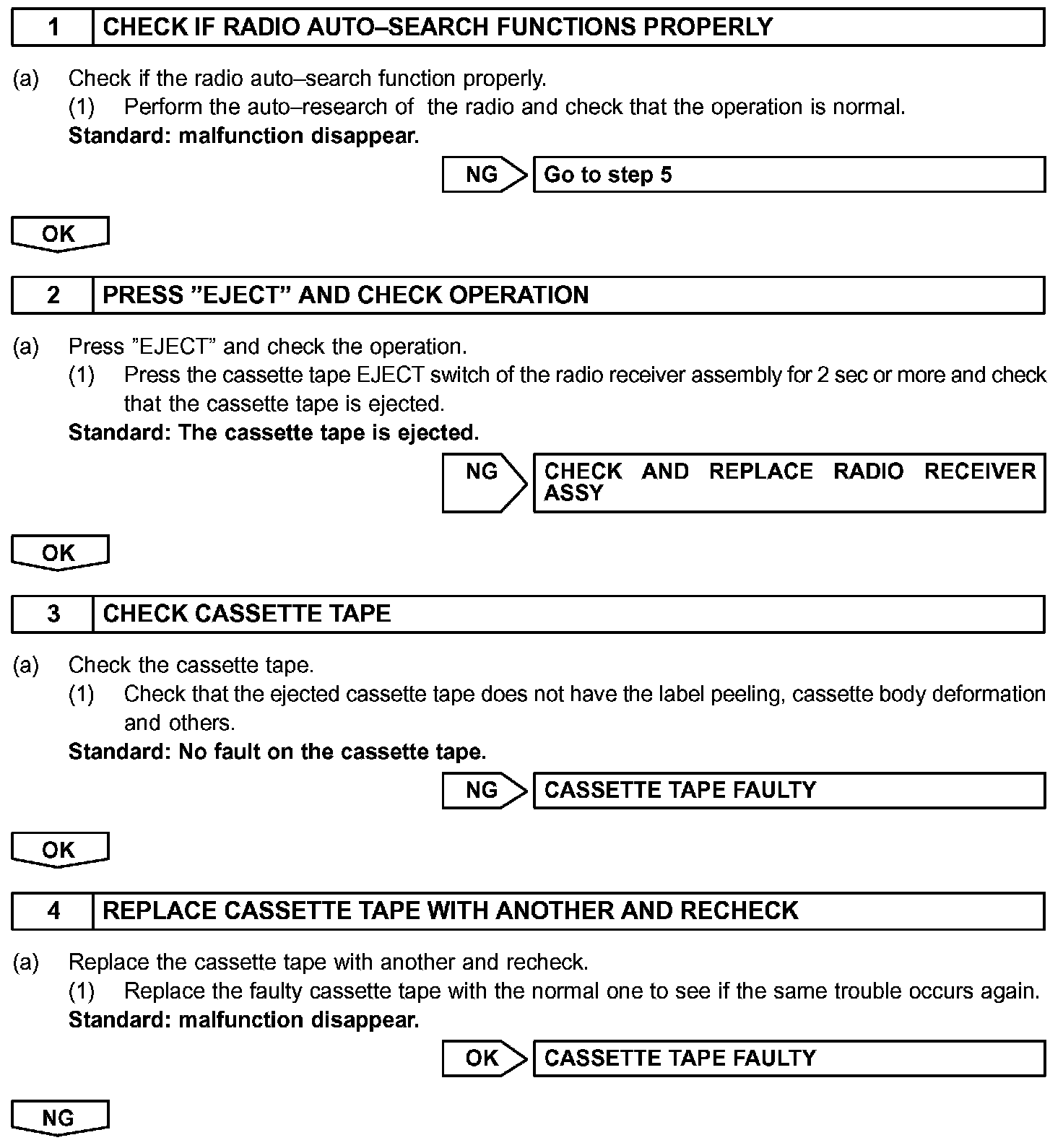

Step 1 - 4:

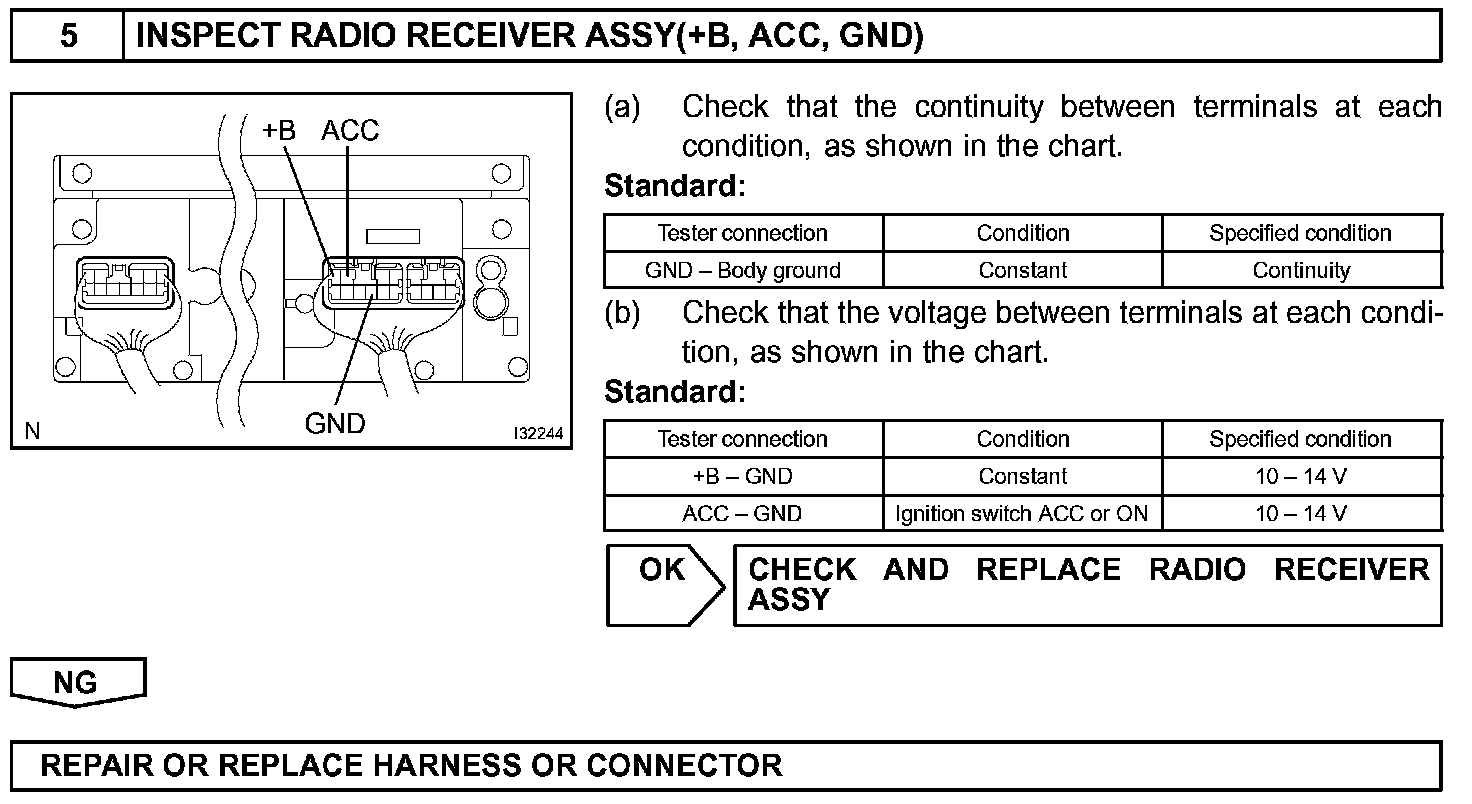

Step 5:




INSPECTION PROCEDURE
