Sound Quality Is Bad In All Modes (Volume Is Too Low)
Sound Quality Is Bad In All Modes (Volume Is Too Low)
SOUND QUALITY IS BAD IN ALL MODES (VOLUME IS TOO LOW)

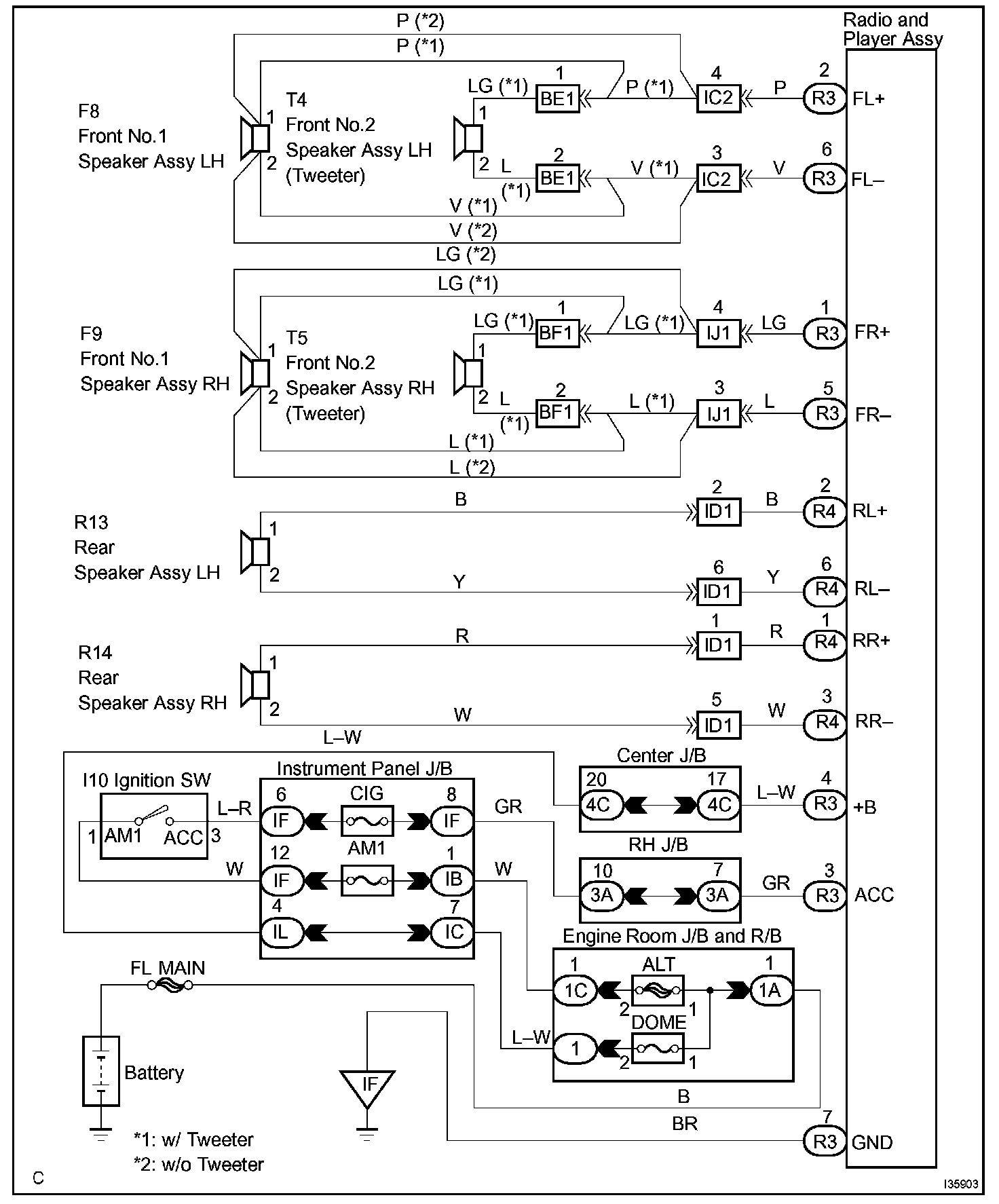

Wiring Diagram:

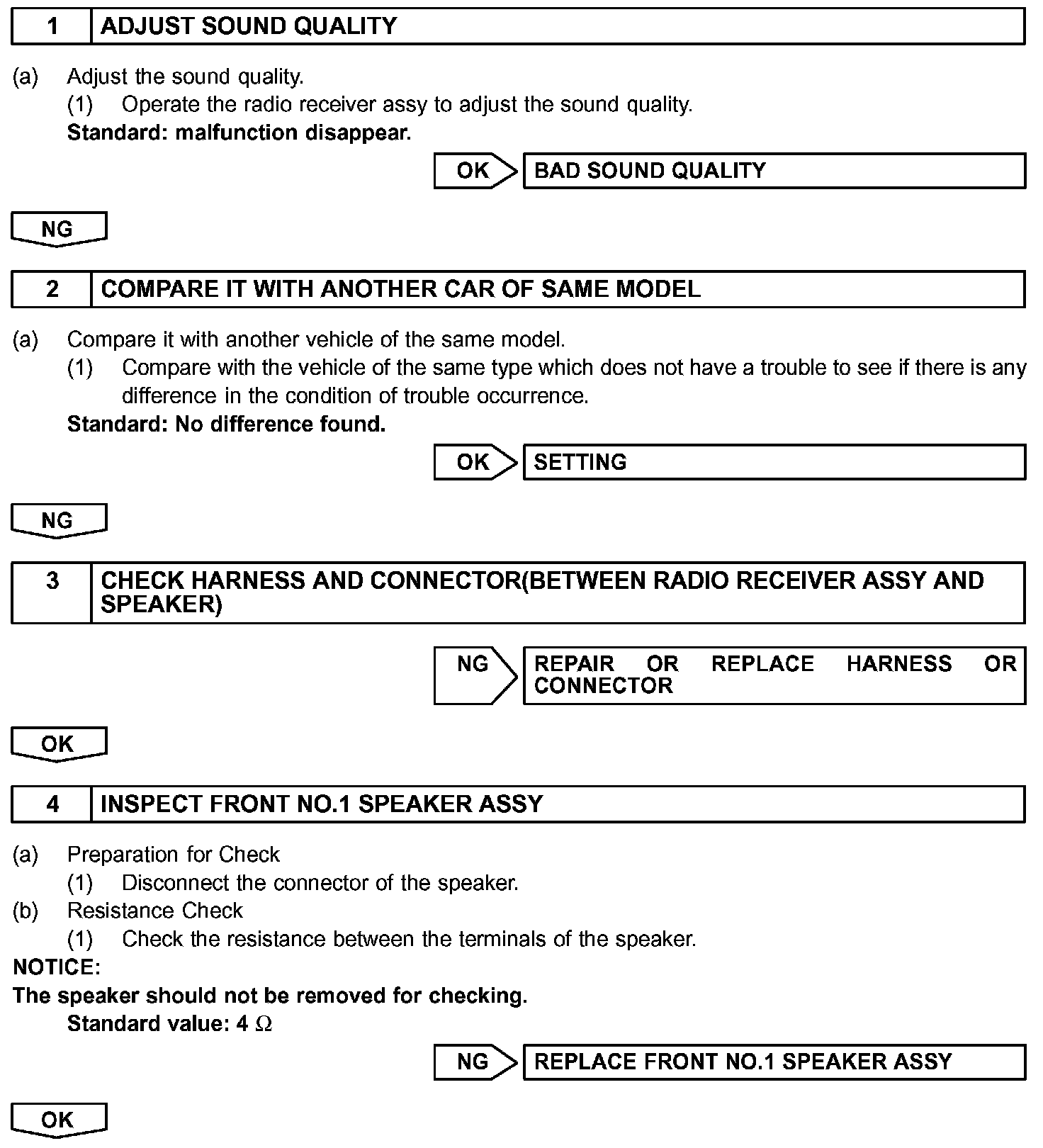

Step 1 - 4:

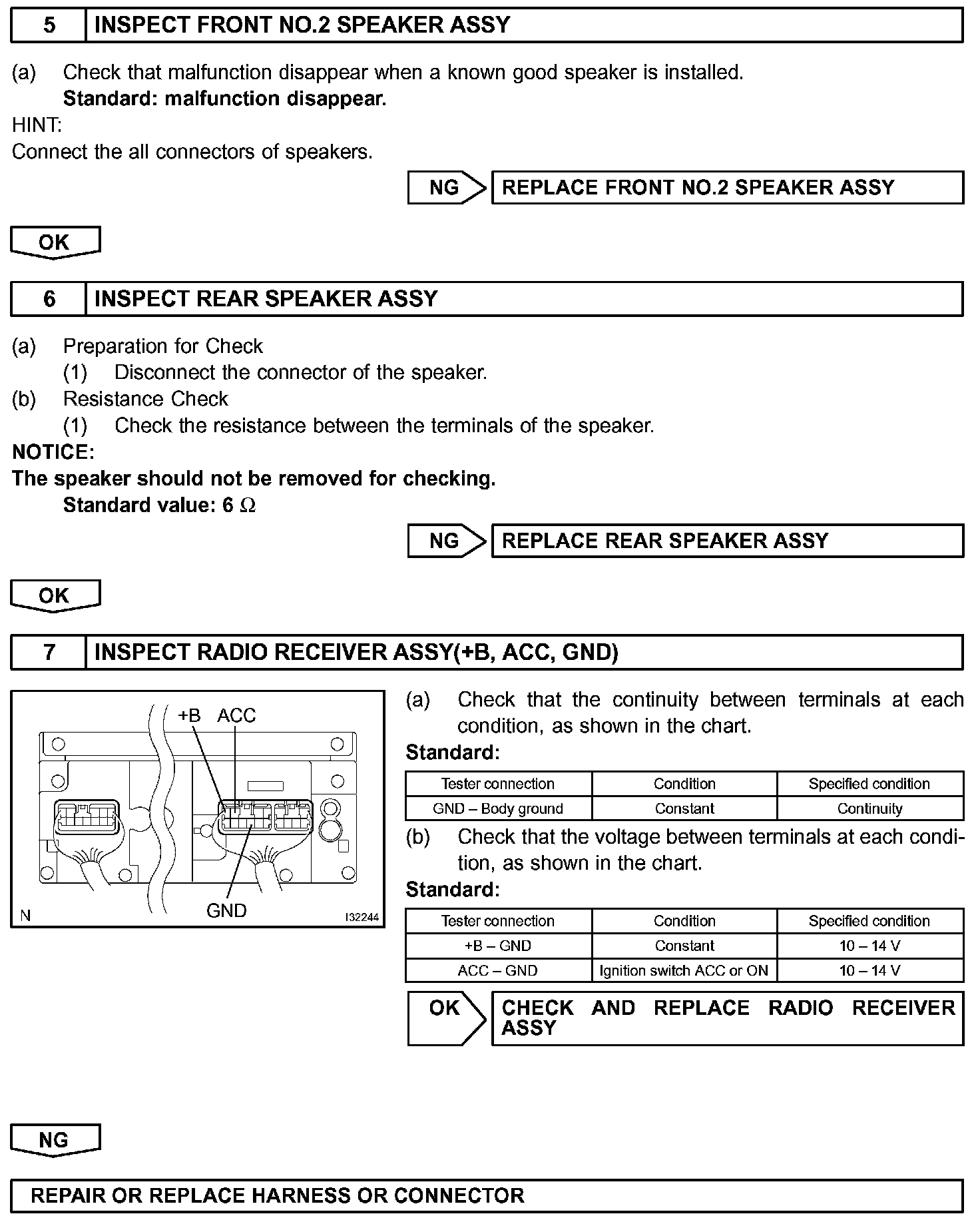

Step 5 - 7:
INSPECTION PROCEDURE
