Turning On Light Switch Does Not Light Up Night Time Illumination of Radio Receiver

TURNING ON LIGHT SWITCH DOES NOT LIGHT UP NIGHT TIME ILLUMINATION OF RADIO RECEIVER

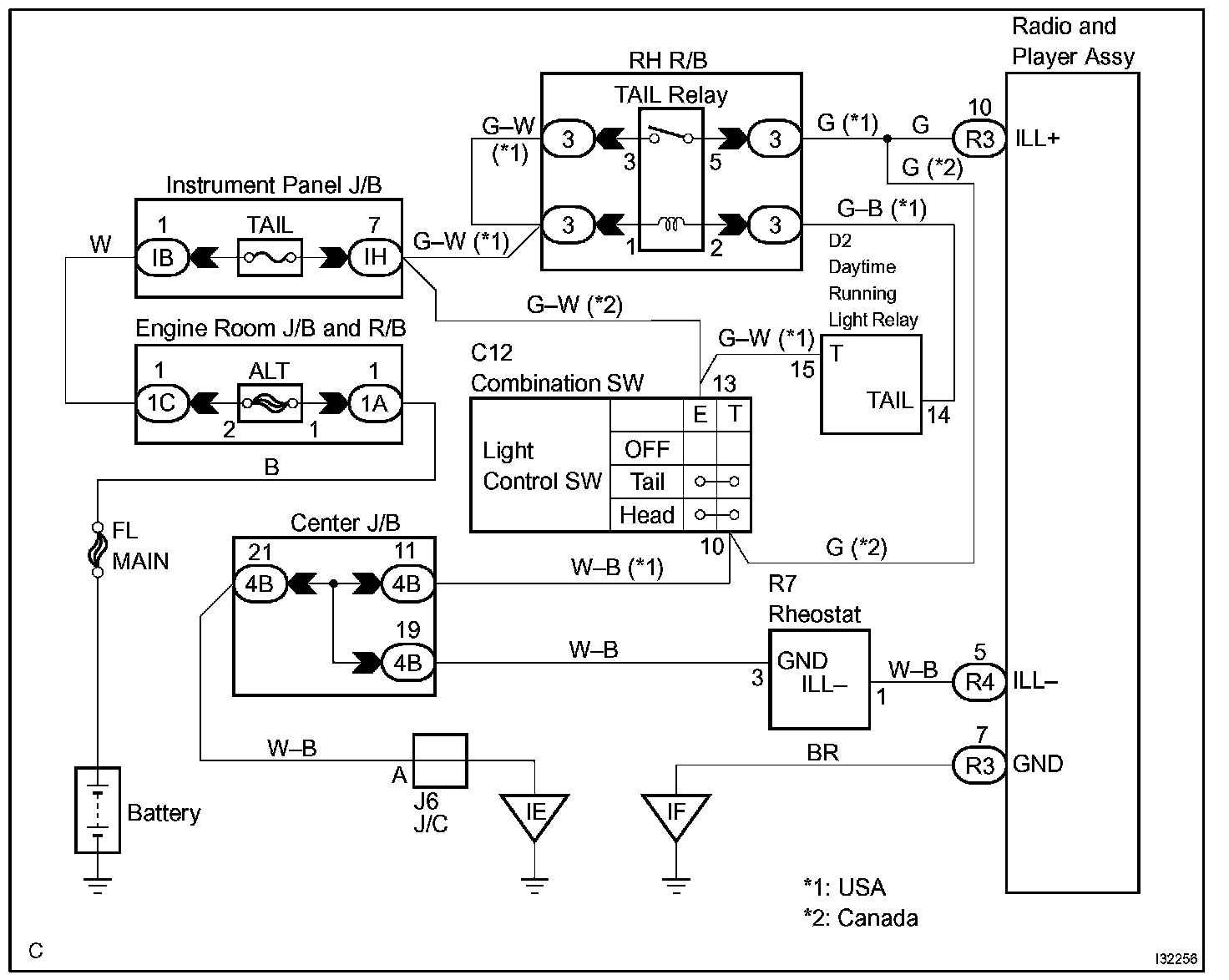

Wiring Diagram:

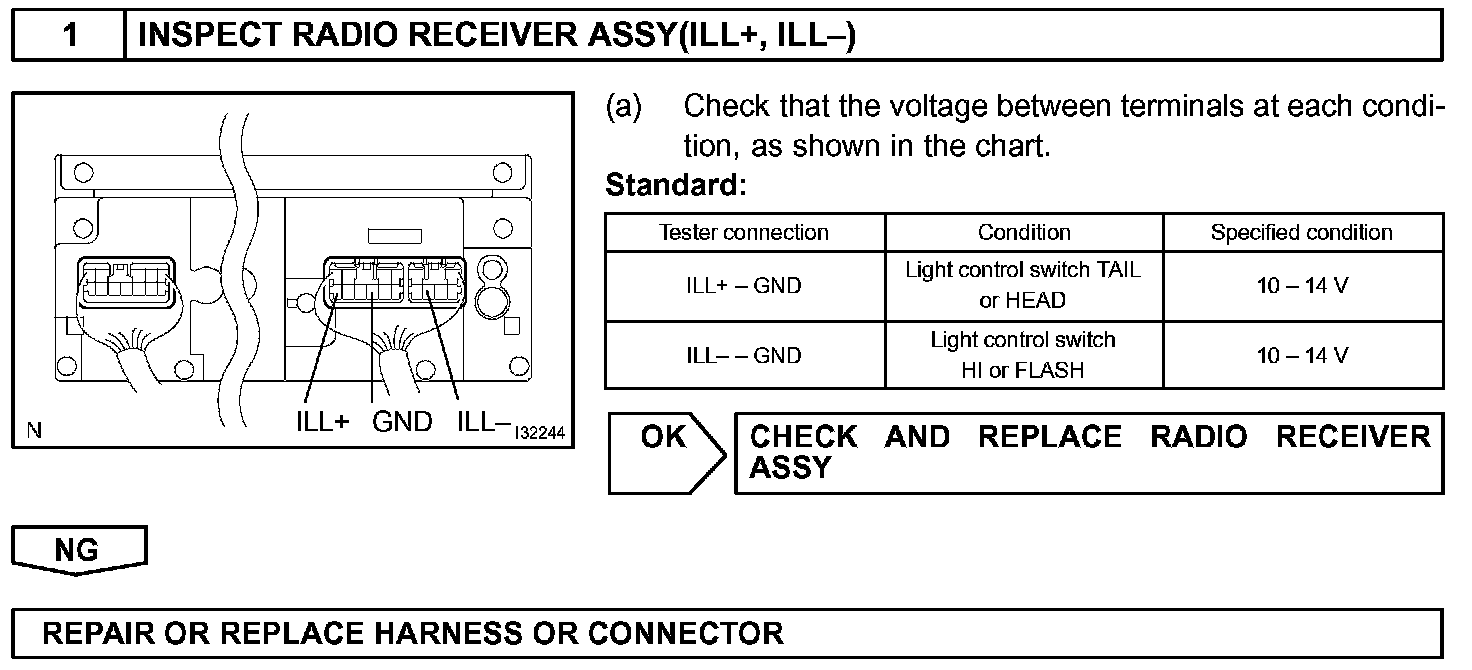

Step 1:




INSPECTION PROCEDURE
