Inspection

INSPECTION

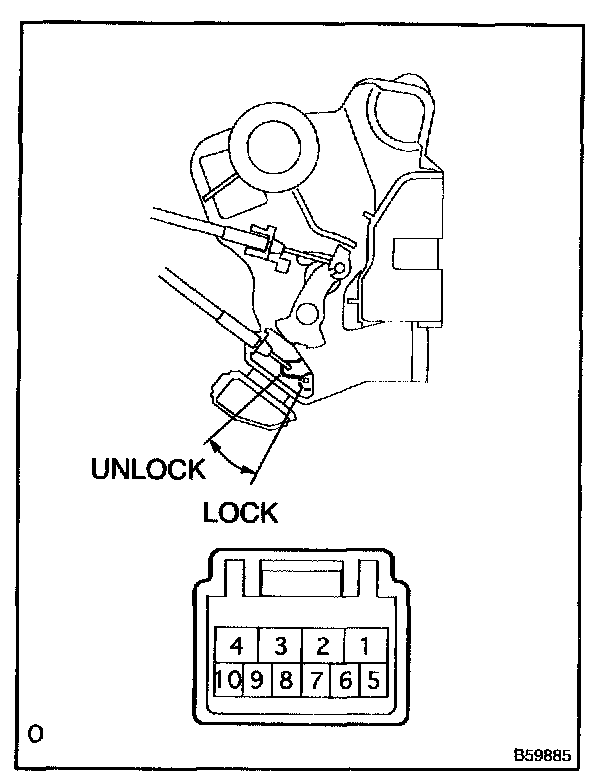

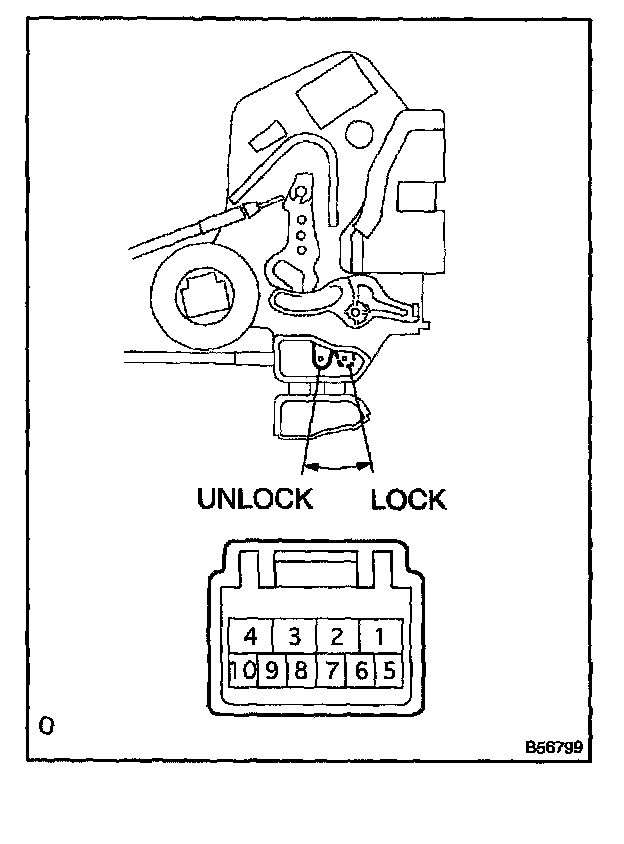

1. INSPECT DRIVER'S DOOR LOCK

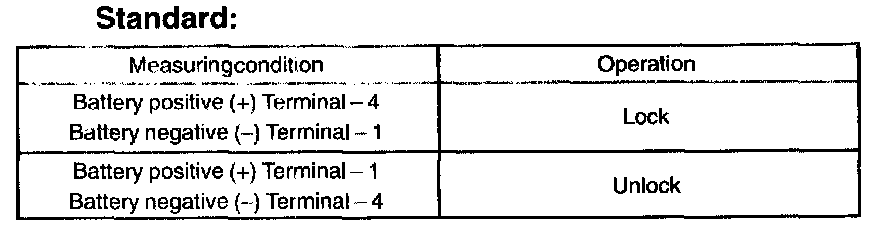

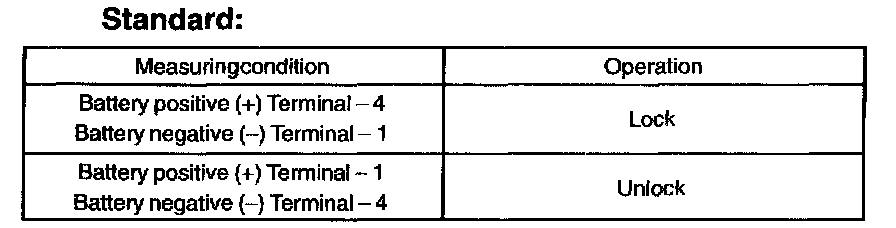

a. Inspect the door lock motor operation.
If the result is not as specified, replace the door lock assembly.

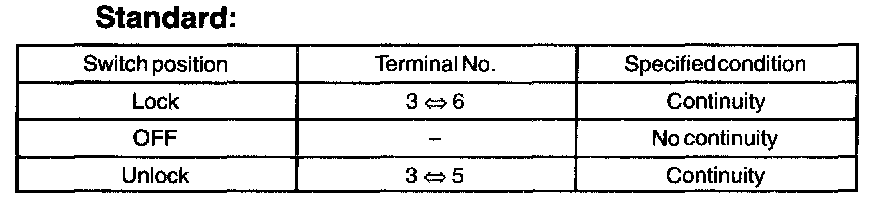

b. Inspect the door lock and unlock switch continuity.
If the result is not as specified, replace the door lock assembly.

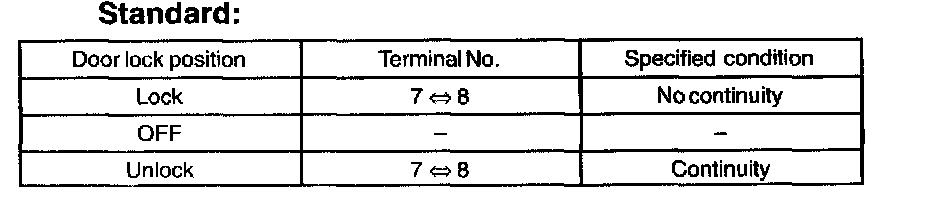

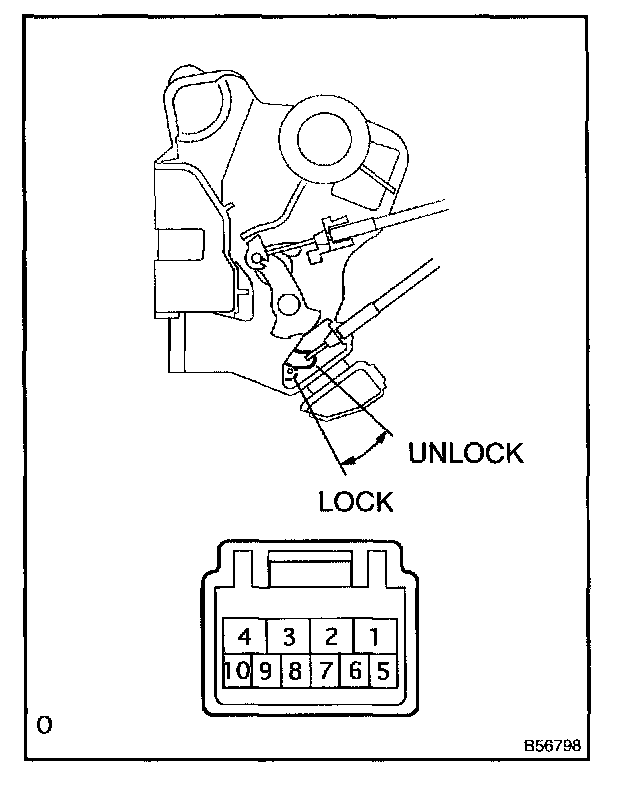

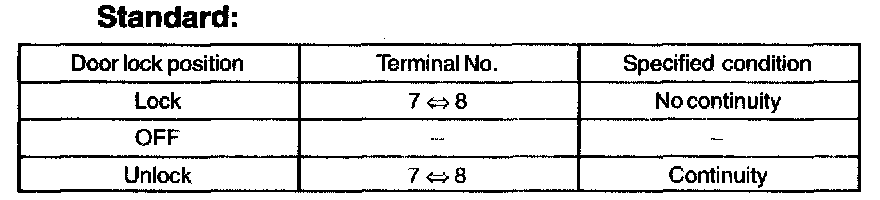

c. Inspect the position switch continuity.
If the result is not as specified, replace the door lock assembly.

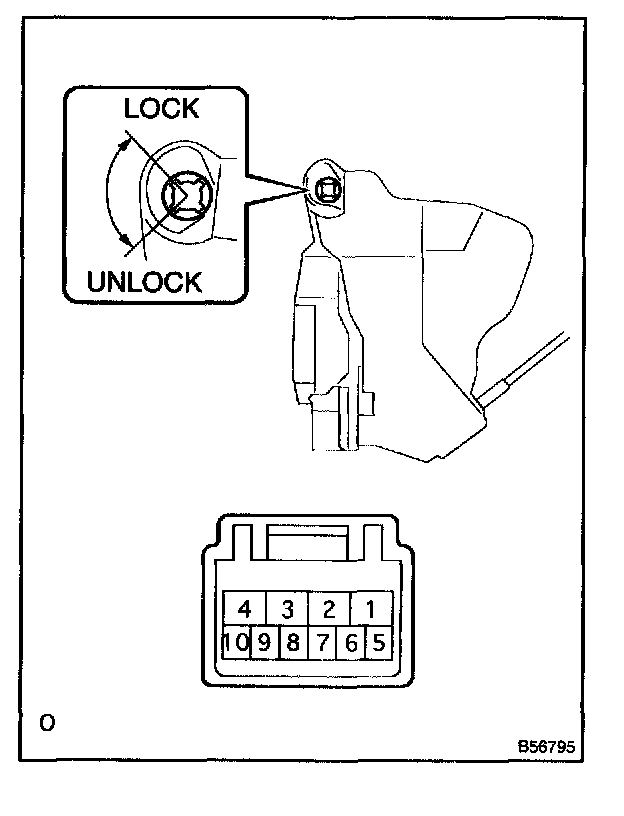

2. INSPECT PASSENGER'S DOOR LOCK

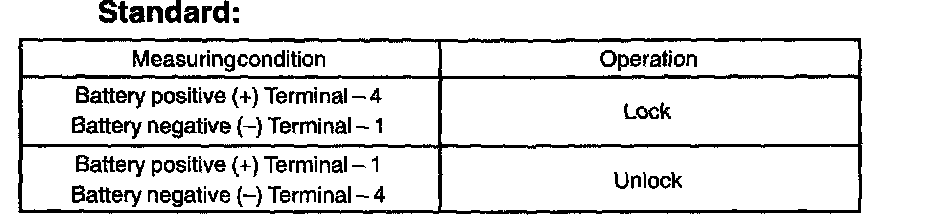

a. Inspect the door lock motor operation.
If the result is not as specified, replace the door lock assembly.







b. Inspect the door lock and unlock switch continuity.
If the result is not as specified, replace the door lock assembly.

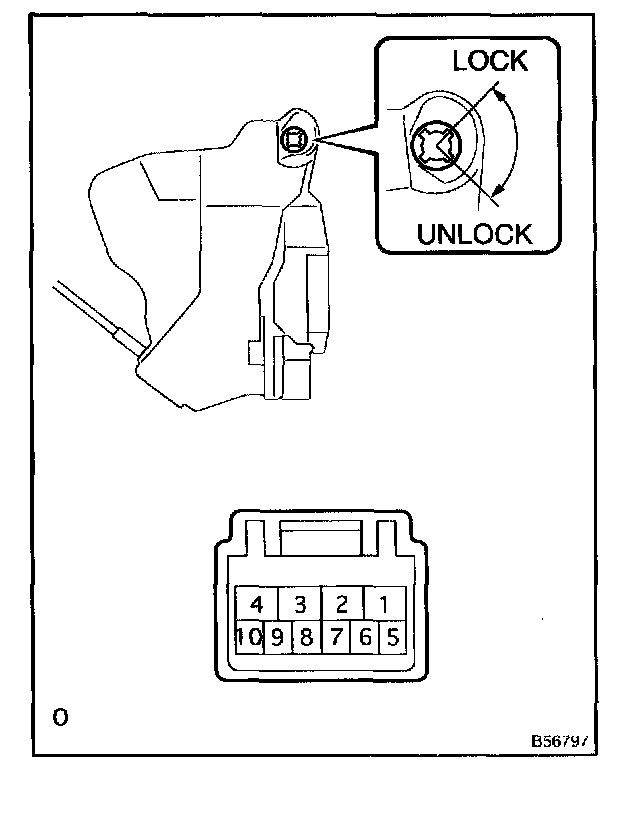

c. inspect the position switch continuity.
If the result is not as specified, replace the door lock assembly.

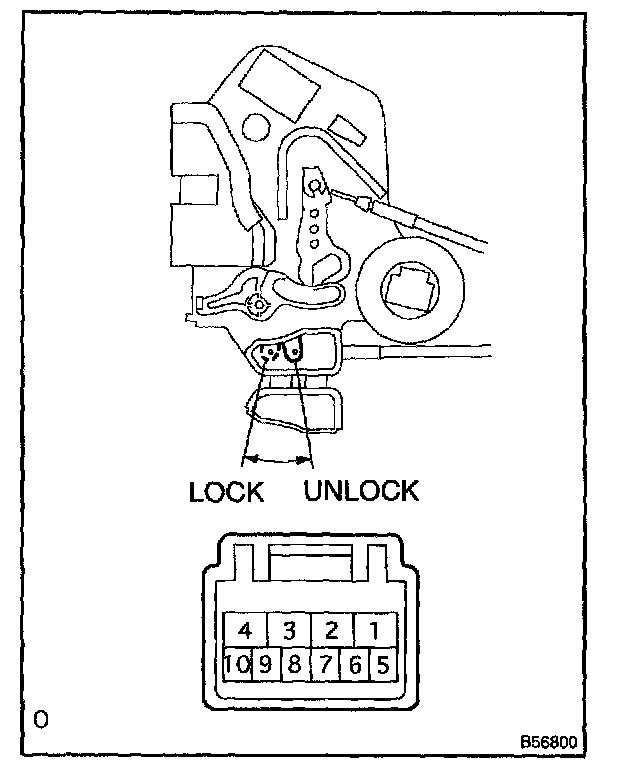

3. INSPECT REAR DOOR LOCK LH
a. Inspect the door lock motor operation.
If the result is not as specified, replace the door lock assembly.







4. INSPECT REAR DOOR LOCK RH
a. Inspect the door lock motor operation.
If the result is not as specified, replace the door lock assembly.

5. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY

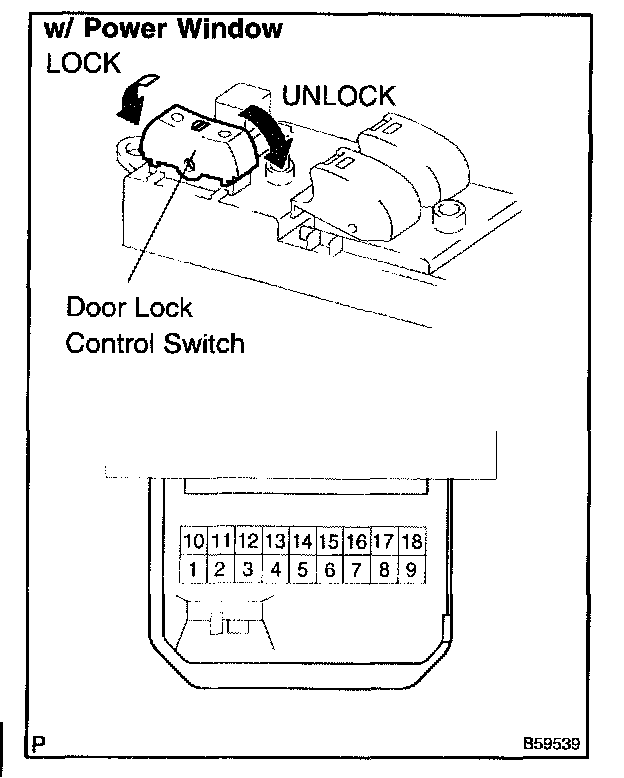

a. W/ Power window:

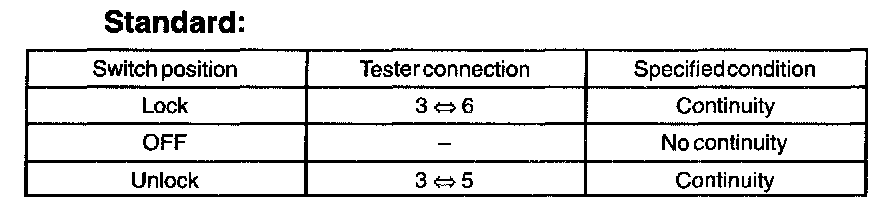

Inspect the door lock control switch continuity.
If the result is not as specified, replace the switch.

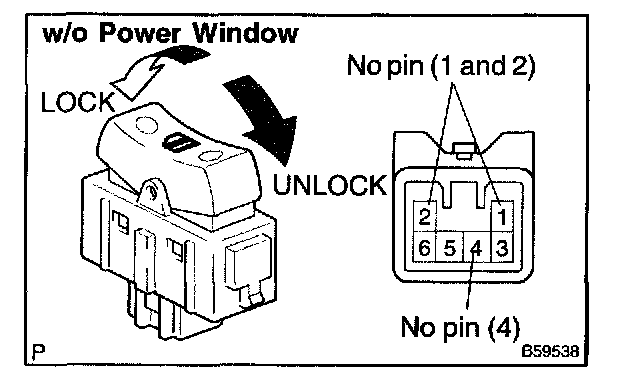

b. w/o Power window:

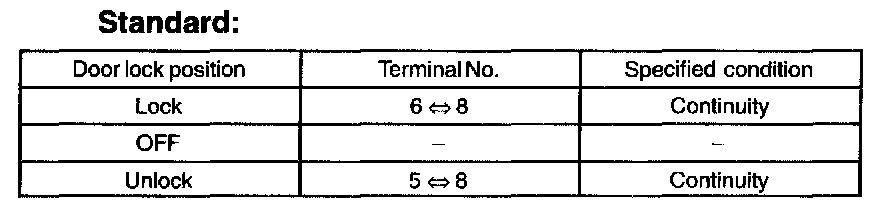

Inspect the door lock control switch continuity.
If the result is not as specified, replace the switch.







6. INSPECT DOOR CONTROL SWITCH ASSY

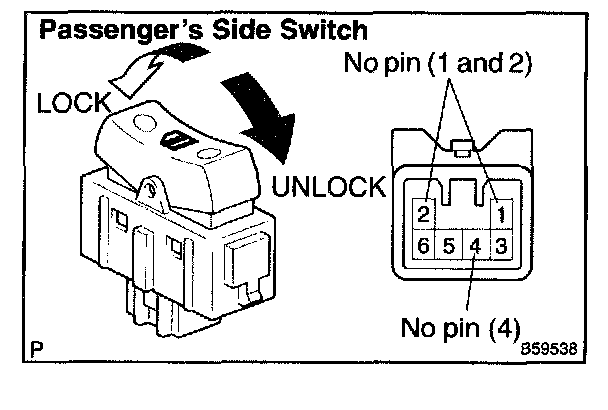

a. Passenger's side switch:

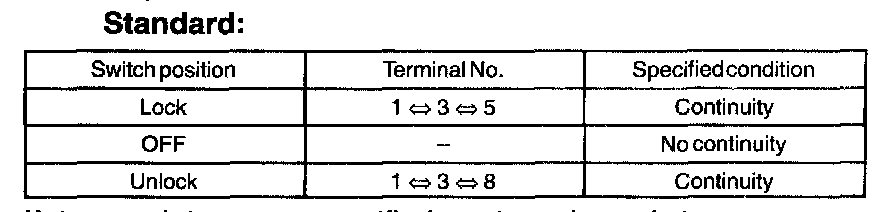

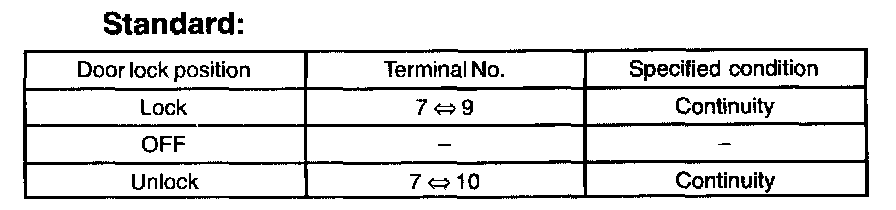

Inspect the door lock control switch continuity.
If the result is not as specified, replace the switch.
