TERMINALS OF ECU

Terminals Of ECU/Pinouts:

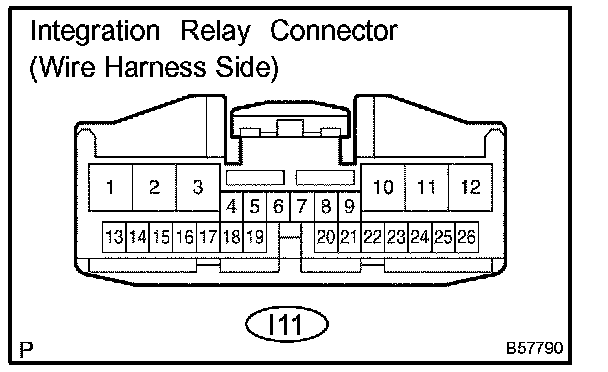

1. INSPECT INTEGRATION RELAY

Terminals Of ECU/Pinouts:

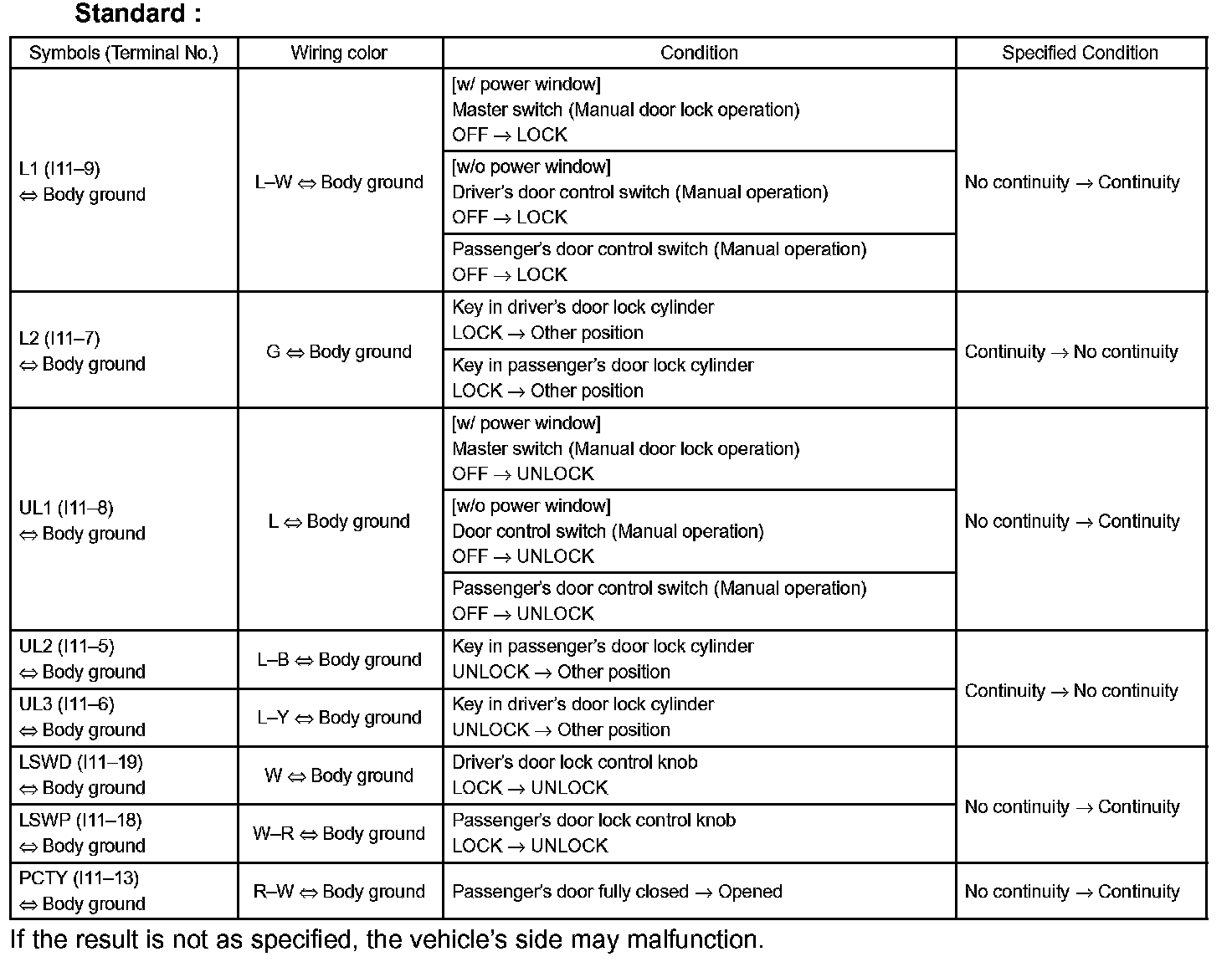

a. Disconnect the connector and check the continuity of each terminal of the disconnected connector.

Terminals Of ECU/Pinouts:

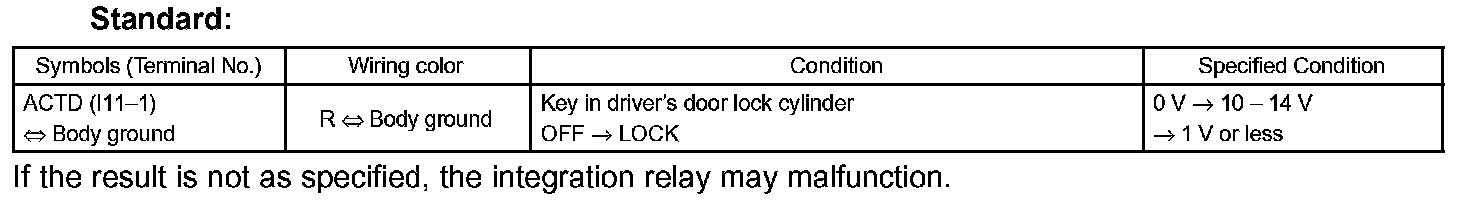

b. Reconnect the connector and check each terminal.

Terminals Of ECU/Pinouts:

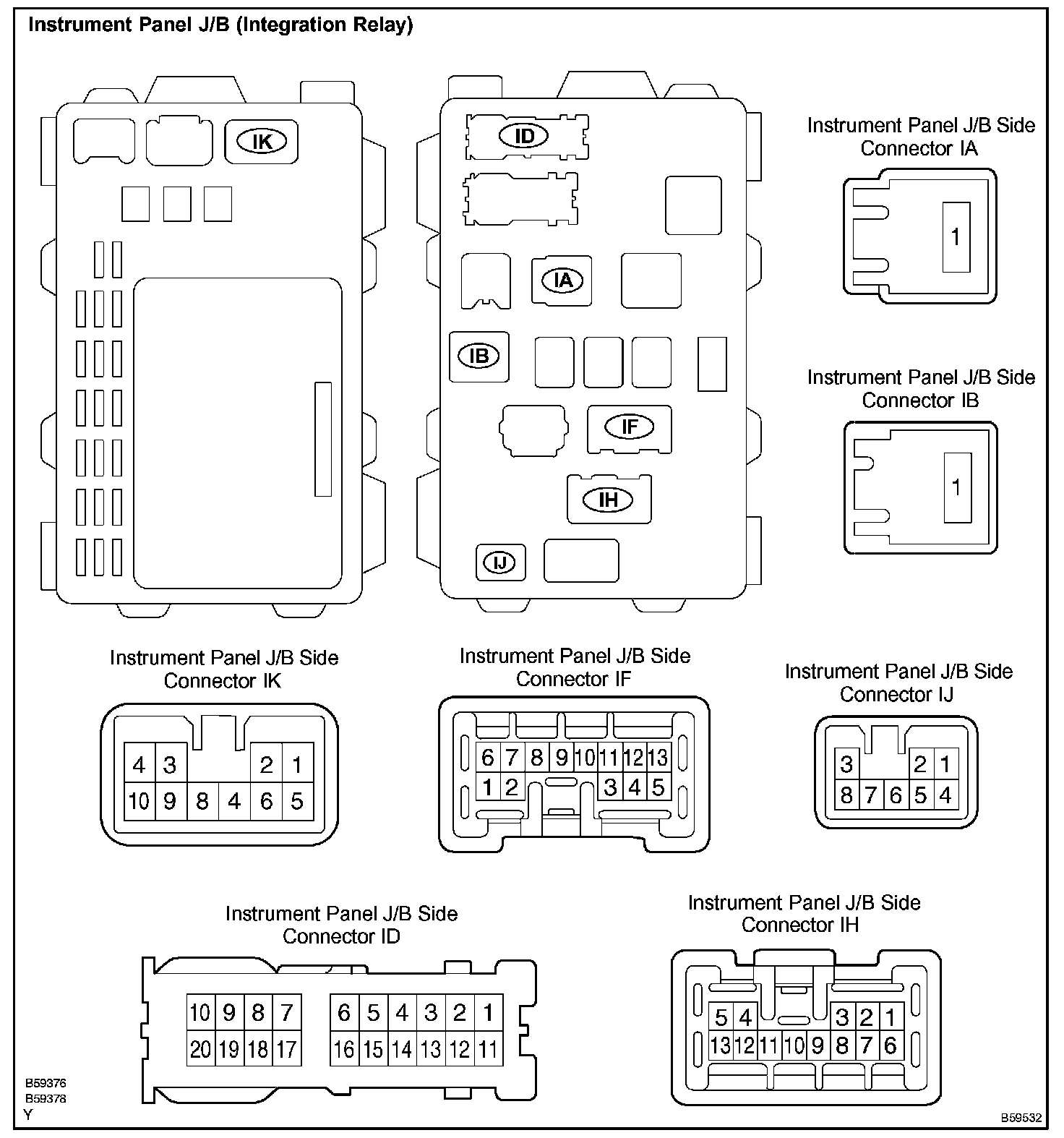

2. INSPECT INSTRUMENT PANEL J/B (INTEGRATION RELAY)

a. Inspect the DOOR fuse.
b. Disconnect connectors ID, IF, IH and IJ of the instrument panel J/B.

Terminals Of ECU/Pinouts:

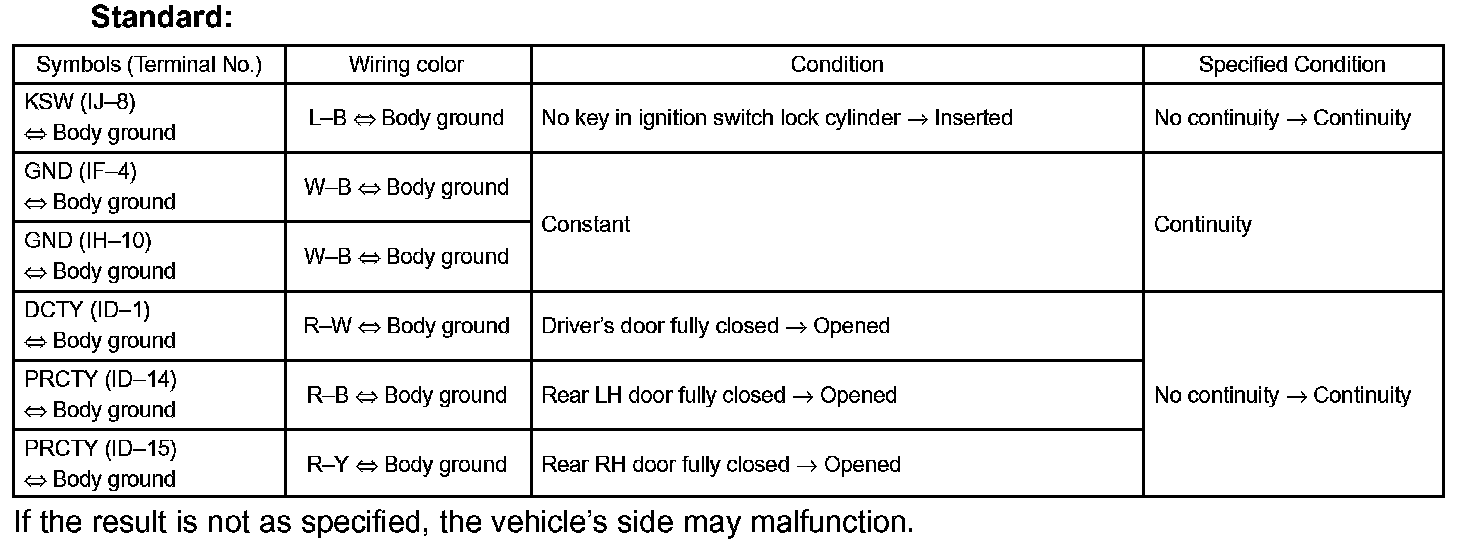

c. Check each terminal of the disconnected connectors.

Terminals Of ECU/Pinouts:

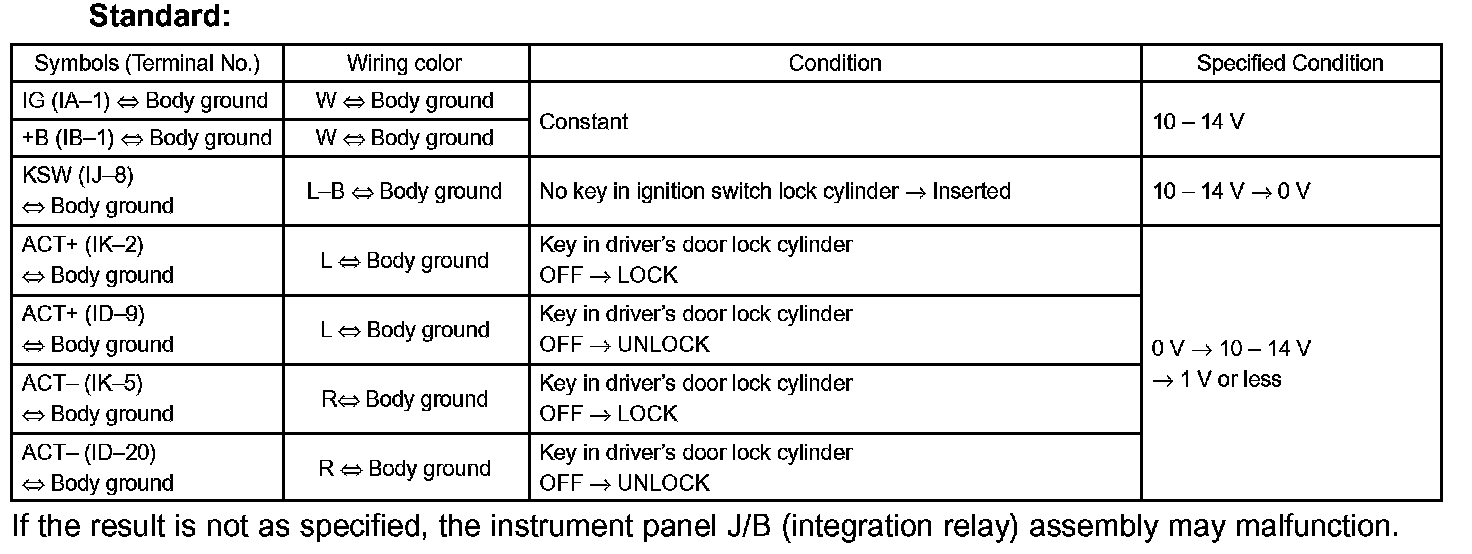

d Reconnect the connectors and check each terminal.
