Seats: Locations

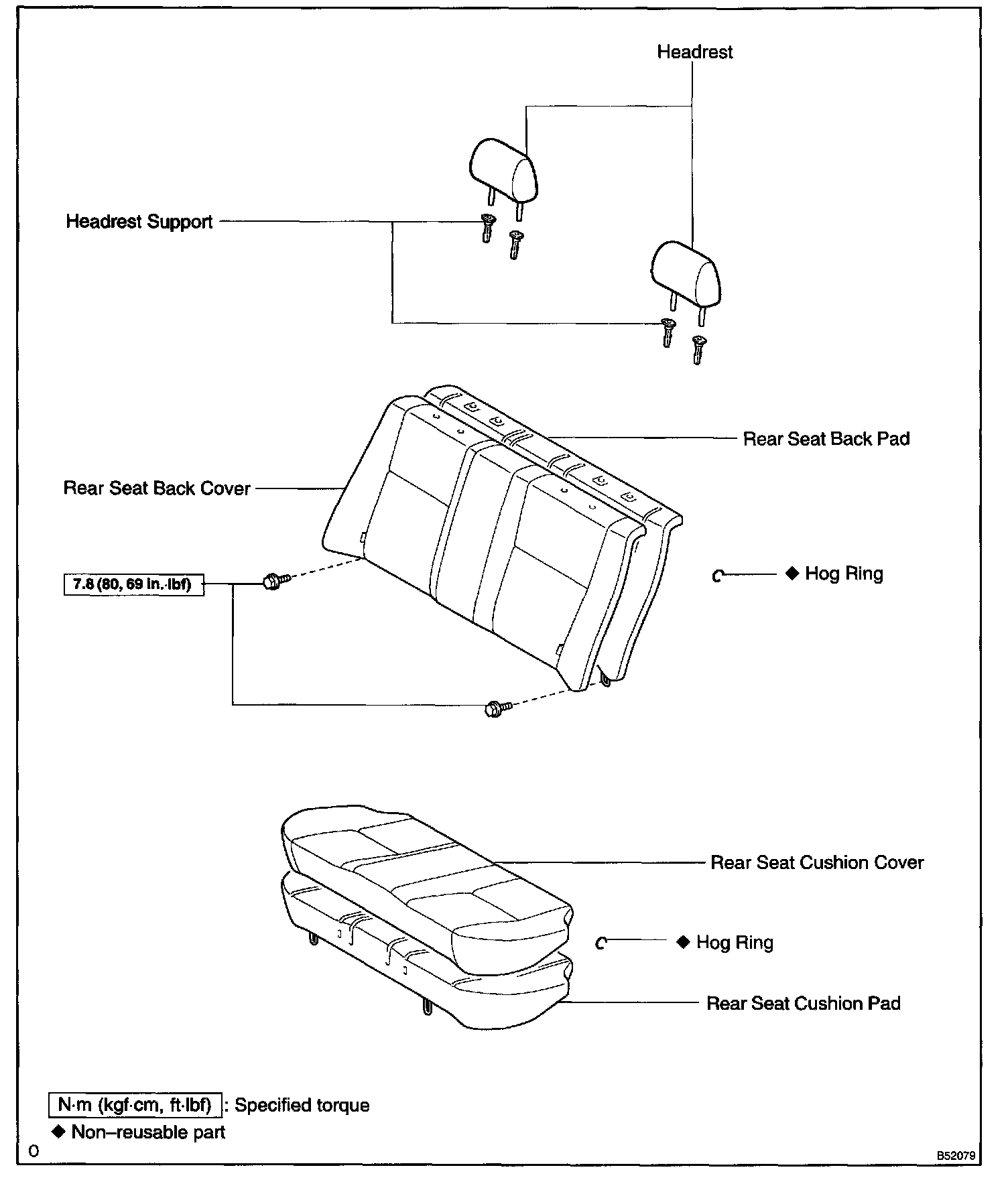

Rear Seat (Sedan With Separate Type):

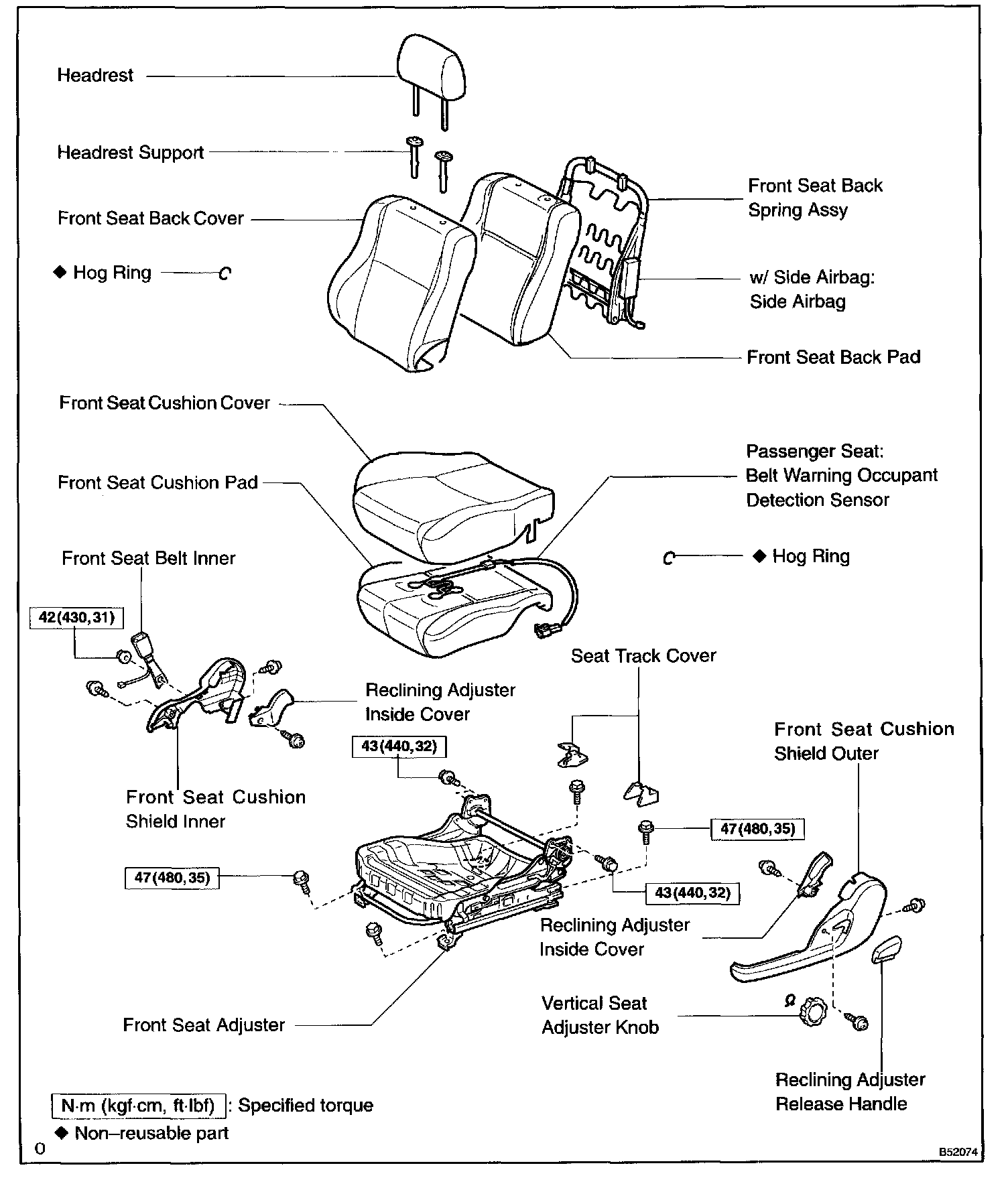

Front Seat:

Rear Seat Assy (Sedan With Bench Type):
