Without Scan Tool
SPEED SENSOR SIGNAL CHECKHINT: If the ignition switch is turned from ON to ACC or LOCK during test mode, DTC will be erased.
In case of not using hand-held tester:
Check the speed sensor signal.
1. Turn the ignition switch to ON.

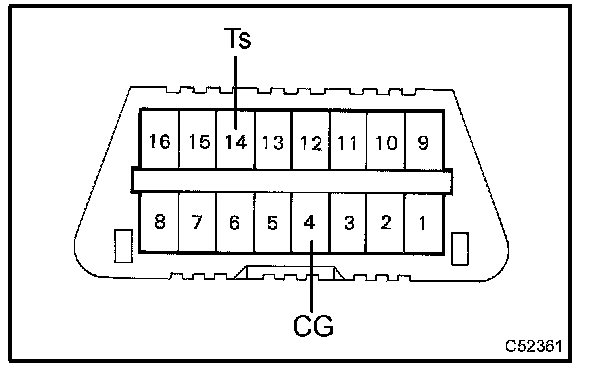

2. Using SST, it connects the terminal Ts and CG of DLC3.
SST 09843-18040
3. Start the engine.
4. Check that the ABS warning light blinks.
HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit and Ts circuit.
5. Drive the vehicle straight forward at the speed of 45 km/h (28 mph) or over for several seconds and check that the ABS warning light comes off.
HINT: The sensor check may not be completed if the wheels spin or the steering wheels steered during check.
6. Stop the vehicle.
7. Using SST, it connects the terminal Tc and CG of the DLC3.
SST 09843-18040

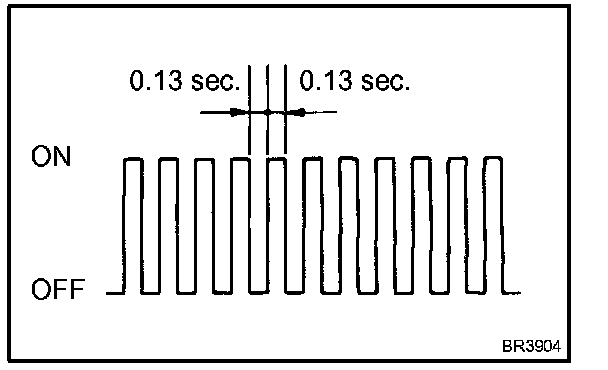

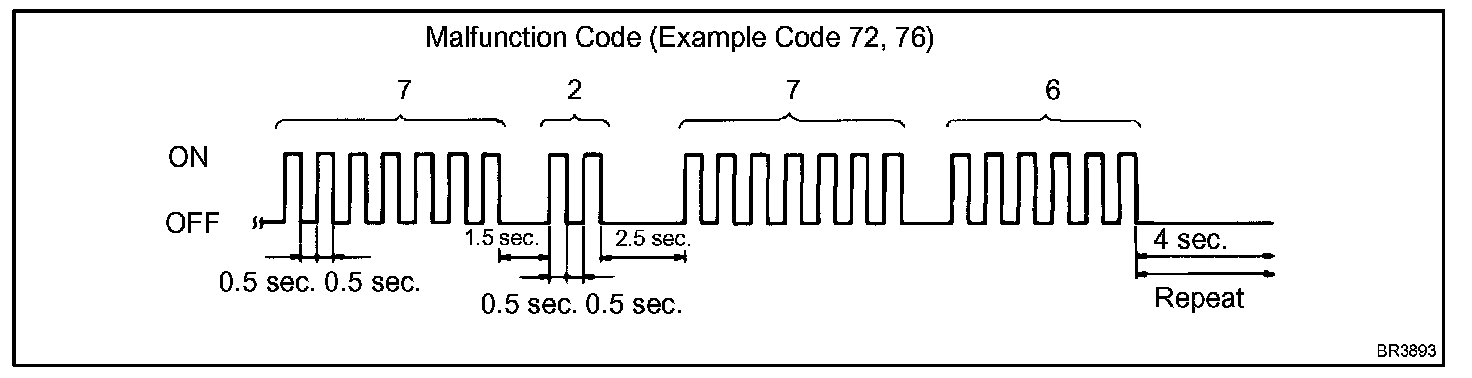

8. Read the number of blinks of the ABS warning light.
HINT:
- See the list of DTC.
- If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
- If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed.
9. After performing the check, turn the ignition switch to OFF, and remove the SST from the DLC3.
SST 09843-18040
