Without Scan Tool

CHECK THE DTC




a. Release the parking brake lever.
b. Check the warning lights.
When the ignition switch is turned ON, check that the ABS warning light and brake warning light goes on for 3 sec.

HINT:
- When the parking brake is applied or the level of the brake fluid is low, the brake warning light is lit.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit or brake warning light circuit.

c. In case of not using hand-held tester:
Check the DTC.




1. Using SST, it connects terminal Tc and CG of DLC3.
SST 09843-18040
2. Turn the ignition switch to ON.
3. Read the DTC from the ABS warning light on the combination meter.






HINT:
- If not code appears, inspect the diagnostic circuit or ABS warning light circuit.

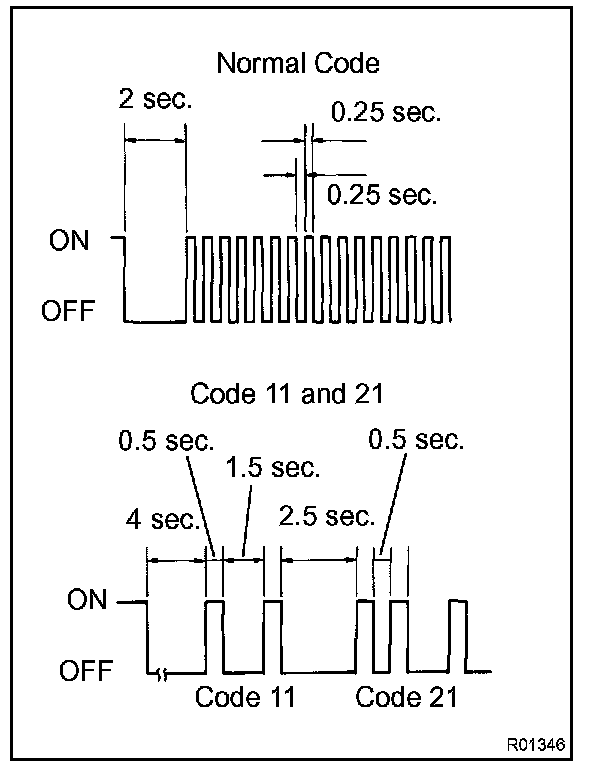

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown.

4. Codes are explained in the code table.

If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC will be displayed 1st.

5. After completing the check, remove the SST from the DLC3.
SST 09843-18040
