Speed Sensor, Rear

SKID CONTROL SENSOR
REPLACEMENT

HINT: Replace the RH side by the same procedure as the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY
3. DISCONNECT SKID CONTROL SENSOR WIRE

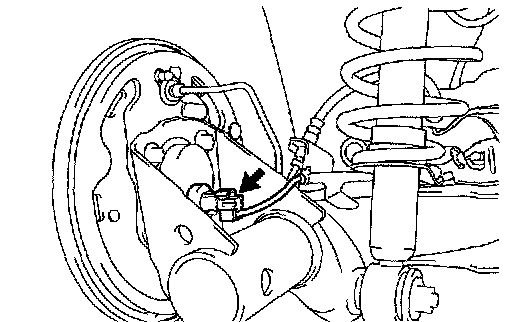

a. Disconnect the skid control sensor wire connector from the skid control sensor.
4. REMOVE REAR AXLE HUB & BEARING ASSY LH





5. REMOVE SKID CONTROL SENSOR
a. Mount the rear axle hub in a soft jaw vise.

NOTICE: Replace the axle hub assembly if it is dropped or a strong shock is given to it.

b. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST

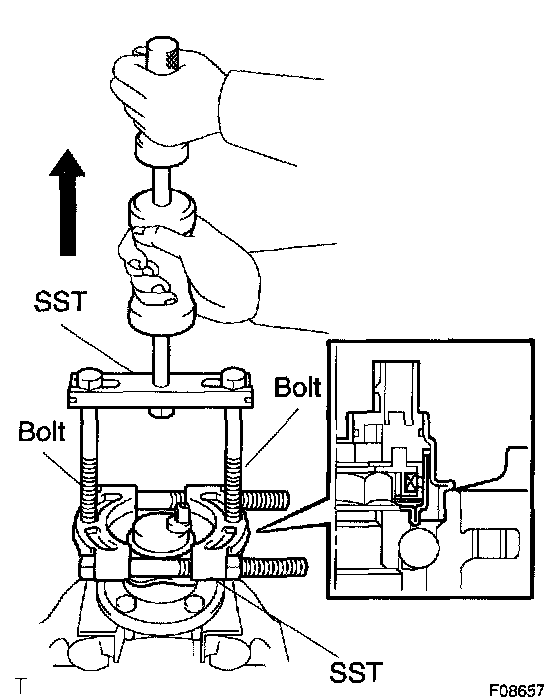

c. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the rear axle hub.
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

NOTICE:
^ If a damage is inflicted to the sensor rotor, replace the axle hub assembly.
^ Do not scratch the contacting surface of axle hub and speed sensor.

6. INSTALL SKID CONTROL SENSOR
a. Clean the contacting surface of the axle hub and a new speed sensor.

NOTICE: Do not stick any foreign objects to the sensor rotor.





b. Place the speed sensor on the axle hub so that the connector makes the lowest position under the on-vehicle condition.

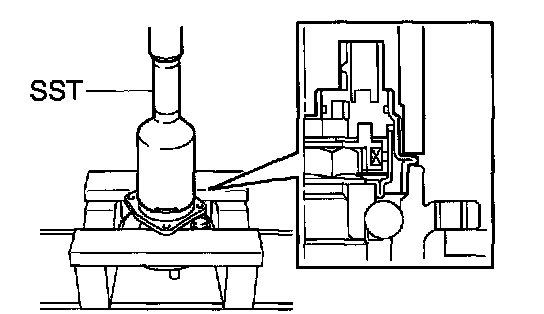

c. Using SST and press, install the new speed sensor to the axle hub.
SST 09214-76011
7. INSTALL REAR AXLE HUB & BEARING ASSY LH
8. CONNECT SKID CONTROL SENSOR WIRE

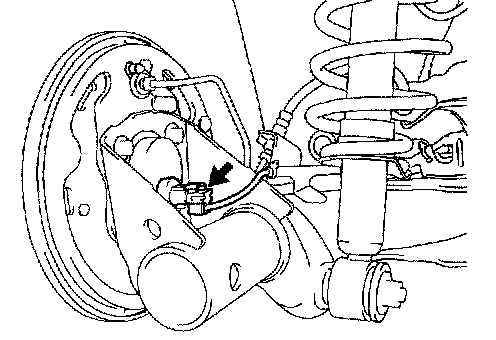

a. Connect the skid control sensor wire connector to the skid control sensor.
9. INSTALL REAR BRAKE DRUM SUB-ASSY
10. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
11. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
12. CHECK ABS SPEED SENSOR SIGNAL
