Parking Brake Cable Assembly No. 3

Parking Brake Cable No.3:

REPLACEMENT

HINT: For parking brake cable assy No.2, perform the same procedure to the parking brake cable assy No.3.

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY
3. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH
4. REMOVE FRONT BRAKE SHOE
SST 09718-00010
5. REMOVE PARKING BRAKE SHOE STRUT SET LH
6. REMOVE REAR BRAKE SHOE
SST 09718-00010
7. DISCONNECT PARKING BRAKE CABLE ASSY NO.3

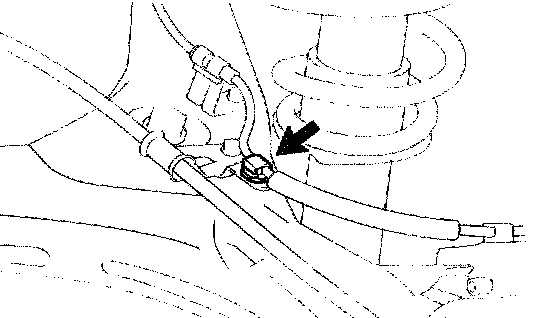

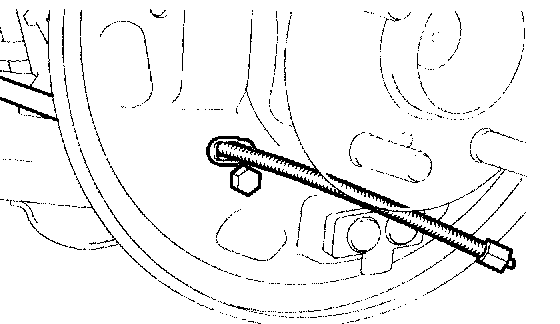

a. Remove the bolt, and disconnect the parking brake cable assy No.3 from the backing plate.
8. REMOVE EXHAUST PIPE ASSY FRONT
9. REMOVE FRONT FLOOR HEAT INSULATOR NO.1
10. REMOVE FRONT FLOOR HEAT INSULATOR NO.2
11. REMOVE FUEL TANK PROTECTOR NO.1
a. Remove the 5 nuts and fuel tank protector No.1.





12. REMOVE PARKING BRAKE CABLE ASSY NO.3
a. Using a clip remover, disconnect the skid control sensor wire harness clip from the clamp.

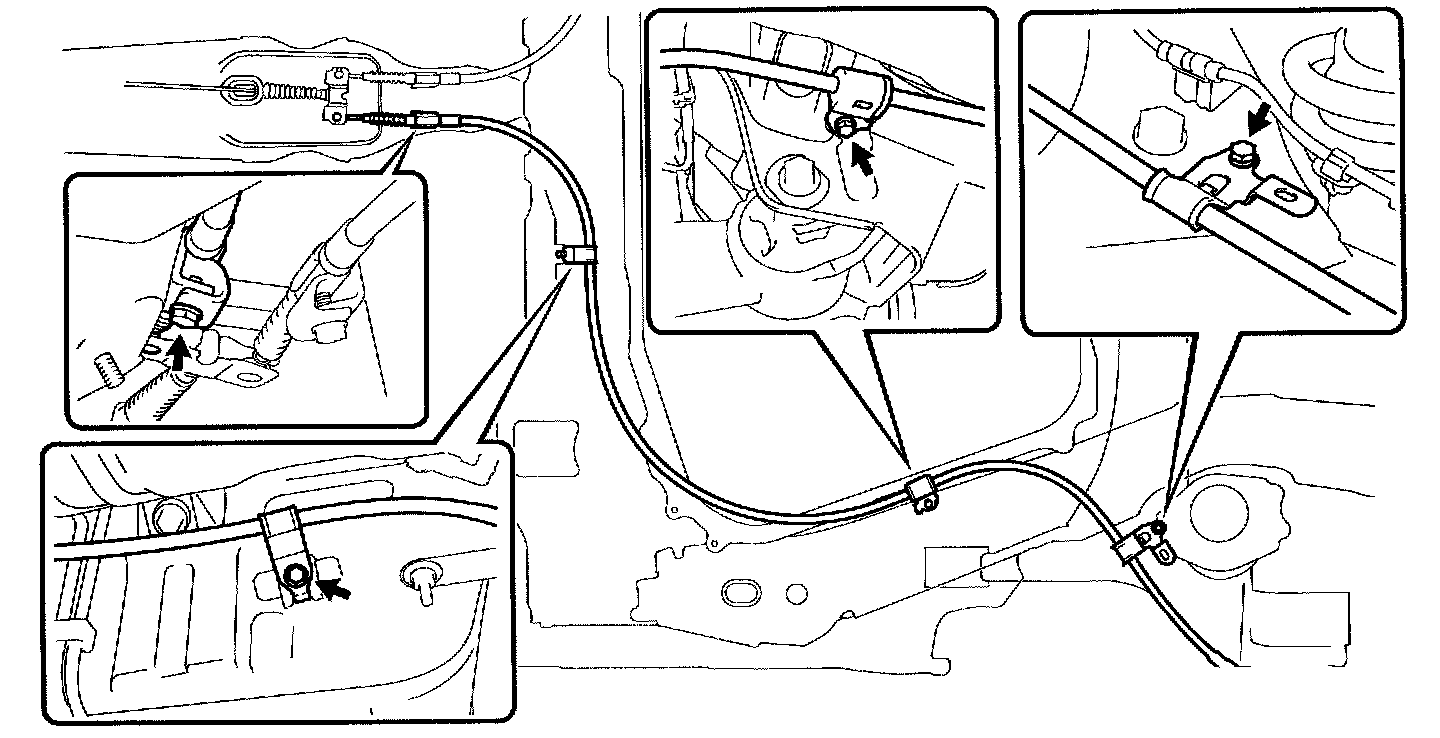

b. Remove the 4 bolts and cable retainer from the body.
c. Disconnect the parking brake cable assy No.3 from the equalizer, and remove the parking brake cable assy No.3.
13. INSTALL PARKING BRAKE CABLE ASSY NO.3
a. Connect the parking brake cable assy No.3 to the equalizer.





b. Install the parking brake cable assy No.3 with the 4 bolts and cable retainer.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)





c. Connect the skid control sensor wire harness clip to the clamp.
14. INSTALL FUEL TANK PROTECTOR NO.1
a. Install the fuel tank protector No.1 with the 5 nuts.
Torque: 5.5 Nm (55 kgf-cm, 48 inch lbs.)
15. INSTALL FRONT FLOOR HEAT INSULATOR NO.2
16. INSTALL FRONT FLOOR HEAT INSULATOR NO.1
17. INSTALL EXHAUST PIPE ASSY FRONT
18. CONNECT PARKING BRAKE CABLE ASSY NO.3

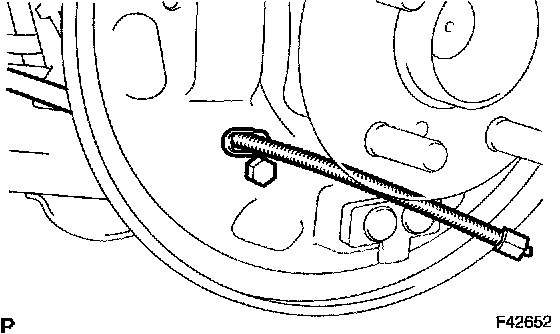

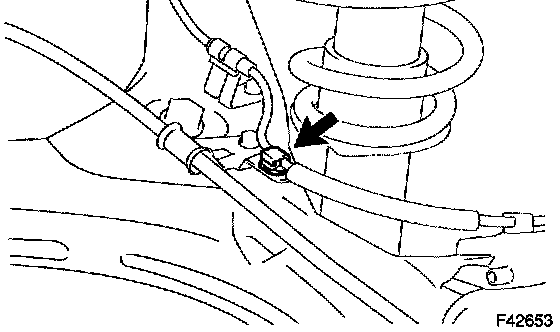

a. Connect the parking brake cable assy No.3 to the backing plate with the bolt.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
19. APPLICATION HIGH TEMPERATURE GREASE
20. INSTALL REAR BRAKE SHOE
SST 09718-00010
21. INSTALL PARKING BRAKE SHOE STRUT SET LH
22. INSTALL FRONT BRAKE SHOE
SST 09718-00010
23. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER LH
24. CHECK REAR DRUM BRAKE INSTALLATION
25. INSTALL REAR BRAKE DRUM SUB-ASSY
26. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
27. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, ft. lbs.)
28. INSPECT PARKING BRAKE LEVER TRAVEL
29. ADJUST PARKING BRAKE LEVER TRAVEL
30. CHECK EXHAUST LEAKAGE
