Diagnosis Circuit

DIAGNOSIS CIRCUIT

CIRCUIT DESCRIPTION
This circuit sends a signal to the cruise control ECU assy that DTC output is required.

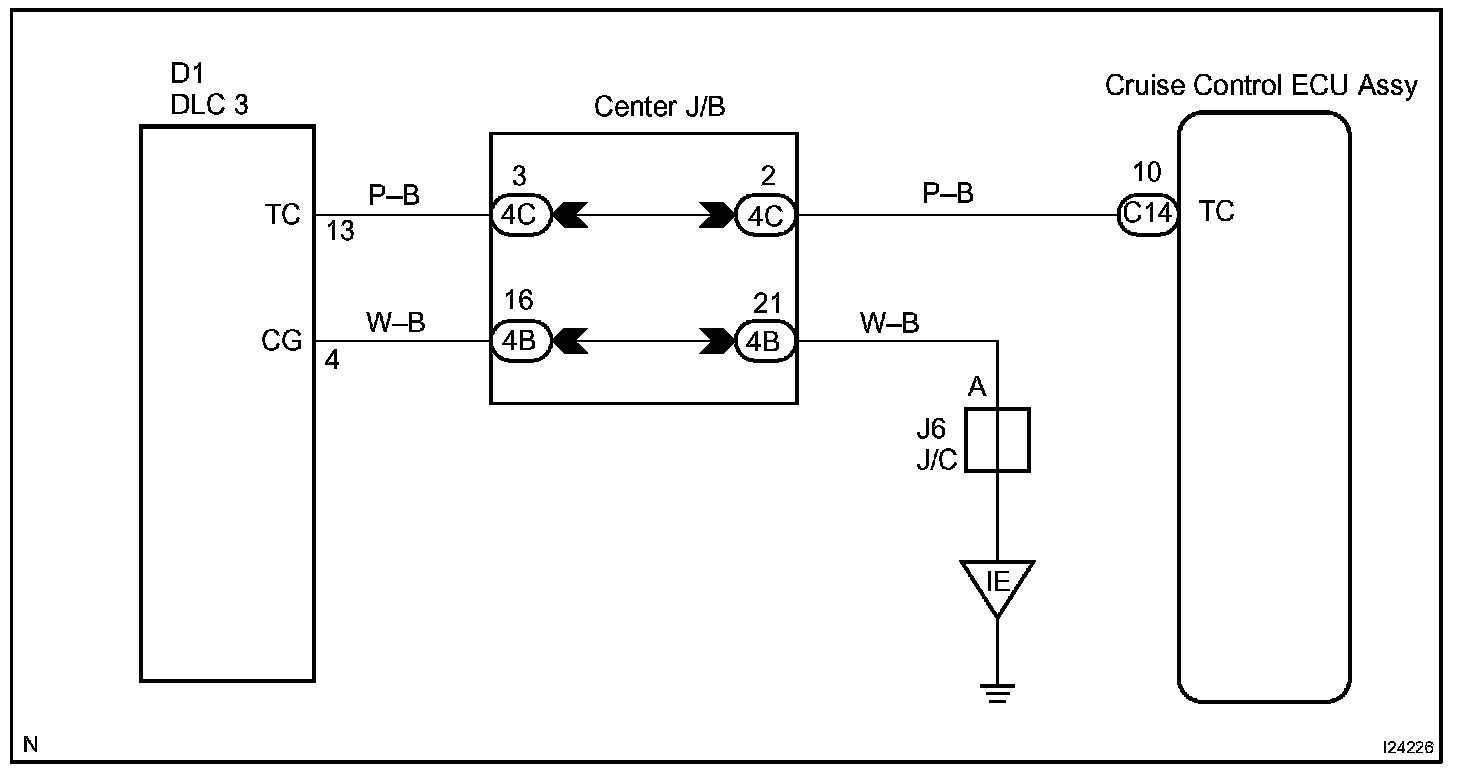

Wiring Diagram:

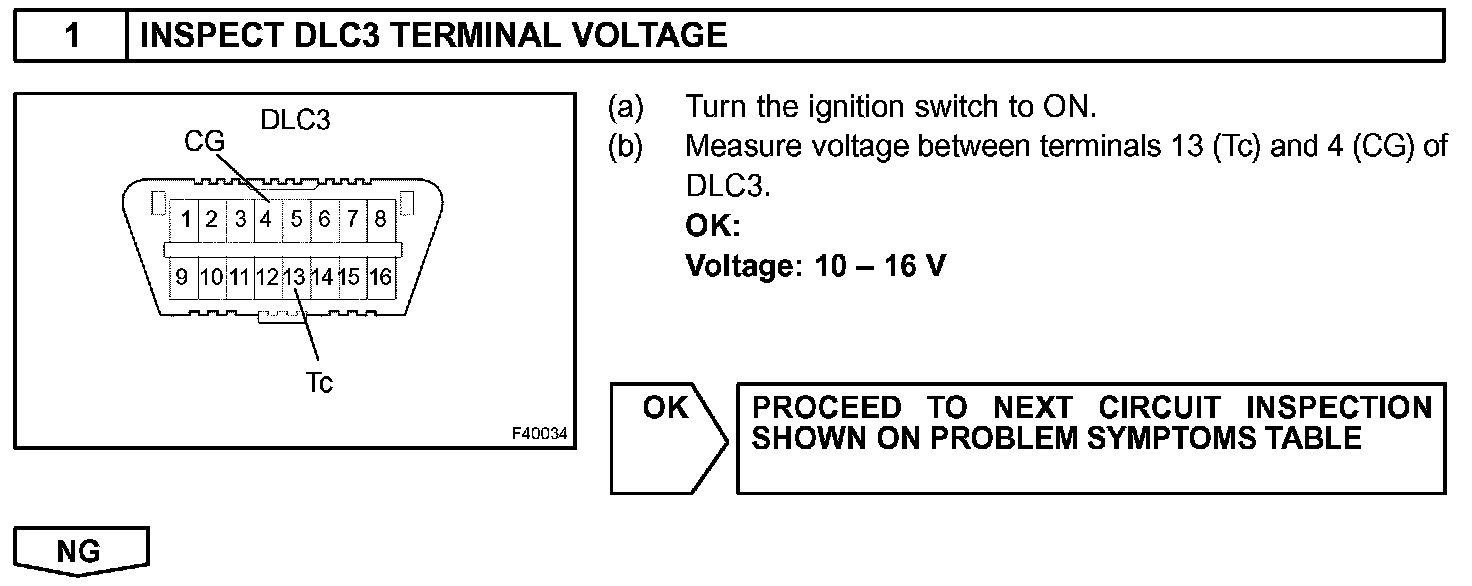

Step 1:

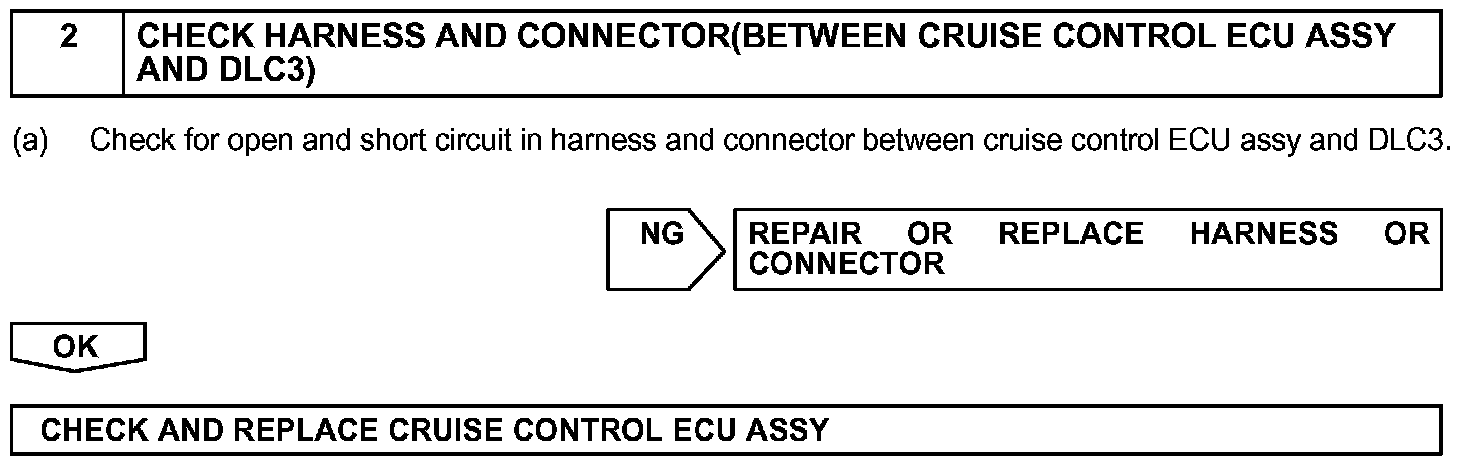

Step 2:

INSPECTION PROCEDURE
