Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

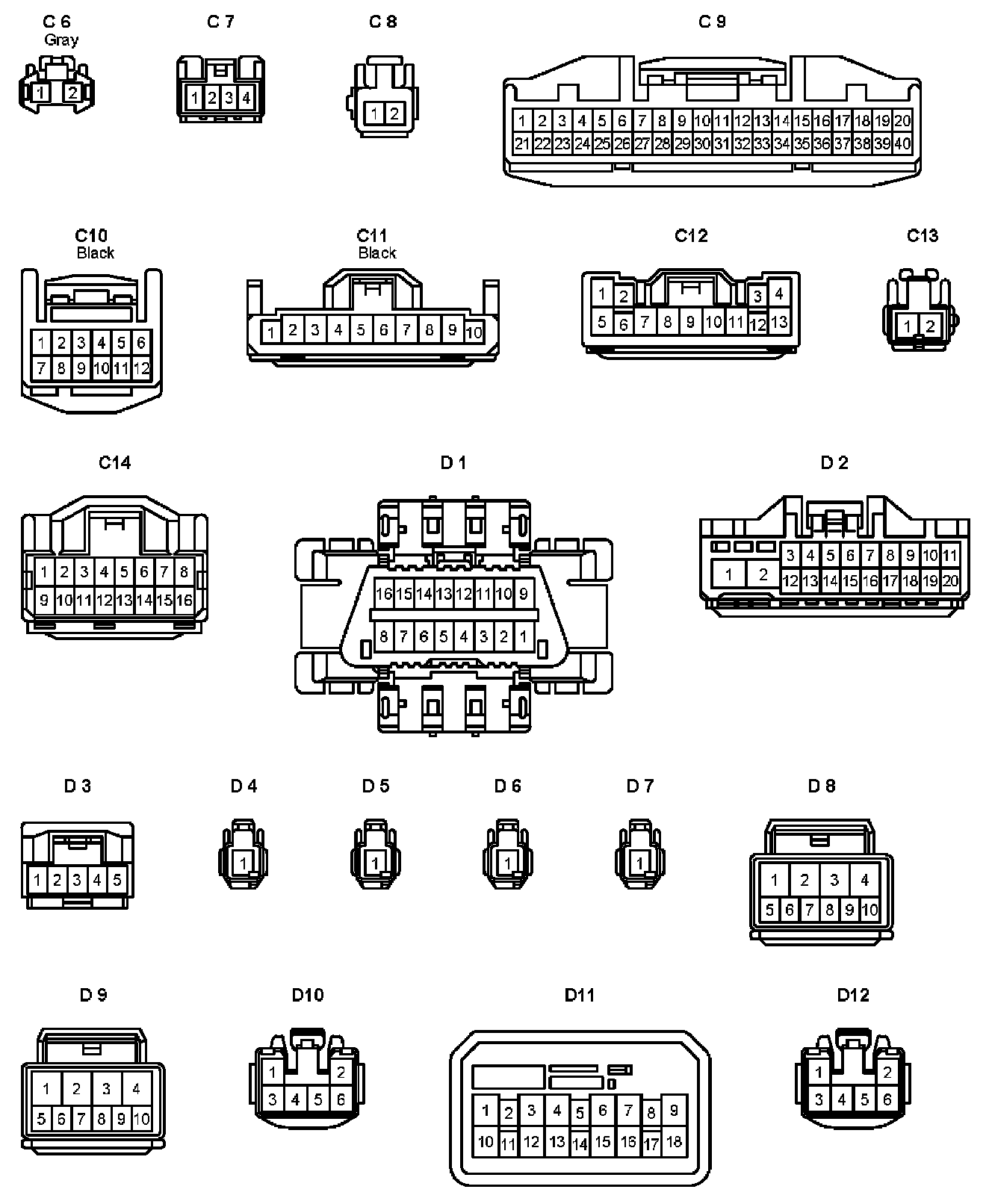

C6 - D12
C6 - D12
C6 - D12:
