Toyota
>>
2004
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

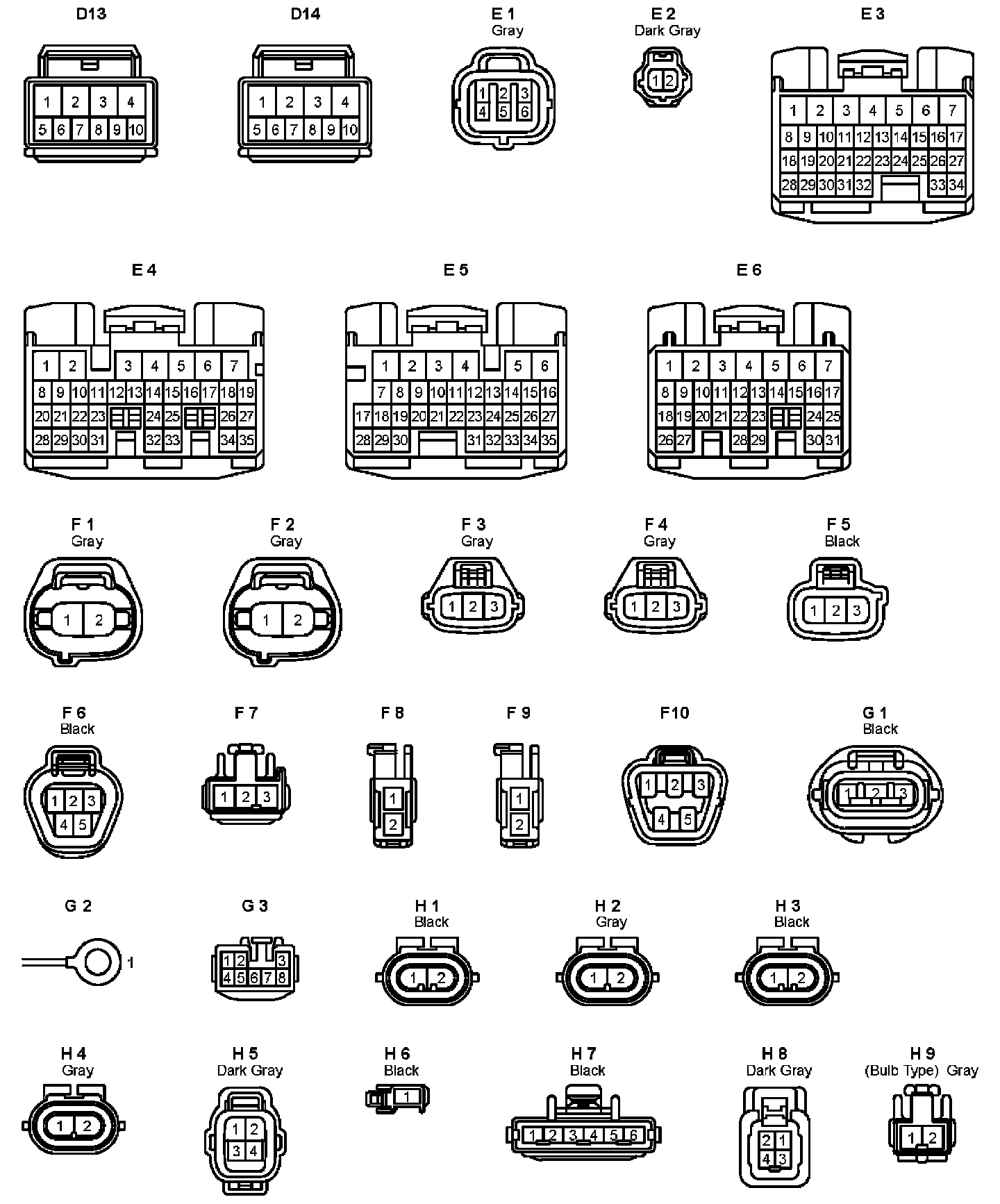

D13 - H9
D13 - H9
D13 - H9:
