Instrument Panel, Gauges and Warning Indicators
>>

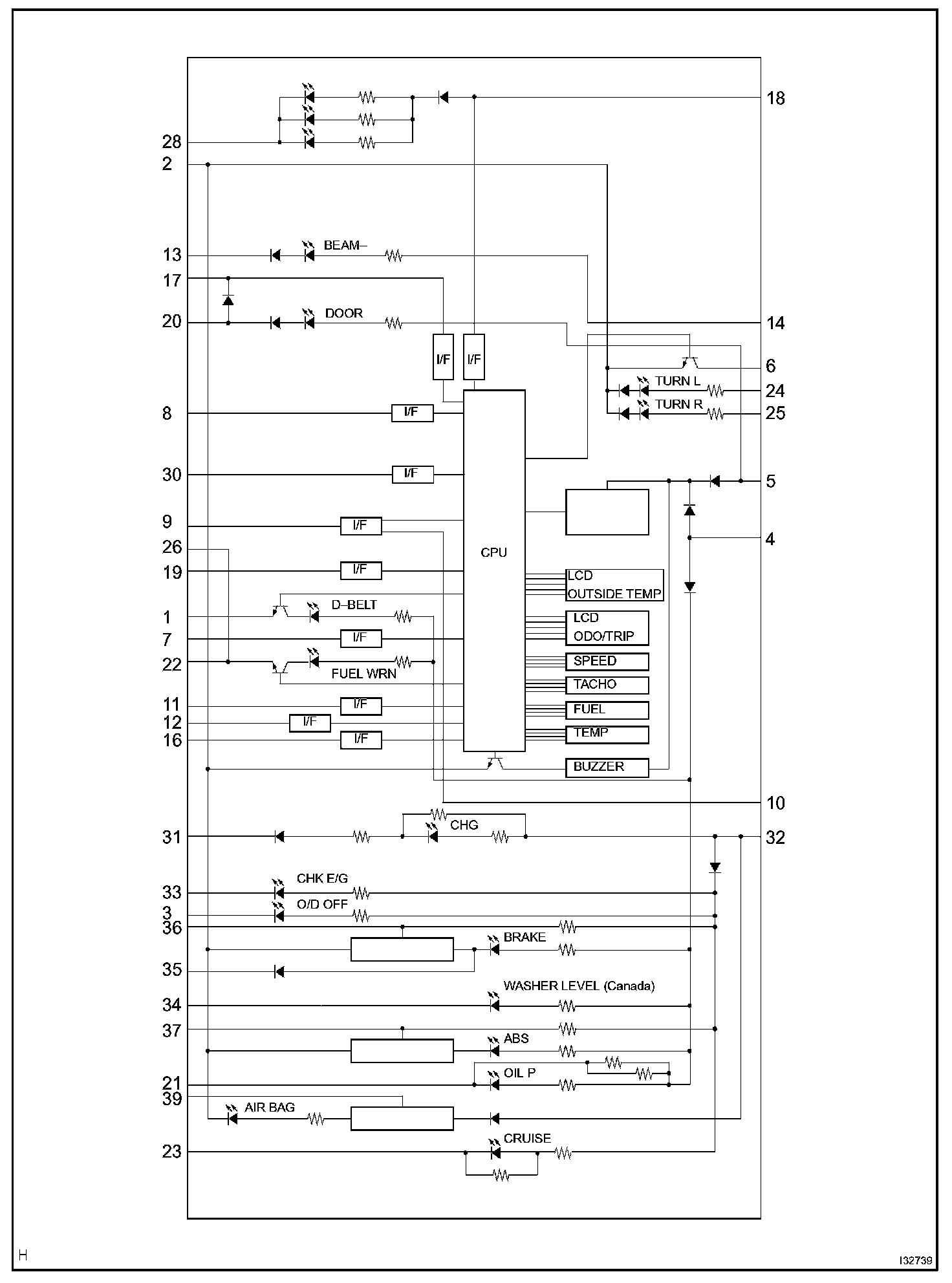

System Diagram
>>

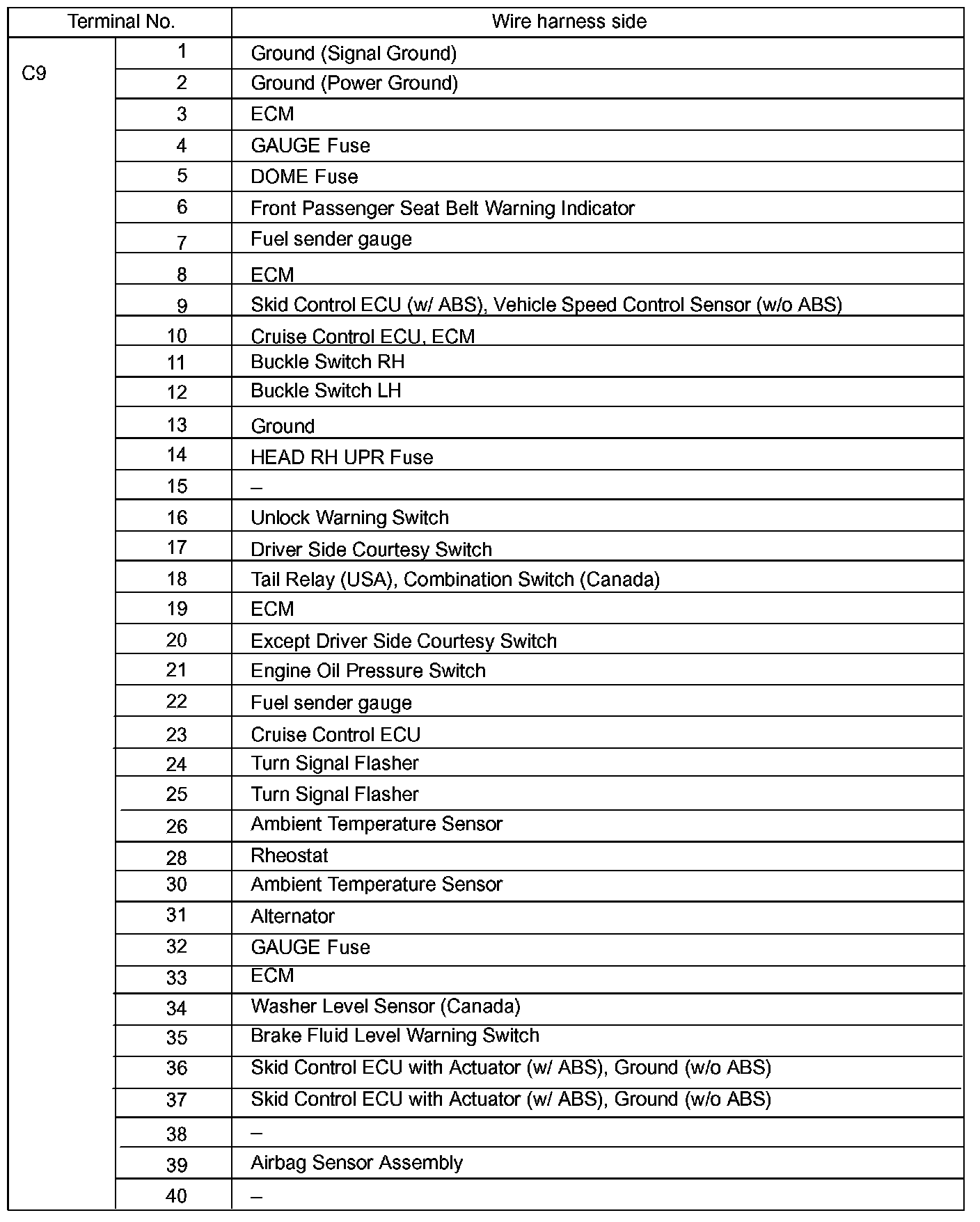

Electrical Schematics
Electrical Schematics
