Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

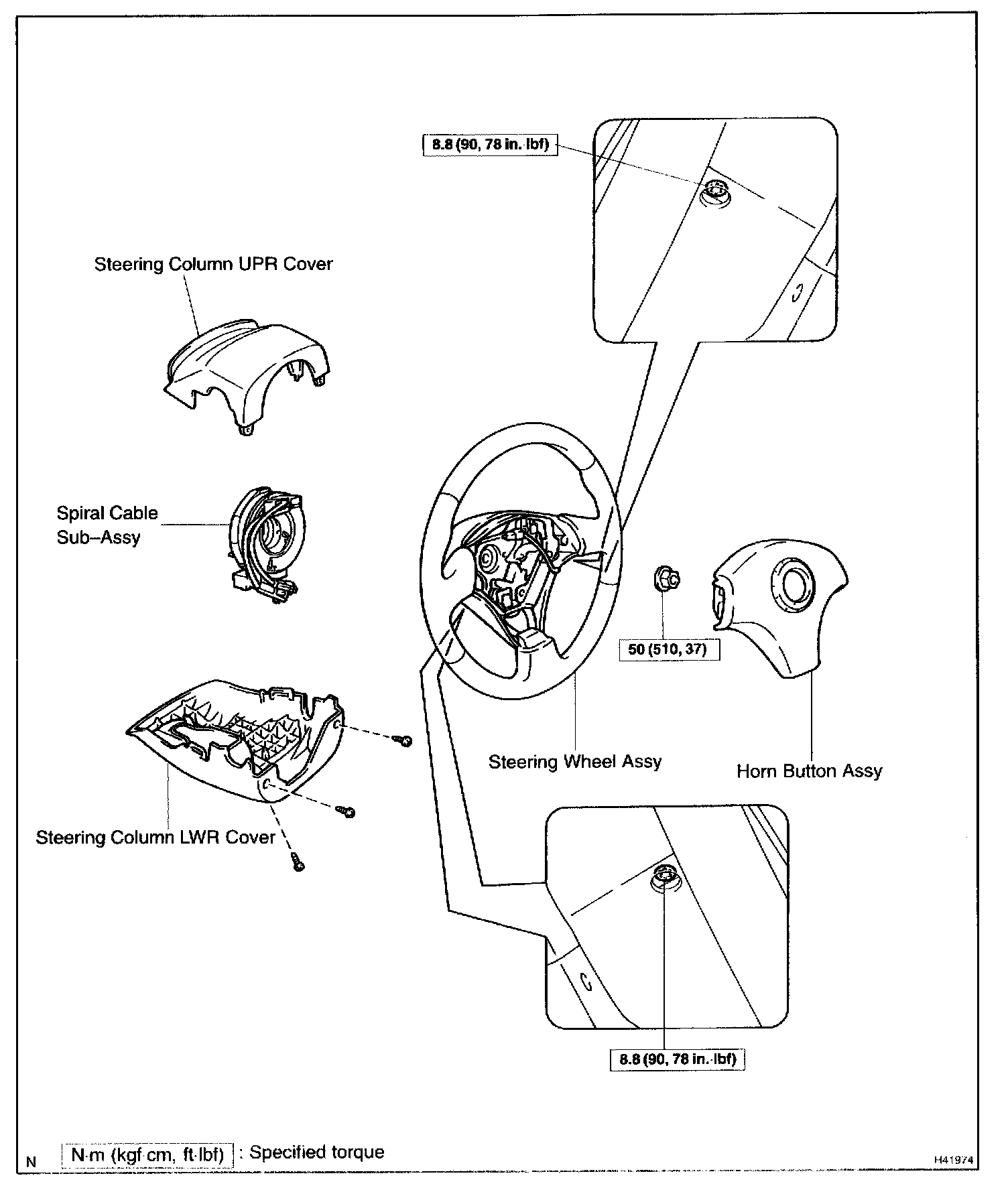

Clockspring Assembly / Spiral Cable, Air Bag
Clockspring Assembly / Spiral Cable, Air Bag
Horn Button Assy:
