Exploded Views
>>
Heater Core Case
Heater Core Case

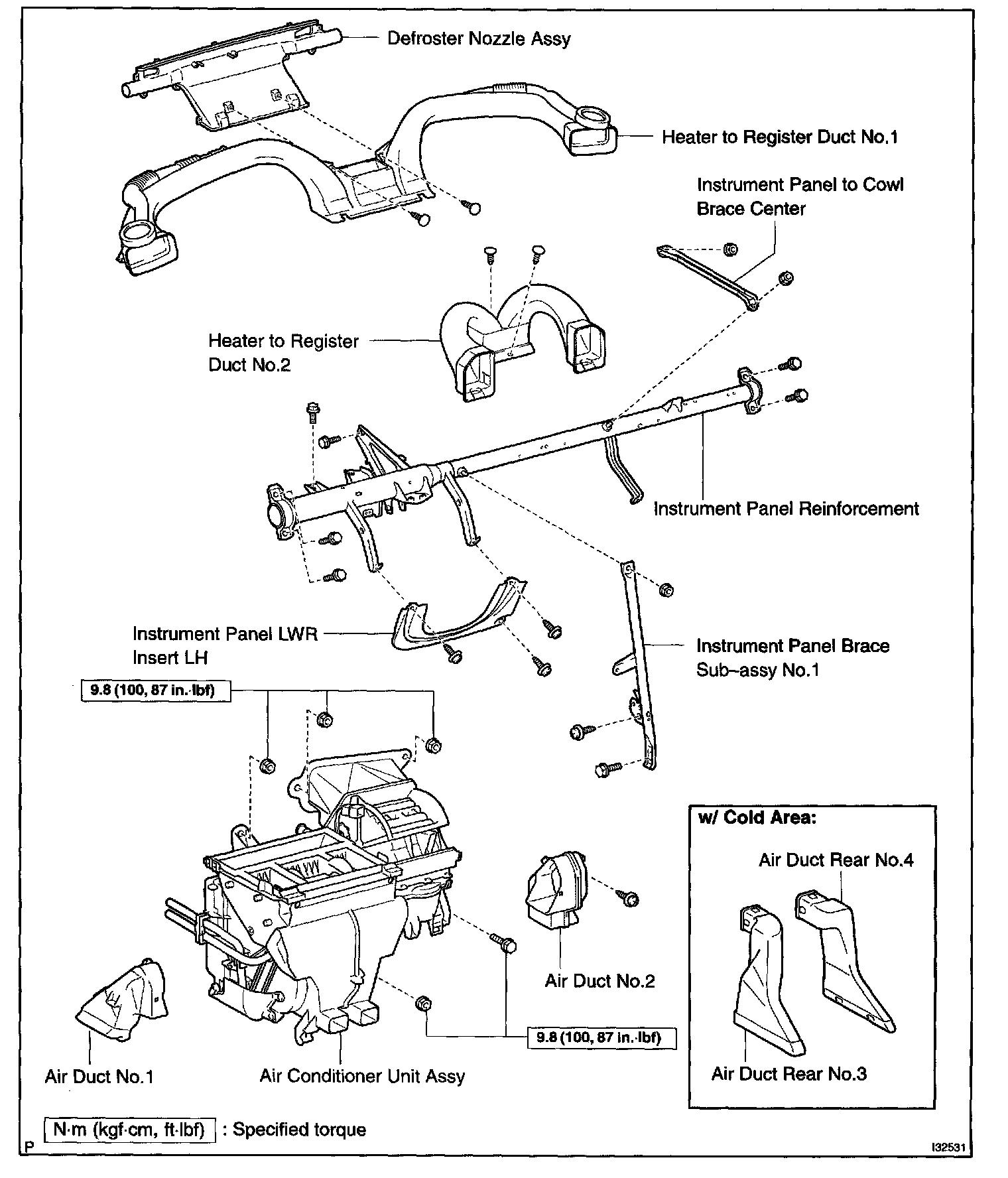

Air Conditioner Unit Assy:

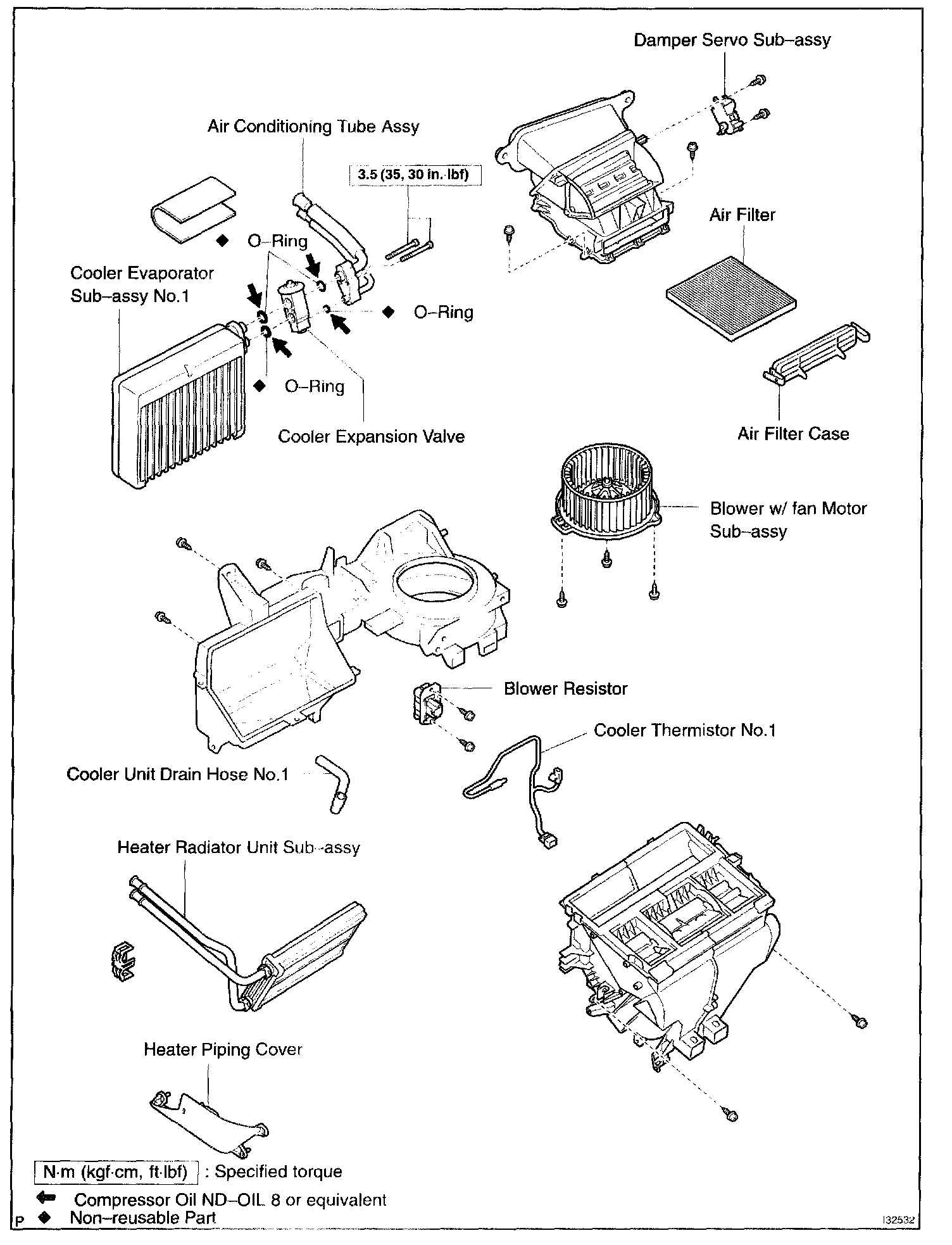

Air Conditioning Unit Assy Part 2:
