Rear Crankshaft Main Bearing Seal: Service and Repair
REPLACEMENT1. REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE)
2. REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE)
3. REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE)
a. Remove the 6 bolts and clutch cover
4. REMOVE CLUTCH DISC ASSY (M/T TRANSAXLE)
5. REMOVE FLYWHEEL SUB-ASSY (M/T TRANSAXLE)

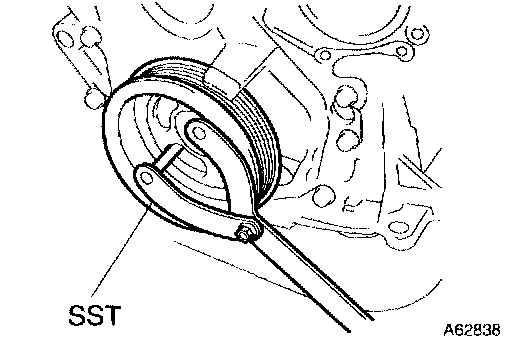

a. Fix the crankshaft with SST, then remove the 8 bolts and flywheel.
SST 09960-10010 (09962-0100O, 09963-01000)
6. REMOVE DRIVE PLATE & RING GEAR SUB-ASSY (A/T TRANSAXLE)

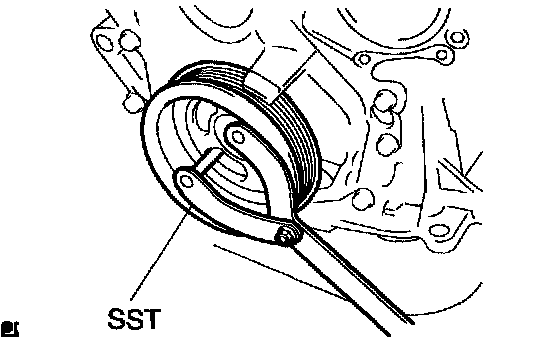

a. Fix the crankshaft with SST, then remove the 8 bolts and drive plate & ring gear.
SST 09960-10010 (09962-01000, 09963-01000)
7. REMOVE ENGINE REAR OIL SEAL

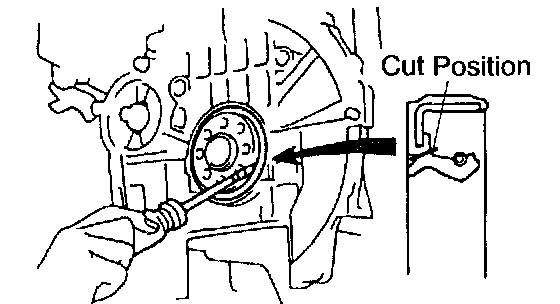

a. Using a knife, cut off the oil seal lip.
b. Using a screwdriver with taping its tip, pry out the oil seal.
NOTICE: After the removal, check if the crankshaft is not damaged. If there is, mend it with a sandpaper (#400).
8. INSTALL ENGINE REAR OIL SEAL
a. Apply MP grease to a new oil seal lip.
NOTICE: Keep the lip off foreign materials.

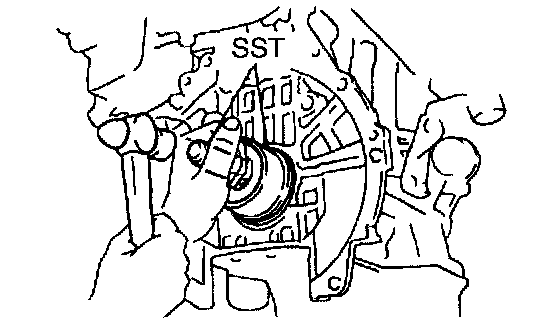

b. Using SST, tap in the oil seal until its surface is flush with the rear oil seal retainer edge
SST 09223-15020, 09950-70010 (09951-07100)
NOTICE: Wipe off extra grease on the crankshaft.
9. INSTALL FLYWHEEL SUB-ASSY (M/T TRANSAXLE)

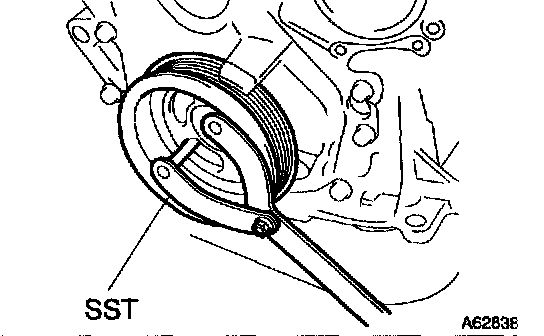

a. Fix the crankshaft with SST.
SST 09960-10010 (09962-0100O, 0996-01000)
b. Clean the bolt and bolt hole.
c. Apply adhesive to the bolts.
Adhesive: Part No. 0933-00070, THREE BOND or equivalent.

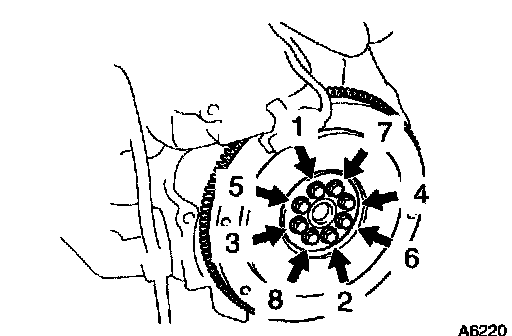

d. Install and uniformly tighten the 8 bolts, in several passes, in the sequence shown.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
e. Mark the bolts with paint.

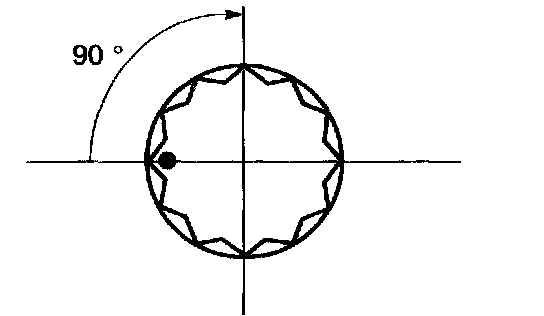

f. Retighten the bolts by an additional 90°.
g. Check that the point marked bolts are moved at 90° angle.
10. INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE)
SST 09301-00210
11. INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE)
12. INSTALL DRIVE PLATE & RING GEAR SUB-ASSY (A/T TRANSAXLE)

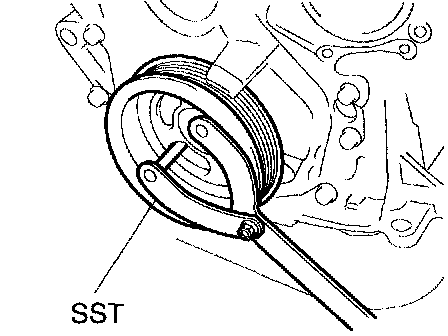

a. Fix the crankshaft with SST.
SST09960-10010 (09962-01000, 09963-01000)
b. Clean the bolt and bolt hole.
c. Apply adhesive to the bolts.
Adhesive: Part No. 09330 00070, THREE BOND or equivalent.

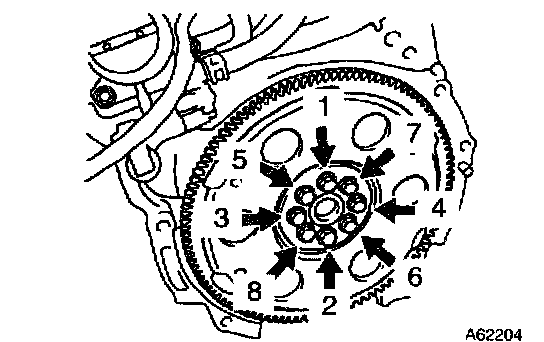

d. Install and uniformly tighten the 8 bolts, in several passes, in the sequence shown.
e. Fix the crankshaft with SST.
Torque: 88 Nm (897 kgf-cm, 65 ft. lbs.)
13. INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE)
14. INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE)
