Combination Meter Disassembly and Assembly

OVERHAUL

1. REMOVE METER HOOD SUB-ASSY




2. REMOVE COMBINATION METER ASSY
a. Remove the screw.

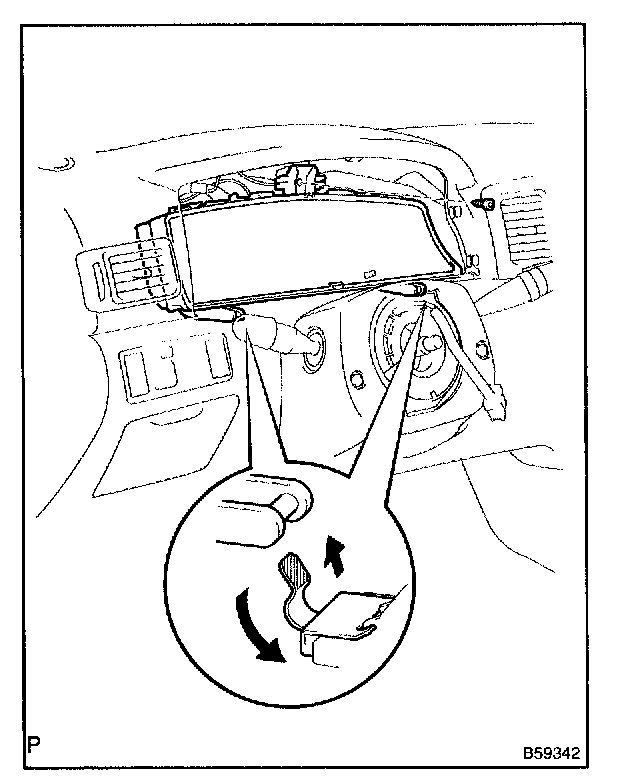

b. Disengage the 2 clips as shown in the illustration.
c. Disconnect the connector, then remove the combination meter.




3. REMOVE COMBINATION METER GLASS

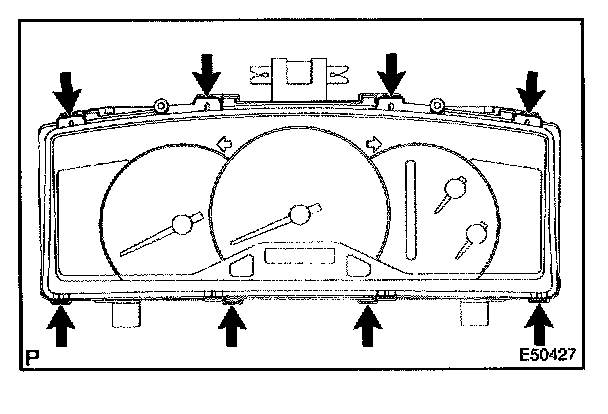

a. Disengage the 8 claws, then remove the combination meter glass.
