Seat Belt Warning Lamp For Driver's Seat Does Not Operate

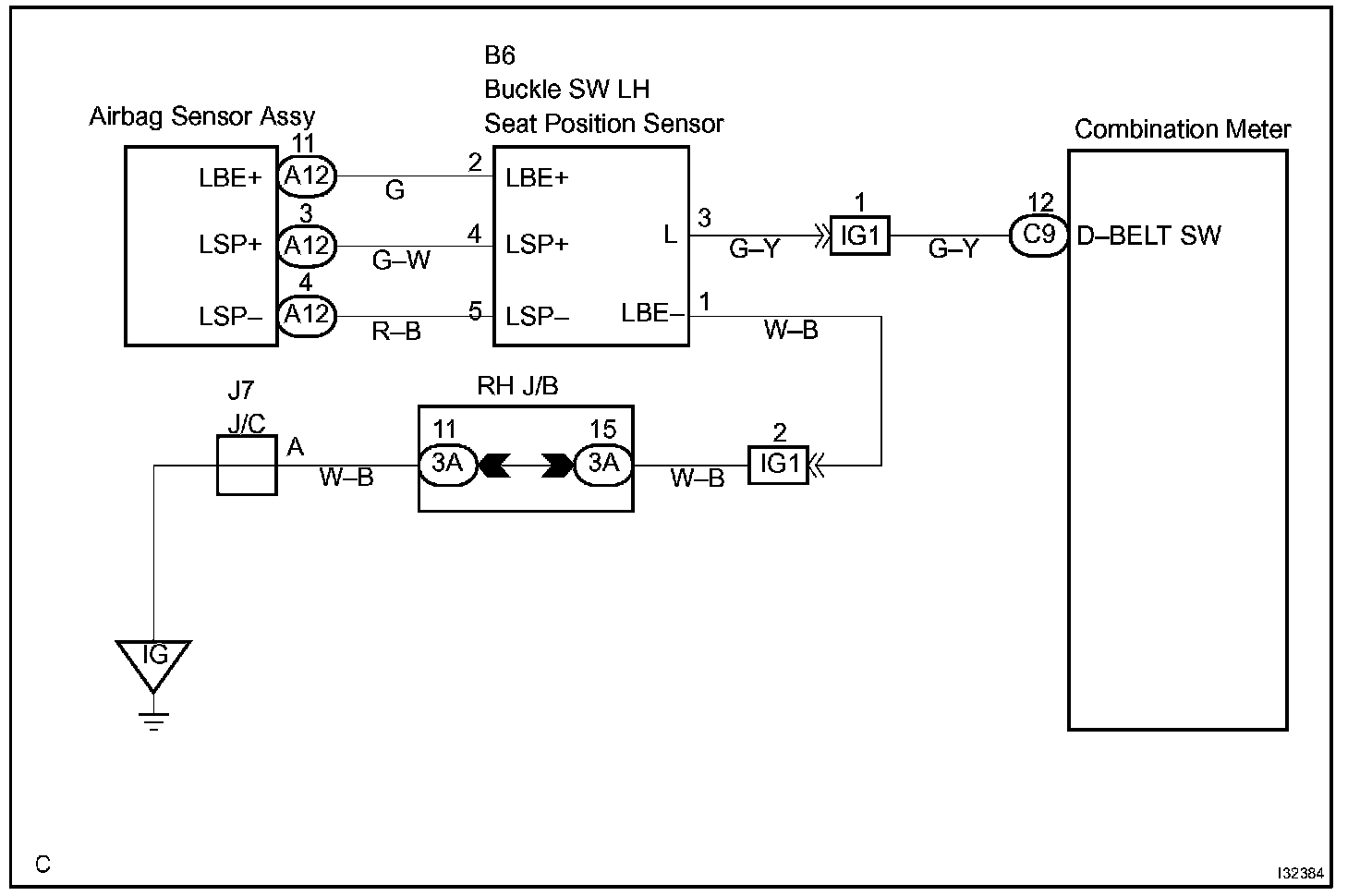

Wiring Diagram:

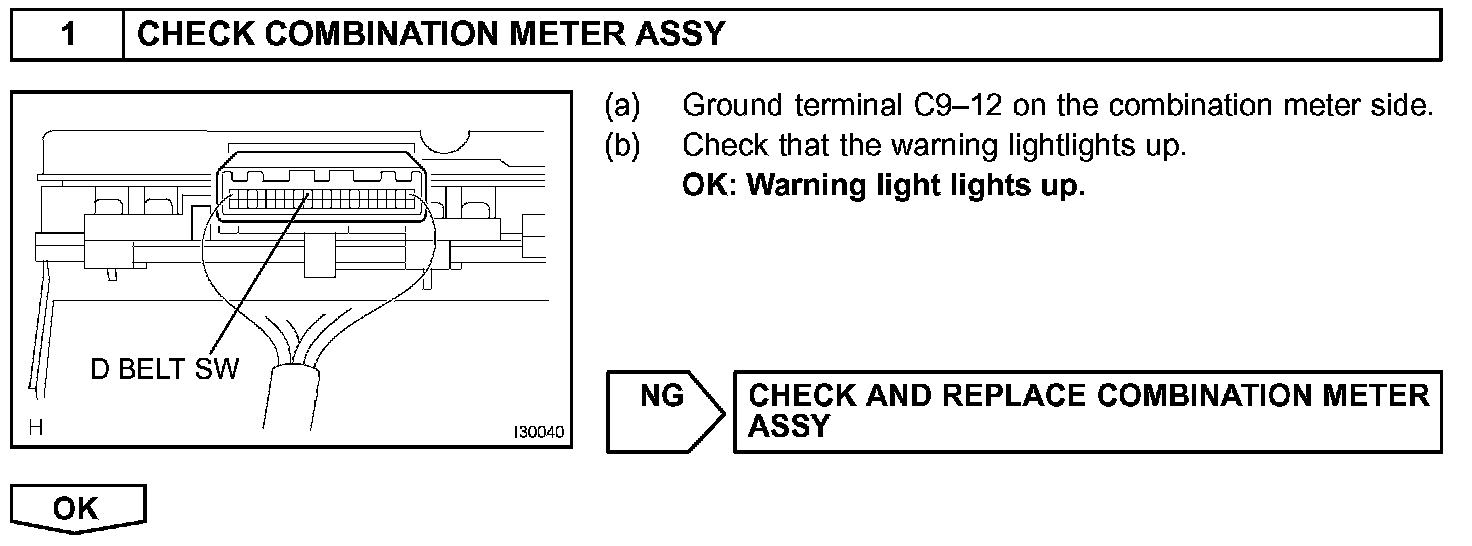

Step 1:

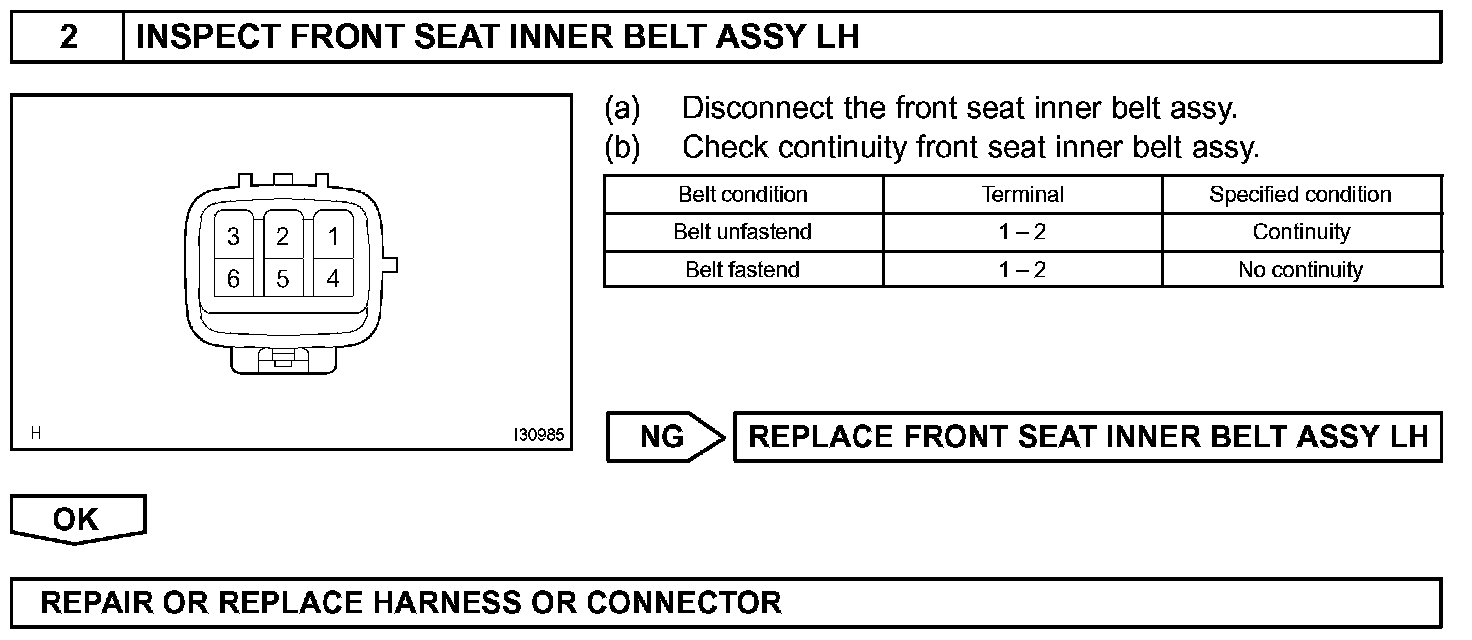

Step 2:




INSPECTION PROCEDURE
