Seat Belt Warning Lamp For Front Passenger Seat Does Not Operate

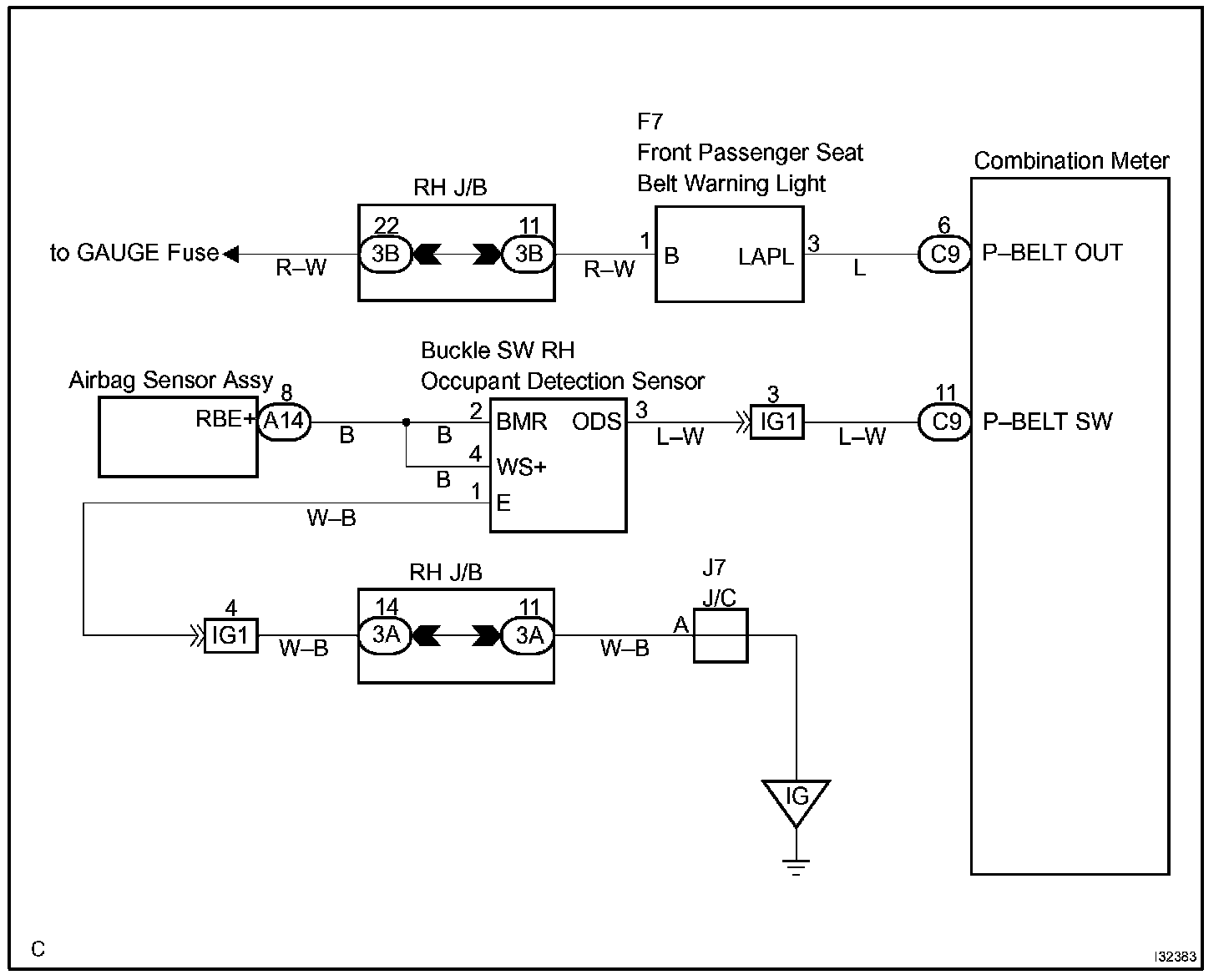

Wiring Diagram:

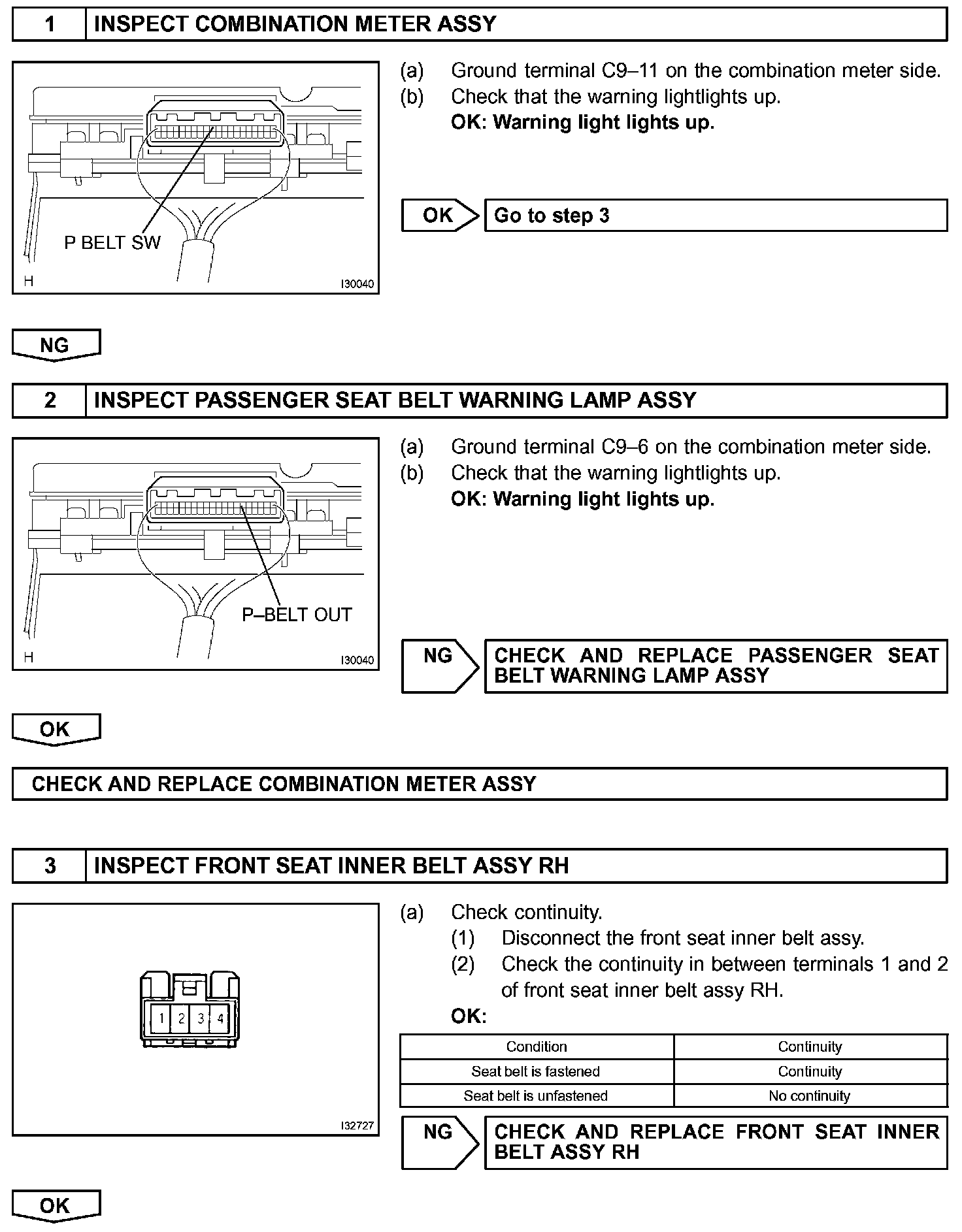

Step 1 - 3:

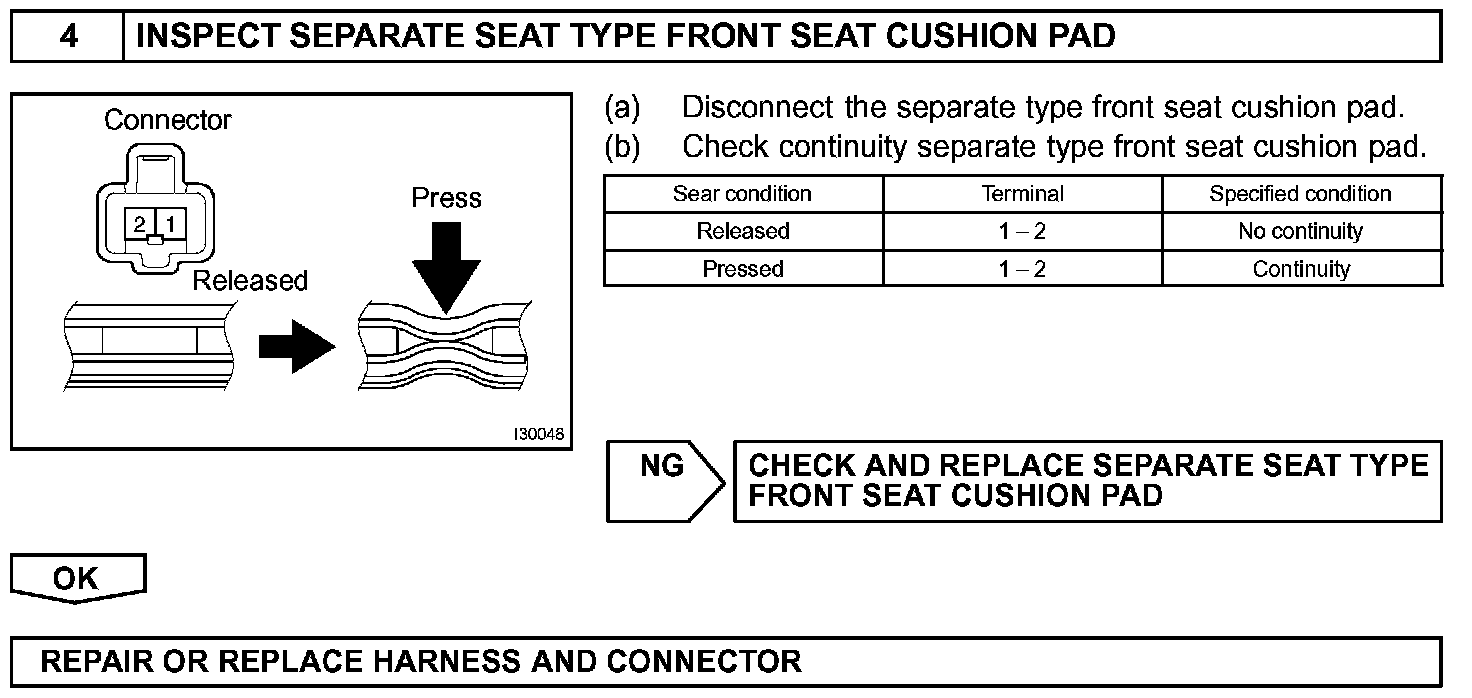

Step 4:




INSPECTION PROCEDURE
