WARNING BUZZER DOES NOT SOUND (KEY REMINDER WARNING, LIGHT REMINDER WARNING)

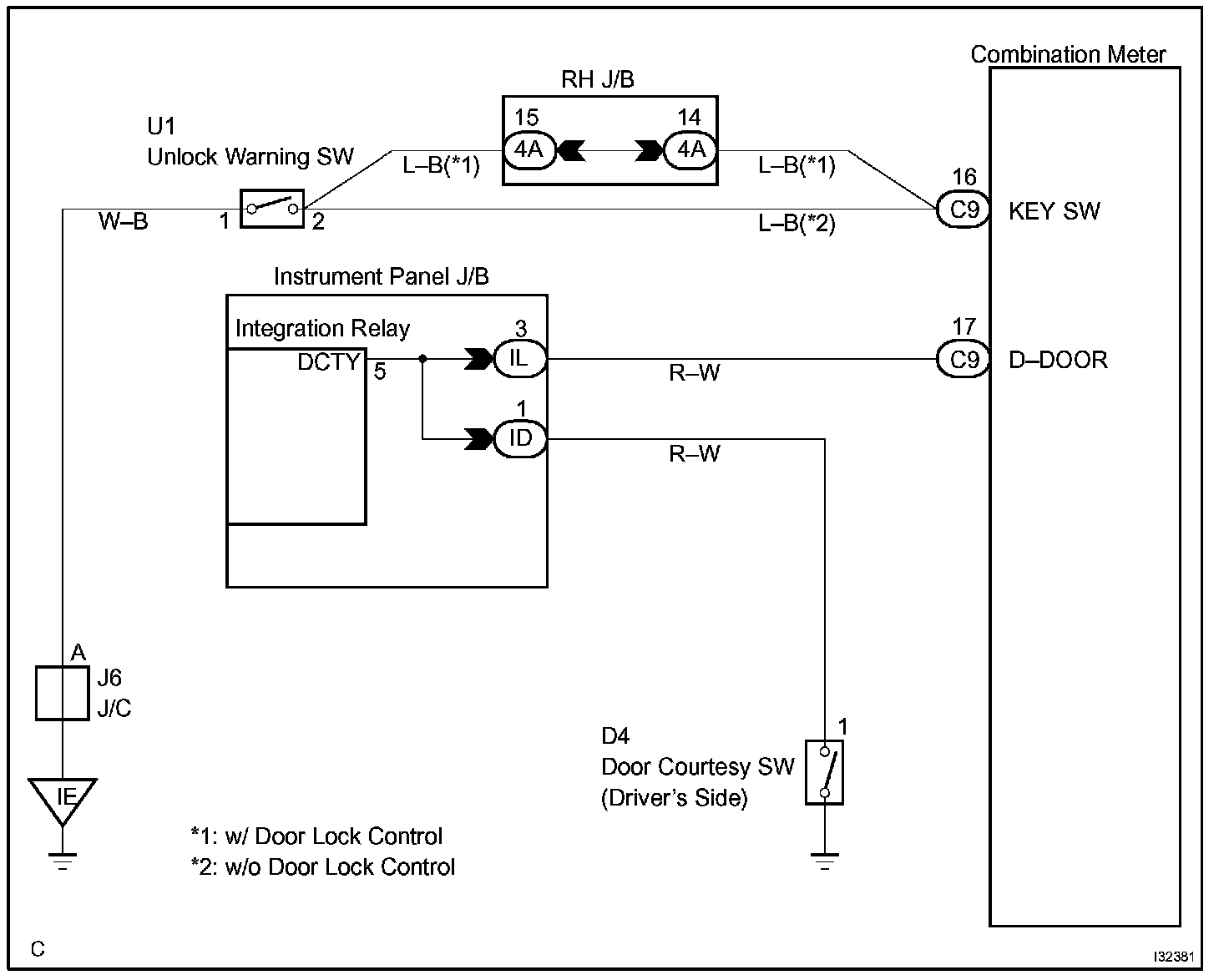

Wiring Diagram:

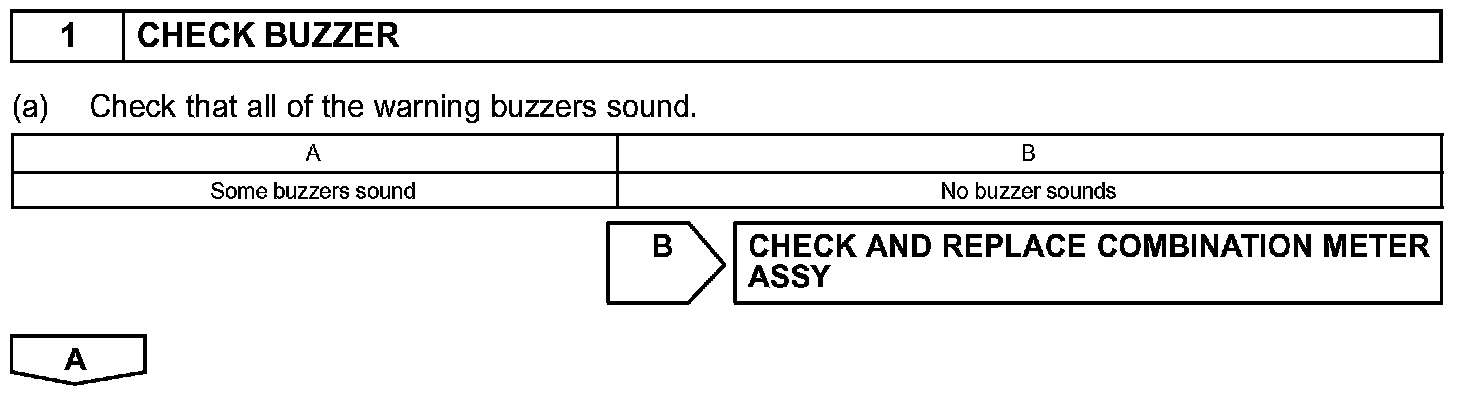

Step 1:

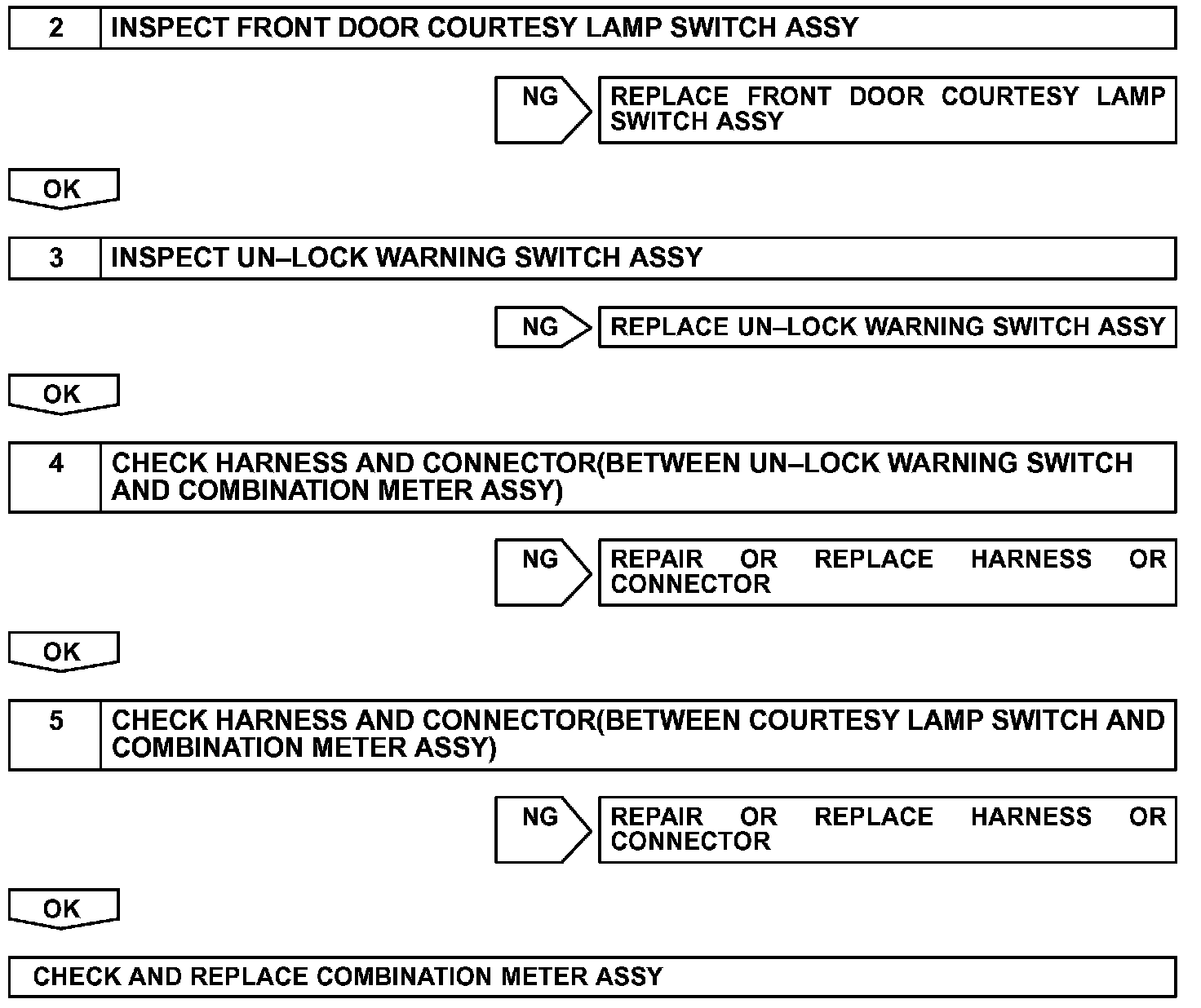

Step 2 - 5:
INSPECTION PROCEDURE
