Rear Wheel Alignment

NOTICE: For Zero Point Calibration information, please refer to: TSB T-SB-0020-8 (3/25/08).

INSPECTION
1. INSPECT TIRE
2. MEASURE VEHICLE HEIGHT

NOTICE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

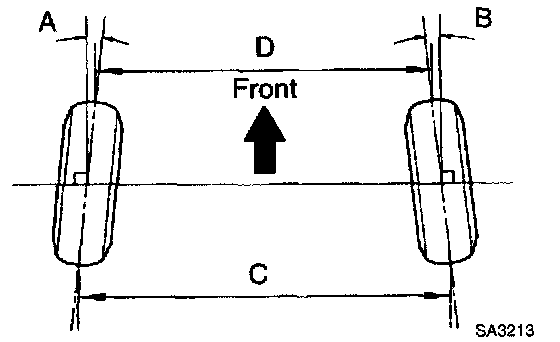

3. INSPECT TOE-IN

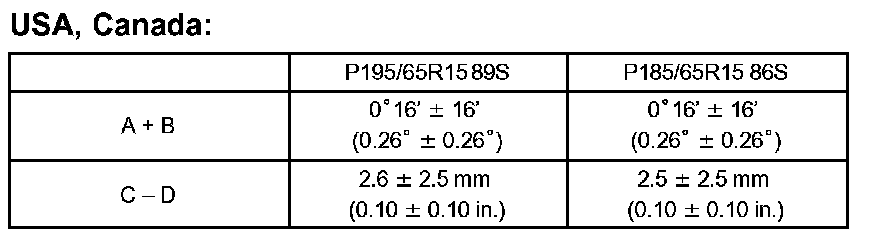

USA / Canada:

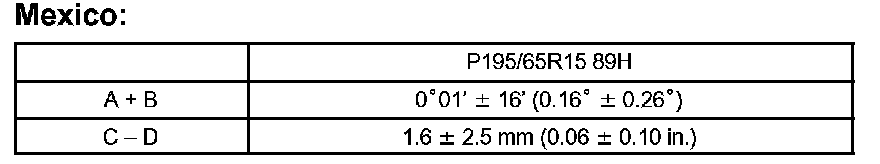

Mexico:

If the toe-in is not within the specified value, inspect and place the suspension parts as necessary.
4. INSPECT CAMBER
a. Install the camber-caster-kingpin gauge or position vehicle on wheel alignment tester.
b. Inspect the camber.

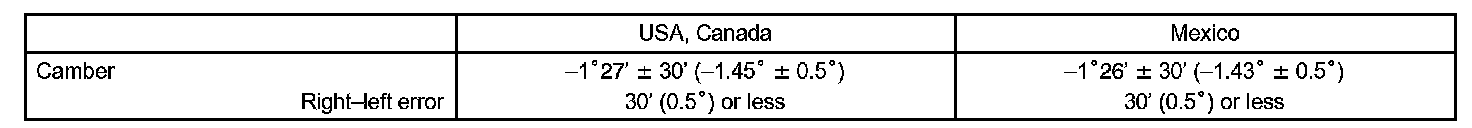

Camber

If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary become camber is not adjustable.
