Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Fail-Safe Operation
Fail-Safe Operation

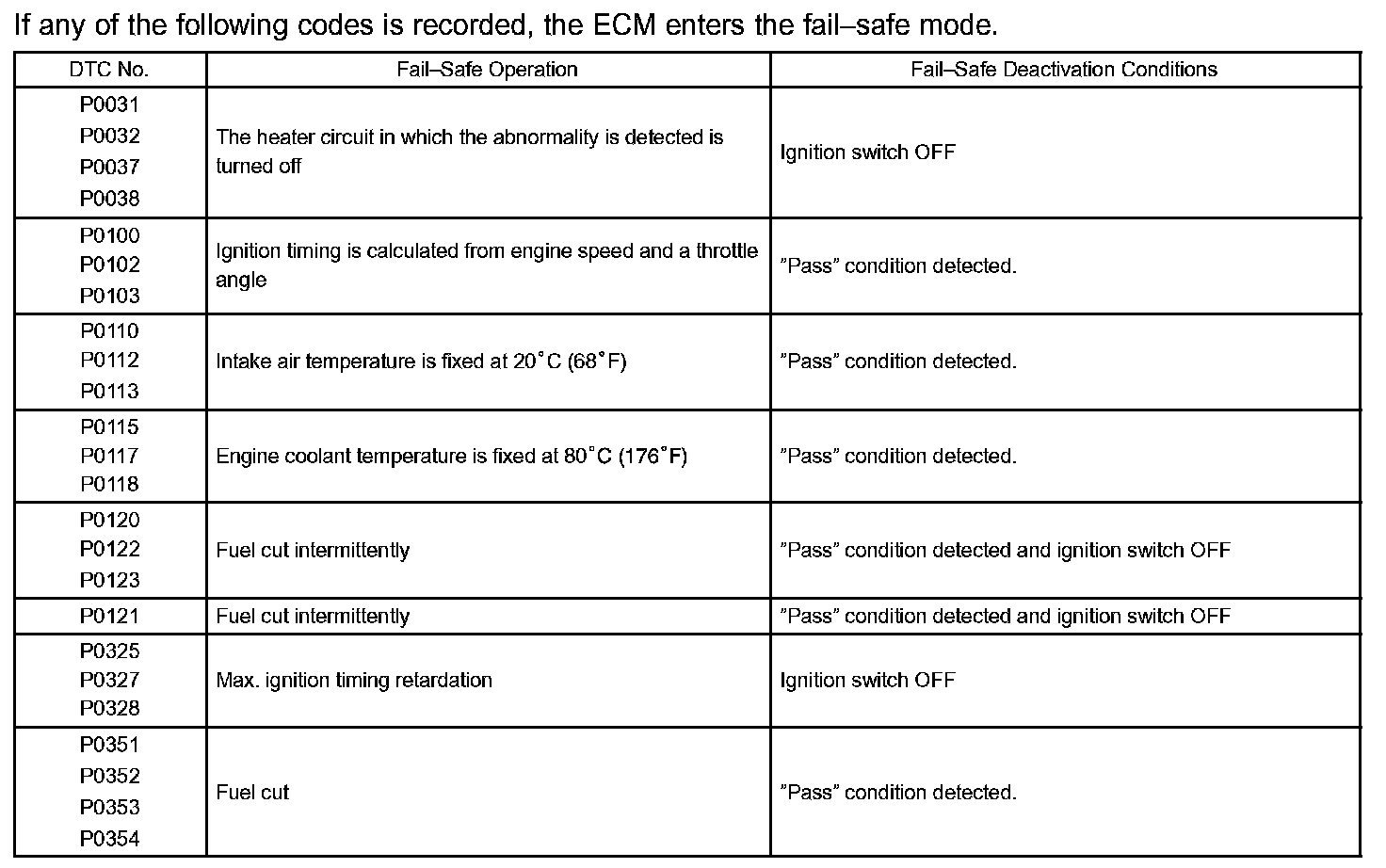

Fail-Safe Chart:
