Side Air Bag

FRONT SEAT AIRBAG ASSY(VEHICLE NOT INVOLVED IN COLLISION)
a. Check the diagnostic system.

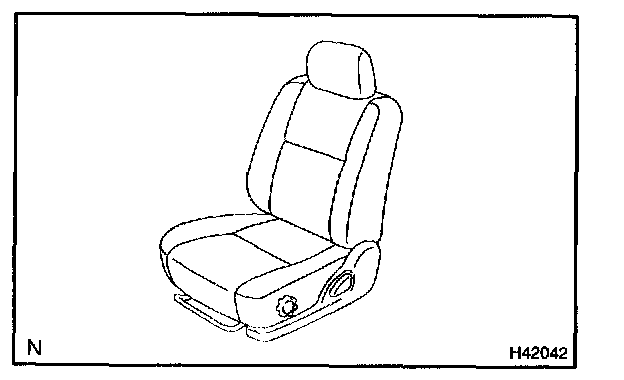

b. Visually check the following item with the front seat airbag assy installed in the vehicle.
Check cuts, minute cracks or marked discoloration on the front seat airbag assy and the front seat assy.




FRONT SEAT AIRBAG ASSY(VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED)
a. Check the diagnostic system.

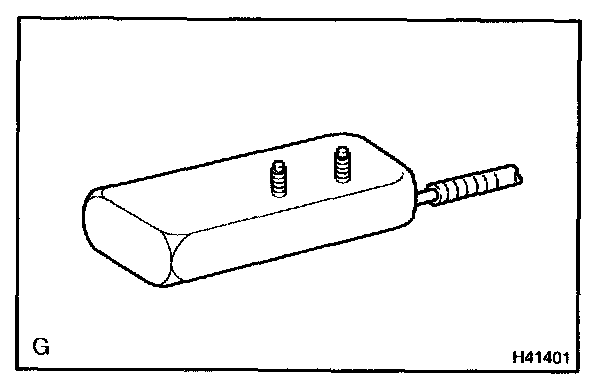

b. Visually check the following items with the front seat air-bag assy removed from the front seat assy.
- Check cuts, minute cracks or marked discoloration on the front seat airbag assy.
- Check cuts and cracks in wire harness, and for chipping in connectors.
