Rear

STABILIZER BAR REAR
REPLACEMENT
1. REMOVE STABILIZER BAR REAR

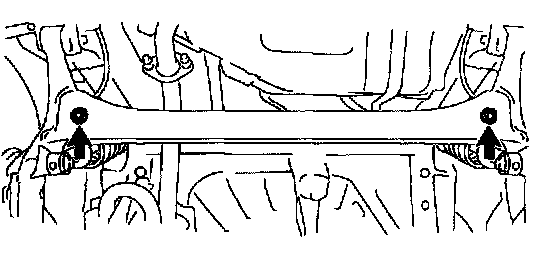

a. Remove the 2 bolts, nuts and stabilizer bar.
2. INSTALL STABILIZER BAR REAR





a. Install the 2 bolts, nuts and stabilizer bar.
Torque: 195 Nm (1,990 kgf-cm, 144 ft. lbs.)

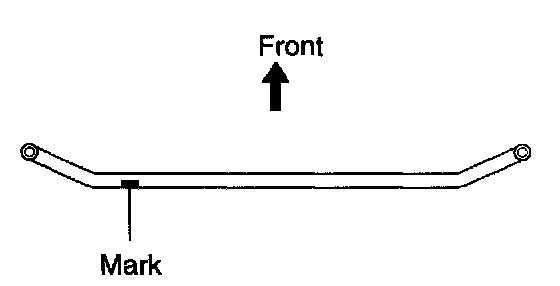

HINT: Install the stabilizer bar so that the mark is positioned on the rear right side of the vehicle.
