Rear Strut / Shock Tower: Service and Repair

REAR ABSORBER MOUNTING MEMBER (ASSEMBLY)

REPLACEMENT

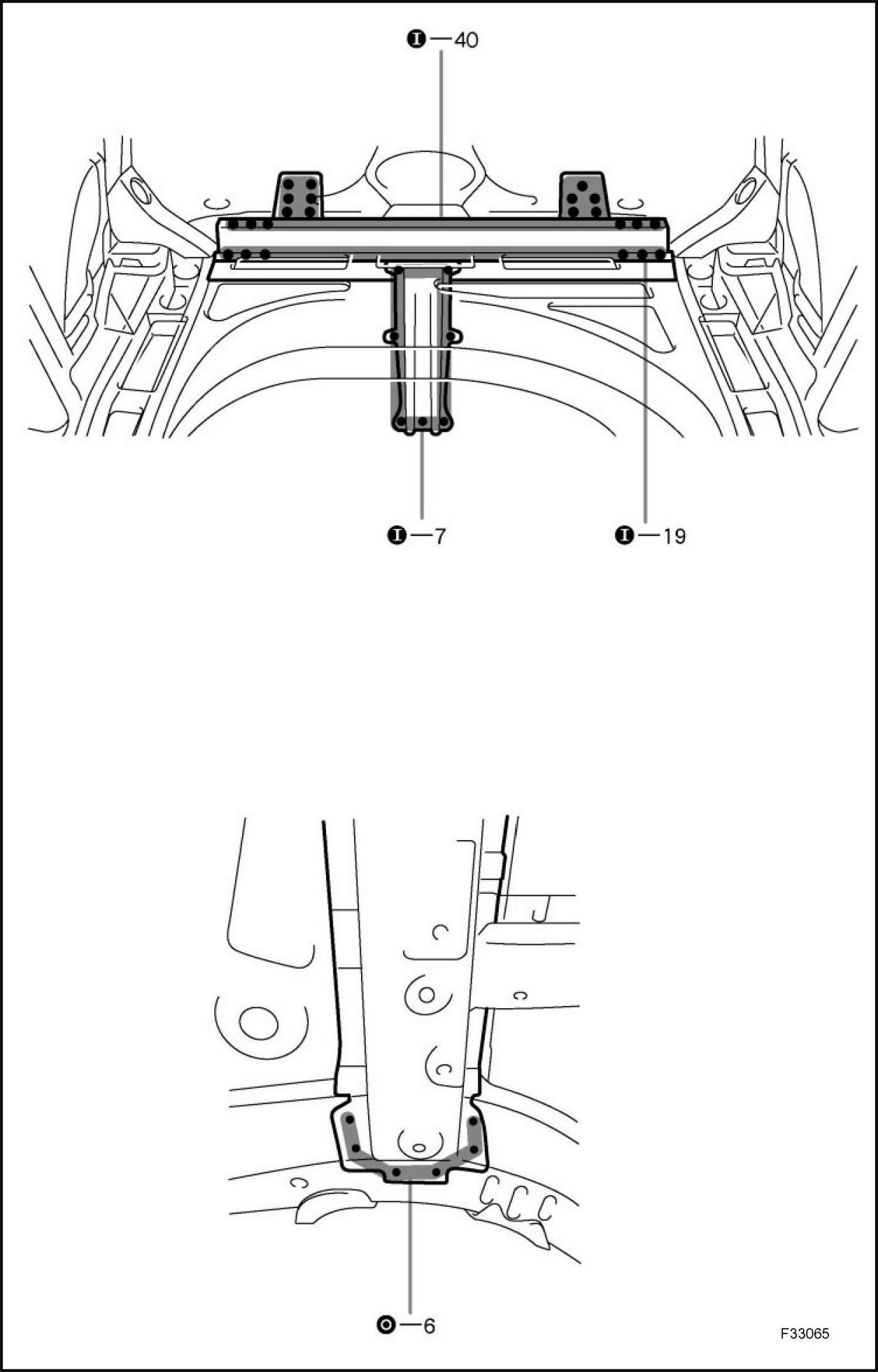

1. REMOVE REAR ABSORBER MOUNTING MEMBER

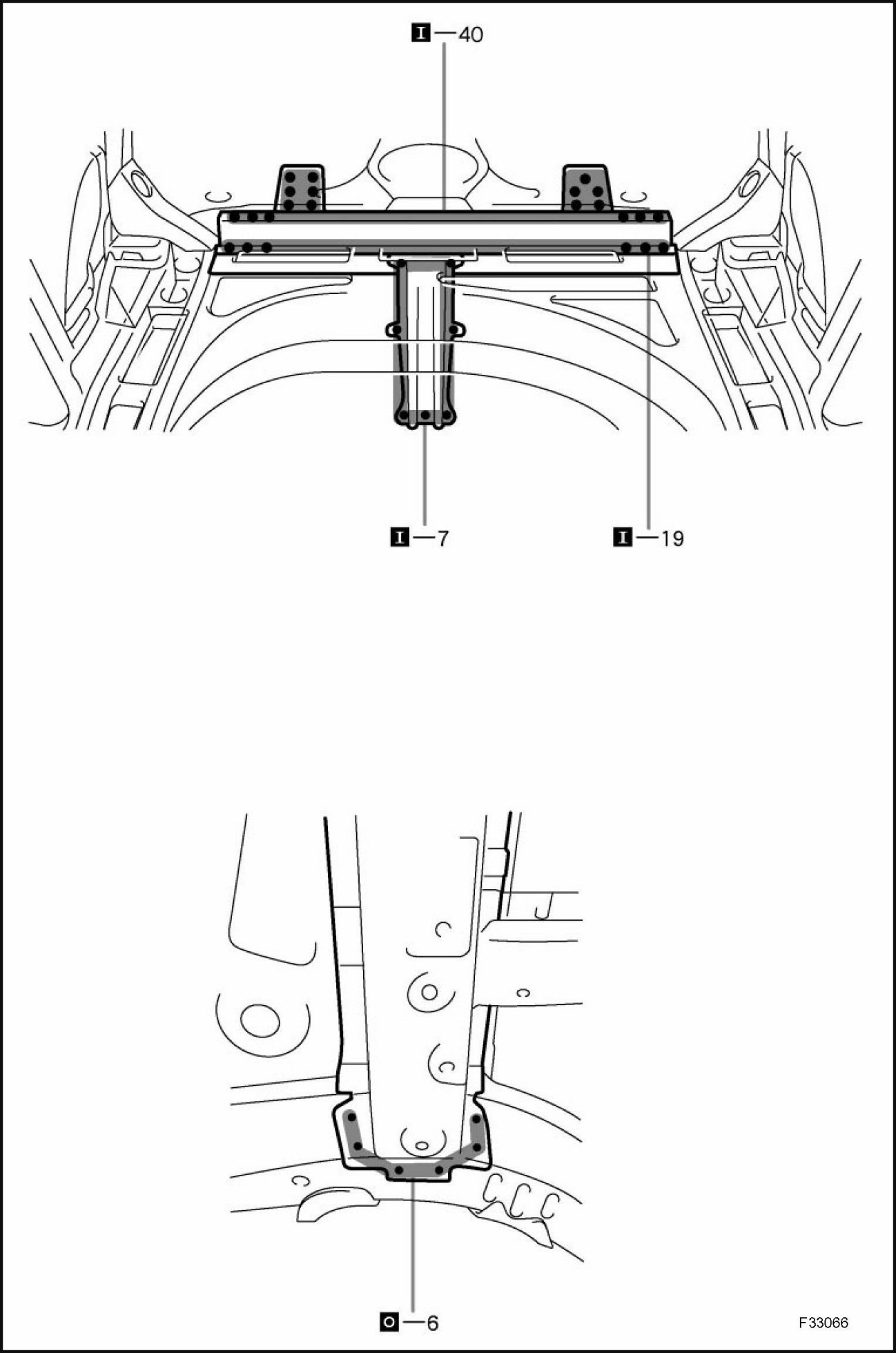

2. INSTALL REAR ABSORBER MOUNTING MEMBER
3. MEASURING THE UNDER BODY DIMENSIONS
4. APPLYING SEALER TO THE INSIDE OF THE VEHICLE
5. APPLYING SEALER TO THE REAR LUGGAGE COMPARTMENT
6. APPLYING UNDER COATING
7. APPLYING ANTI-RUST AGENT
a. After applying the top coat layer, apply the anti-rust agent to the inside of the necked section structural weld spots.
