Disposal

FRONT SUSPENSION BAR ASSEMBLY TOWER

Symbols




The given symbols are used in the welding diagrams to indicate cutting areas and the types of weld required.




Illustration of Weld Point Symbols







COMPONENTS

DISPOSAL





1. DISPOSE OF FRONT SUSPENSION BAR ASSEMBLY TOWER
a. Fully extend the front suspension bar assembly tower.

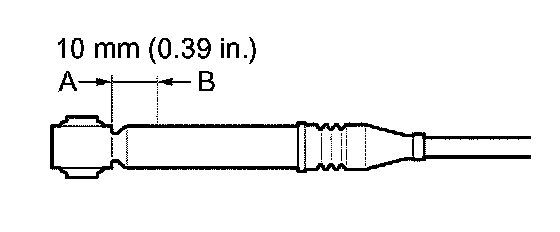

b. Using a drill, make a hole in the cylinder between A and B as shown in the illustration to discharge the gas inside.

CAUTION:
^ Be careful when drilling because shards of metal may fly about, so always use the proper safety equipment.
^ The gas is colorless, odorless and non-poisonous.
