Shift Interlock Cable: Service and Repair
FLOOR SHIFT PARKING LOCK CABLE ASSY (ATM)REPLACEMENT
1. PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE HORN BUTTON ASSY
5. REMOVE STEERING WHEEL ASSY
SST 09950-50013 (09951-0501O, 09952-05010, 0995-05020, 09954-05021)
6. REMOVE STEERING COLUMN COVER
7. REMOVE CONSOLE PANEL UPPER
8. REMOVE PARKING BRAKE HOLE COVER SUB-ASSY
9. REMOVE CONSOLE BOX CARPET
10. REMOVE CONSOLE BOX SUB-ASSY REAR
11. REMOVE FLOOR SHIFT PARKING LOCK CABLE ASSY

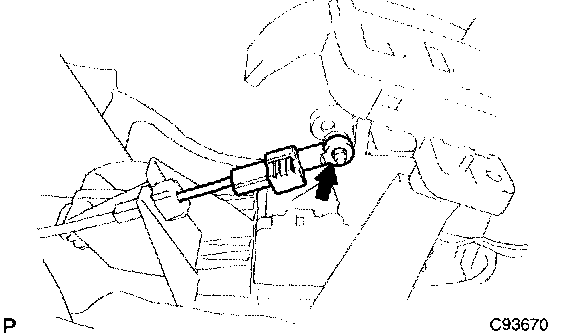

a. Remove the cable end from the lever pin of the floor shift assembly.

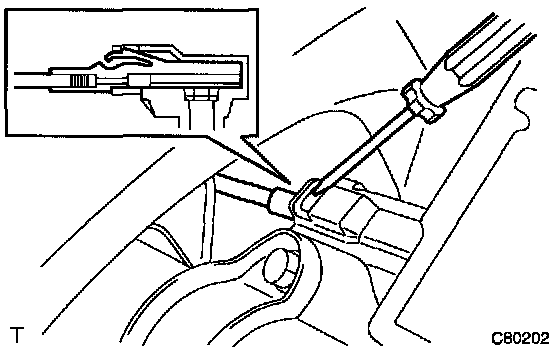

b. Using a screwdriver, disconnect the parking lock cable from the floor shift assembly.

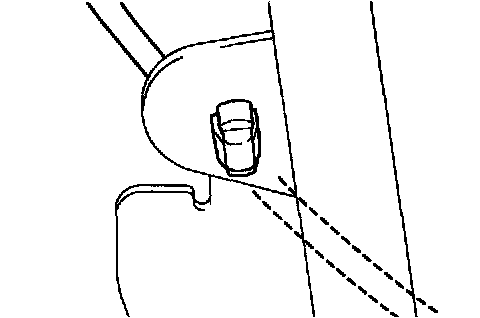

c. Disconnect the cable clamp.
d. Turn the ignition switch ACC or ON.

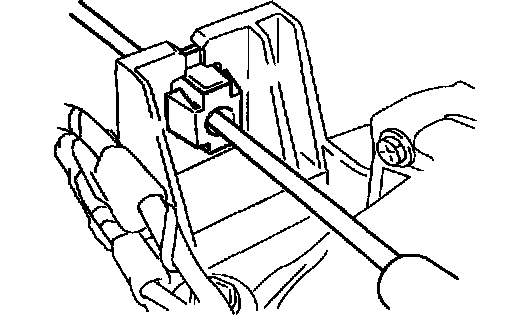

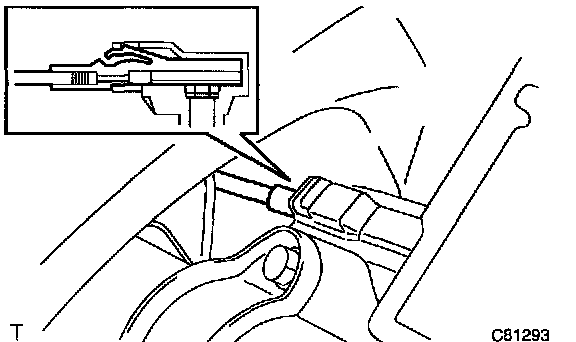

e. Using a screwdriver, remove the cable from the upper bracket.
HINT: Before disconnecting the cable, keep in mind each of the physical relationship between the connector and wire harness or other cables.
12. INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY
a. Turn the ignition switch ACC or ON.

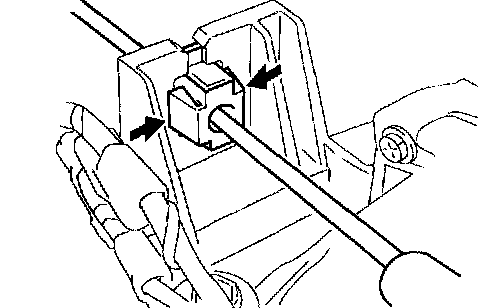

b. Install the cable to the upper bracket.
HINT: Connect the removed cable so that it will be the same physical relationship you kept in mind before its disconnection.

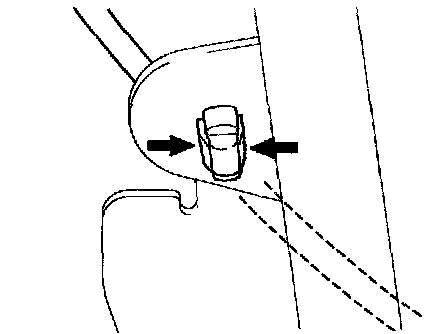

c. Connect the cable clamp.

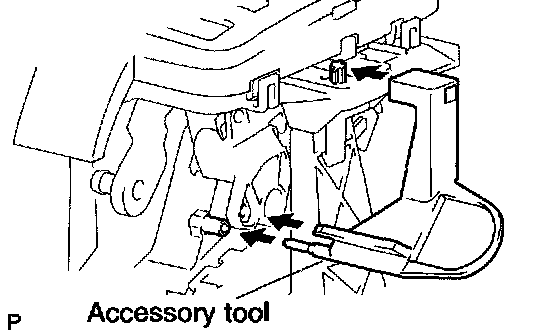

d. Set the accessory tool.
1. Shift the shift lever to N position and turn the ignition switch to ACC or ON.
2. Set the accessory tool to the shift lock control unit assy as shown in the illustration.
Accessory tool parts No.: 33693-02010

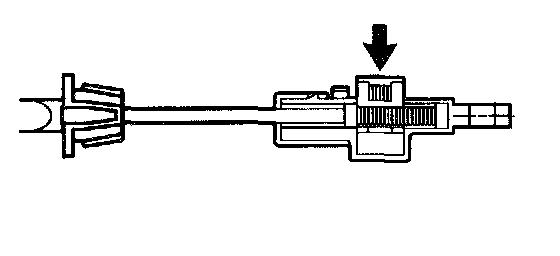

e. Using a screwdriver, unlock the claw of the lock key of automatic adjustment part.
f. Insert the slide cap into the through hole and install.
g. Insert the lever pin into the hole in the cable end.
HINT: Fit the claws securely.
h. Lock the lock key.
HINT: At this time, the shift lever should be in N position and the ignition key should be set to ACC or ON.
i. Remove the accessory tool.
Accessory tool parts No.: 33693-02010
13. INSTALL STEERING WHEEL ASSY
14. INSPECT STEERING WHEEL CENTER POINT
15. INSTALL HORN BUTTON ASSY
16. INSPECT SRS WARNING LIGHT
17. CHECK KEY INTERLOCK OPERATION
