Wiring Harness: Service and Repair

REPLACEMENT
1. REMOVE TRANSMISSION VALVE BODY ASSY





2. REMOVE TRANSMISSION WIRE

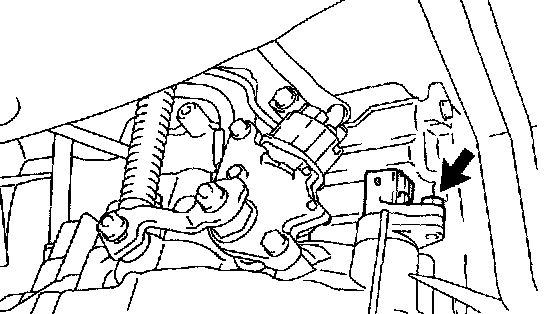

a. Disconnect the transmission wire connector.
b. Removal the bolt and transmission wire





3. INSTALL TRANSMISSION WIRE
a. Coat a O-ring with ATF.

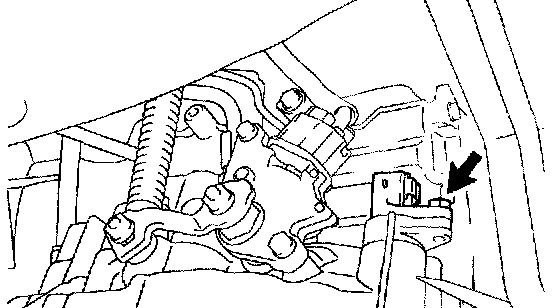

b. Install the transmission wire and bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Connect the transmission wire connector.
4. INSTALL TRANSMISSION VALVE BODY ASSY
