Component Tests and General Diagnostics
INSPECTION

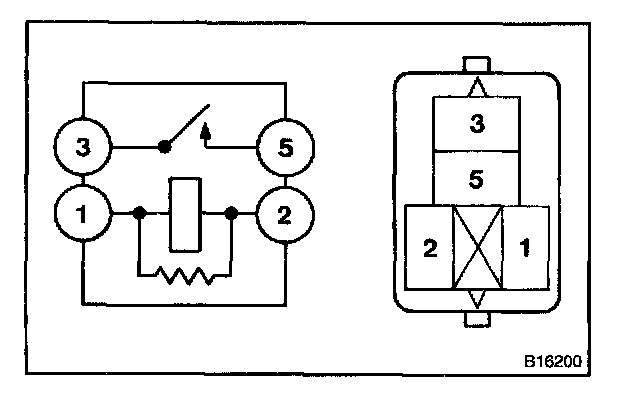

1. INSPECT DEFOGGER RELAY (Marking: DEF)
a. Remove the defogger relay from the instrument panel J/B.

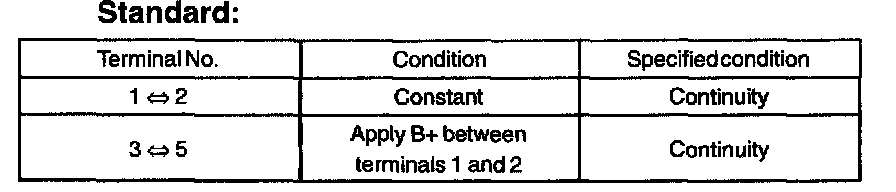

b. Inspect the defogger relay.
If the result is not as specified, replace the relay.
1. INSPECT DEFOGGER RELAY (Marking: DEF)
a. Remove the defogger relay from the instrument panel J/B.
b. Inspect the defogger relay.
If the result is not as specified, replace the relay.
