Power Window Relay: Testing and Inspection

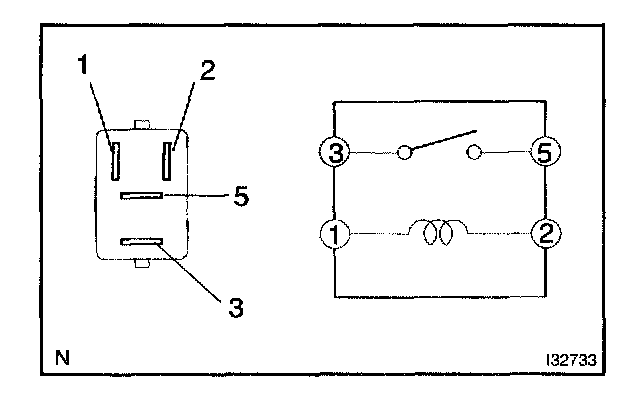

INSPECT POWER MAIN RELAY

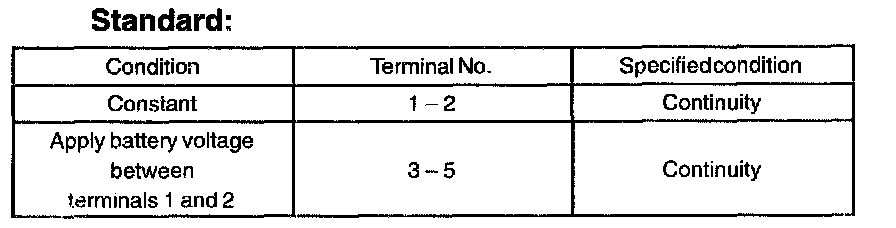

a. Inspect power main relay continuity.
If continuity is not as specified, replace the relay.
