C1249
C1249
DTC C1249 Stop Light Switch Circuit

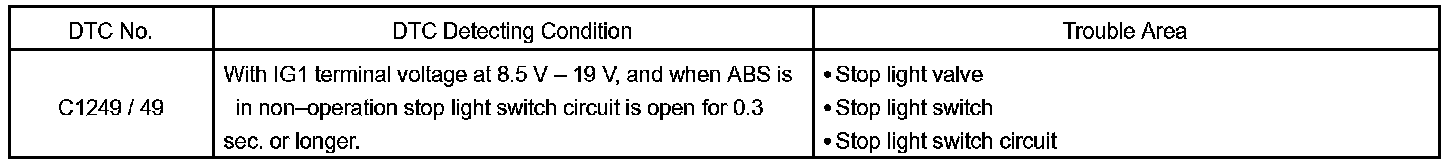

DTC Detection Condition:
CIRCUIT DESCRIPTION

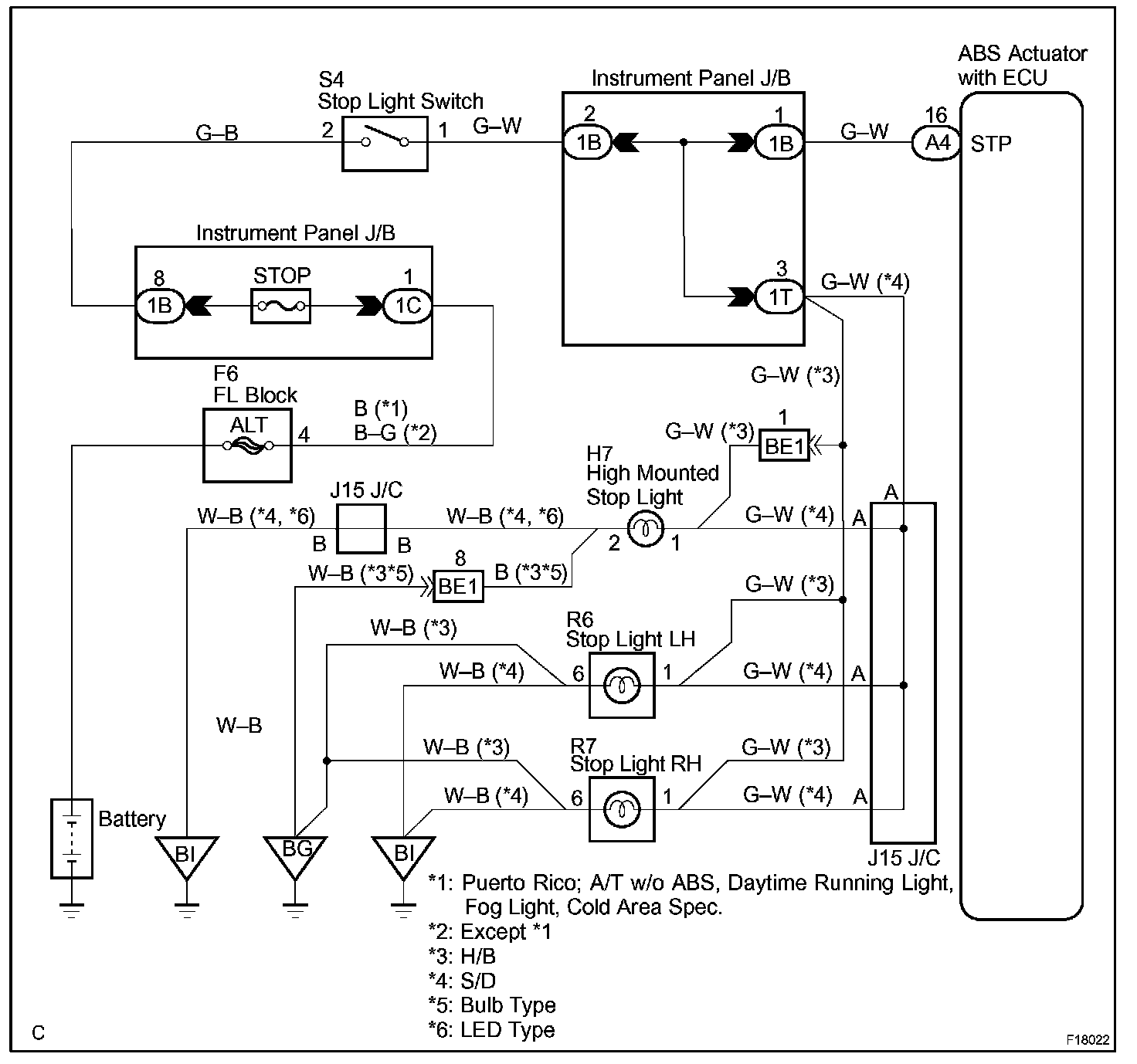

Wiring Diagram:

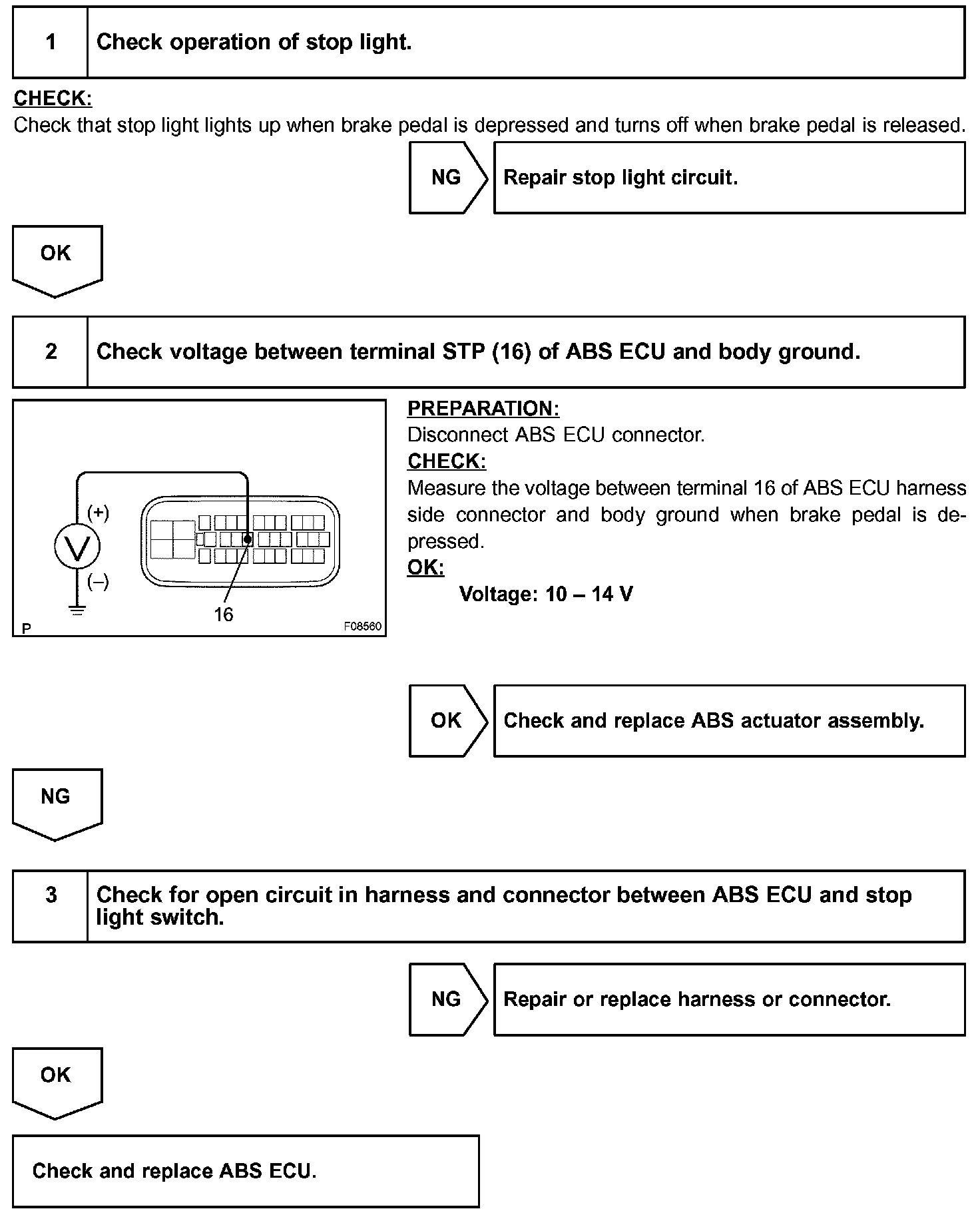

Step 1 - 3:
INSPECTION PROCEDURE
