ABS (Antilock Brake System)

DTC 41 IG Power Source Circuit

CIRCUIT DESCRIPTION

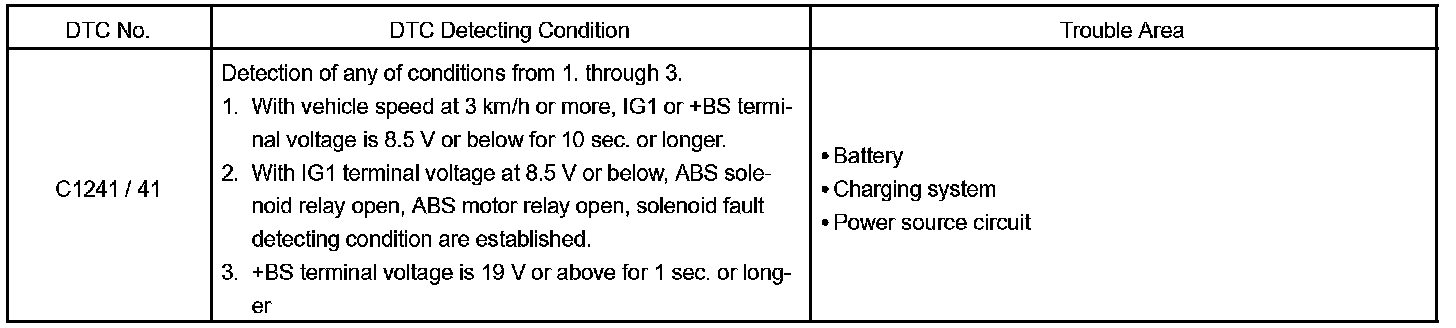

DTC Detection Condition:

This is the power source for the ECU, hence for the CPU, and ABS actuator.

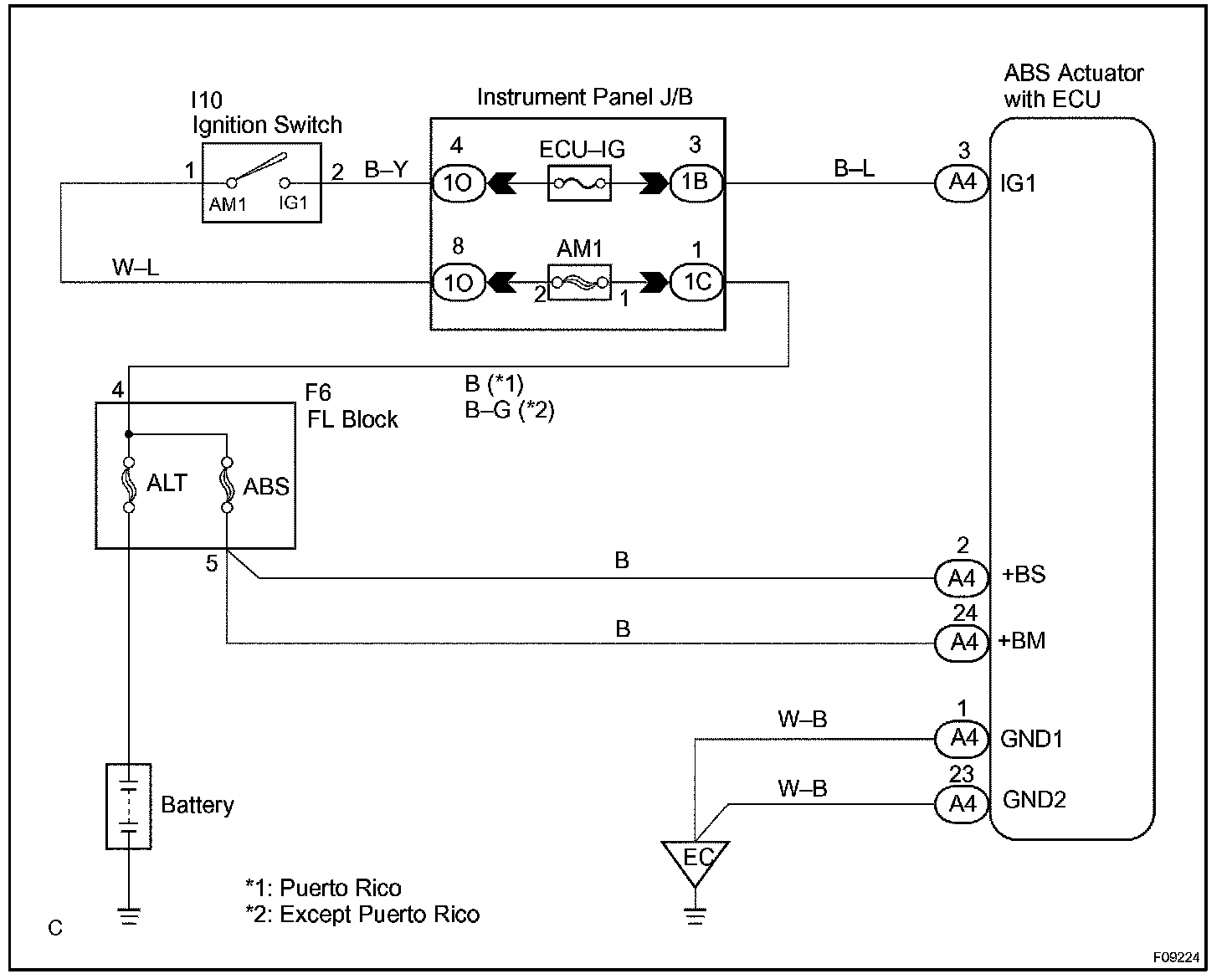

Wiring Diagram:

Step 1 - 3:

Step 3 (Continued) - 4:

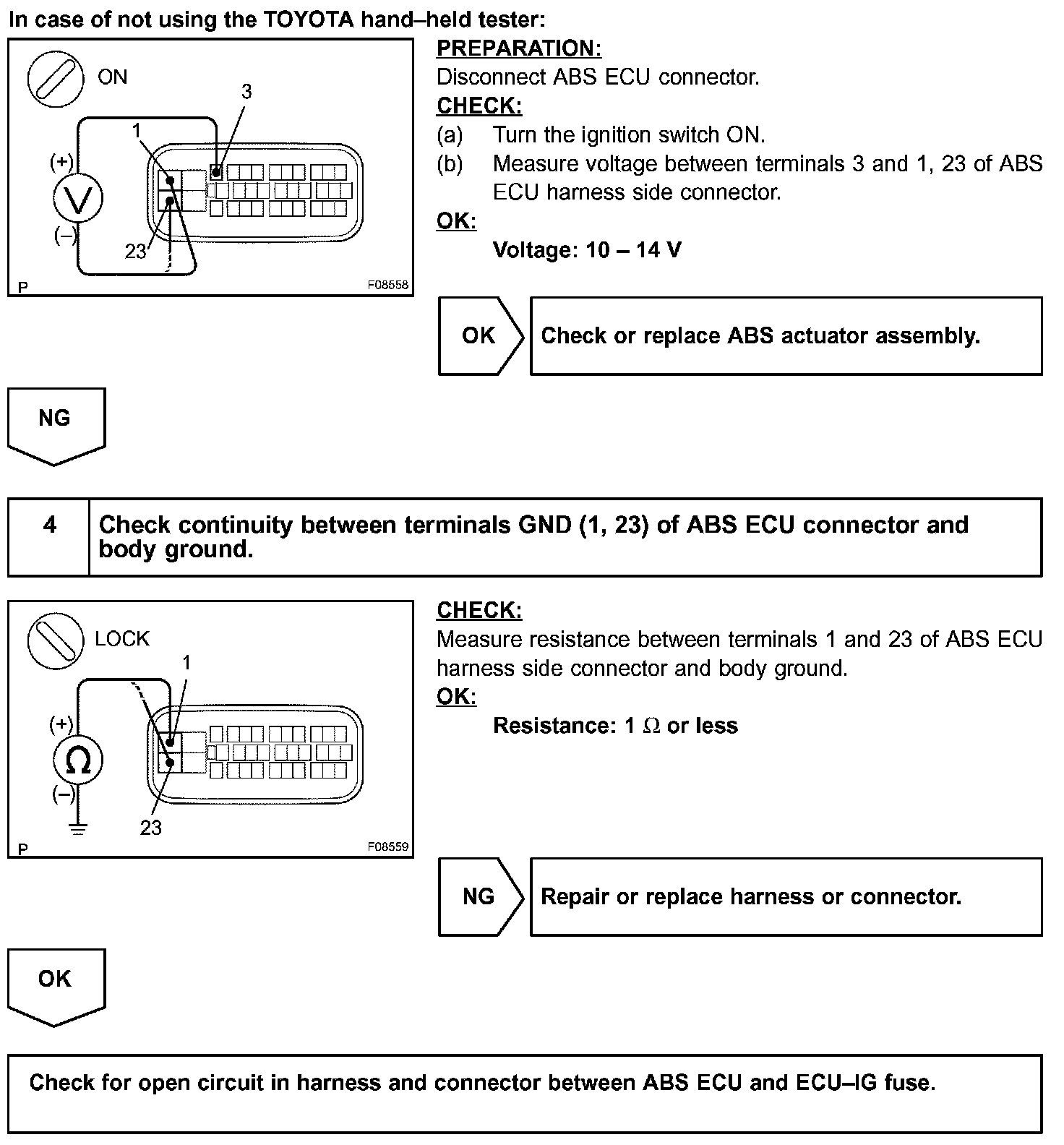

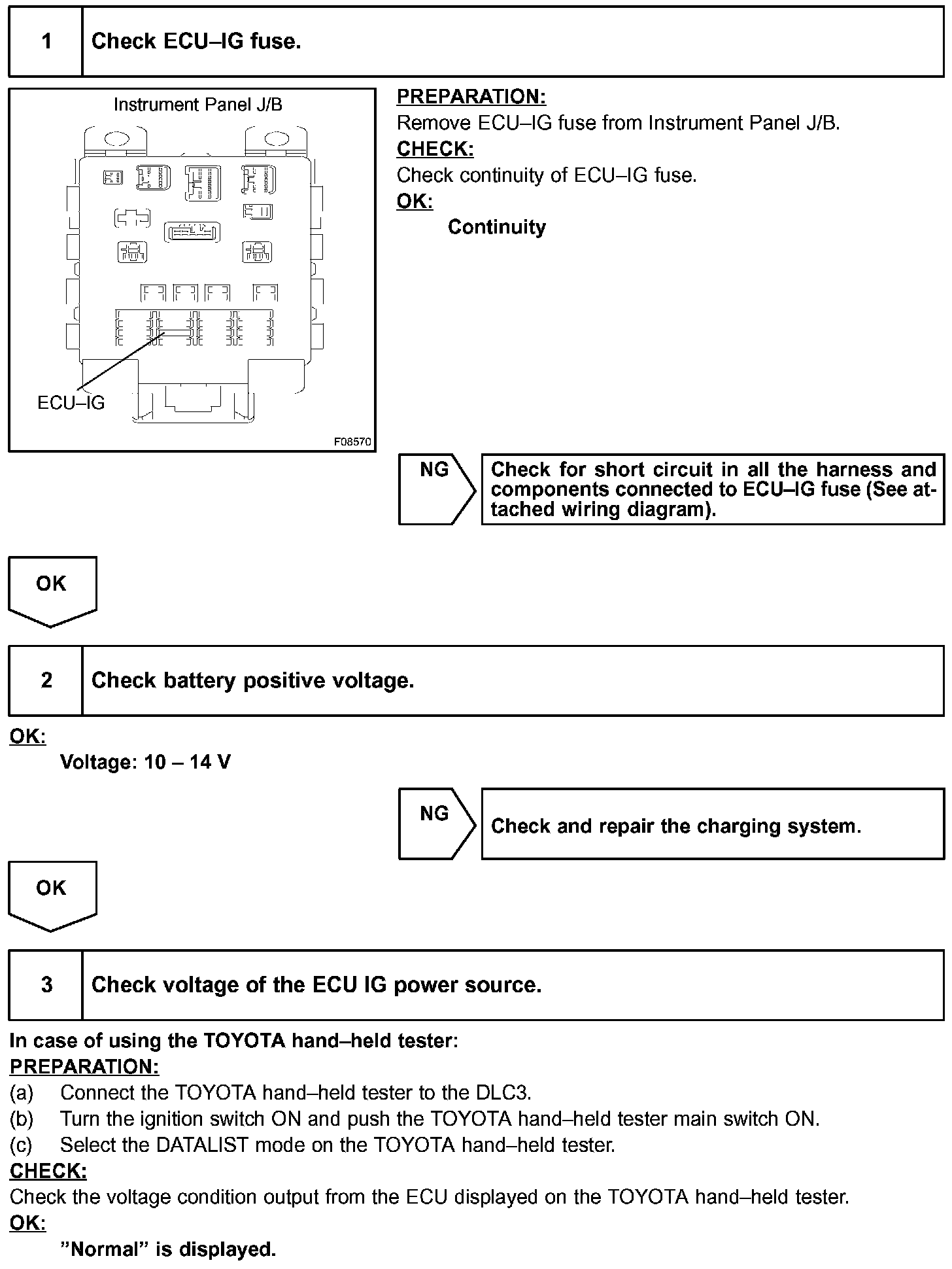

INSPECTION PROCEDURE
