DTC 51
>>
ABS (Antilock Brake System)
ABS (Antilock Brake System)
DTC 51 ABS Pump Motor Lock

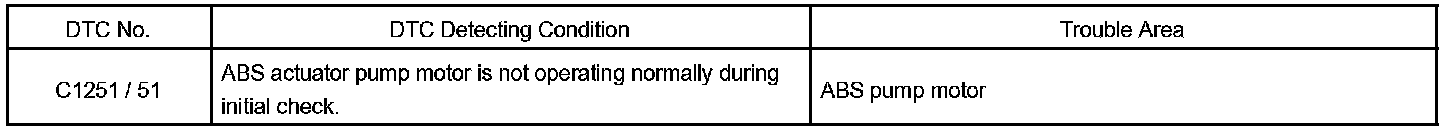

DTC Detection Condition:
CIRCUIT DESCRIPTION
Wiring Diagram:

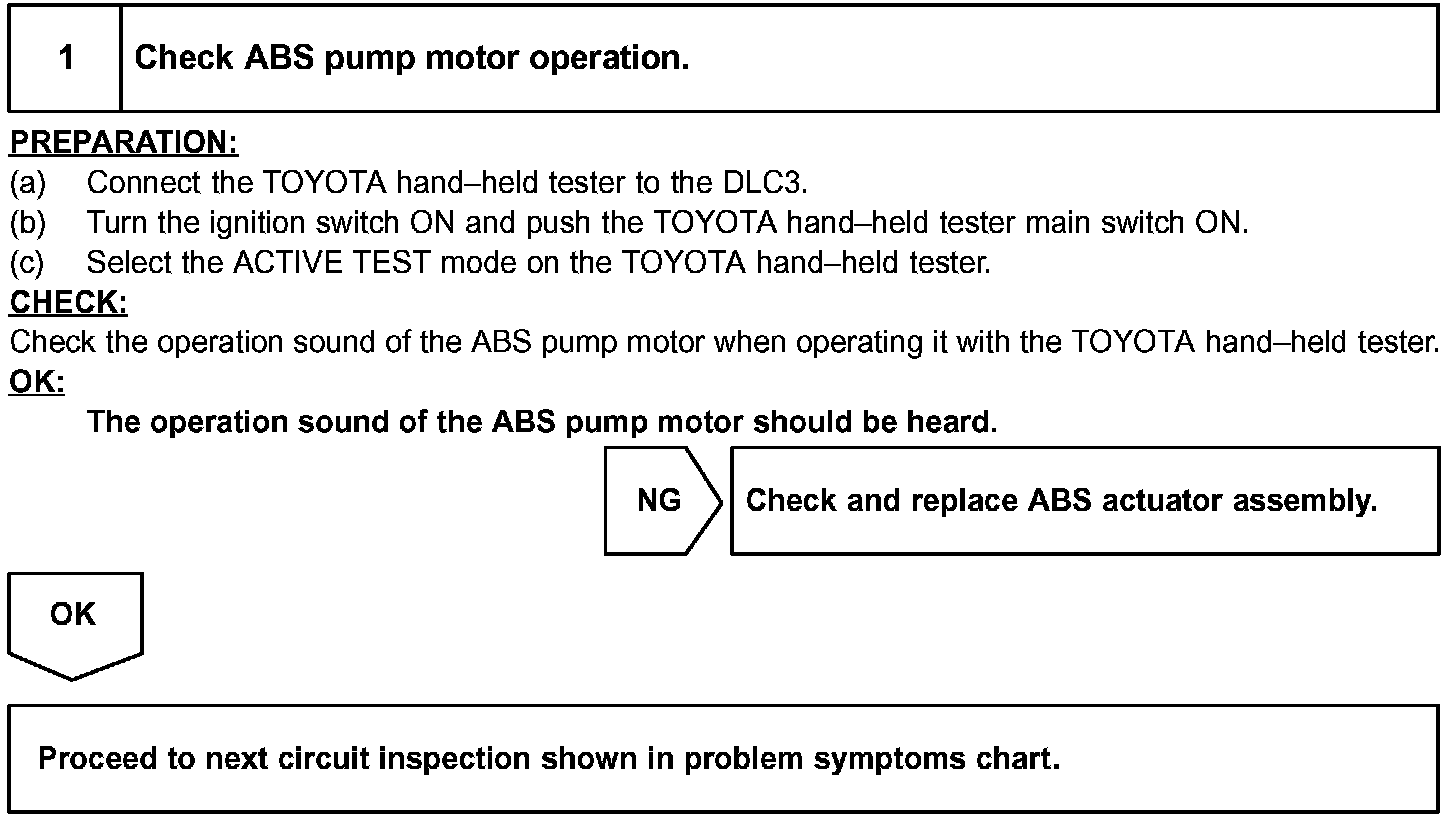

Step 1:
INSPECTION PROCEDURE
